Outdoor Fan / Fan Motor

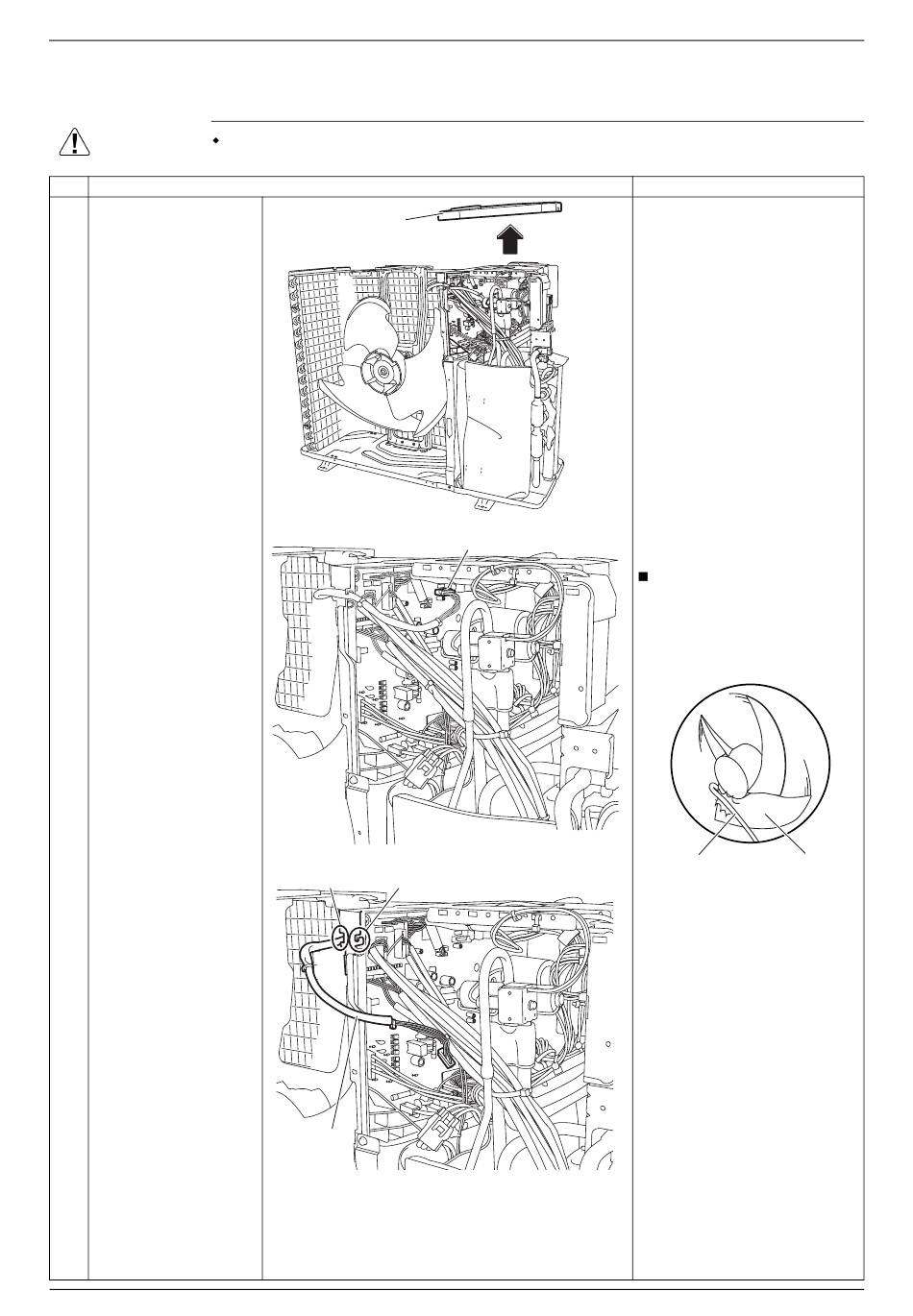

2. Outdoor Fan / Fan Motor
Warning
Step
1 Remove the drip proof
cover.
2 Disconnect the
connector [S70].
3 Release the fan motor
lead wire from the slit
and the groove.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Drip proof cover
Groove Slit
Fan motor
lead wire
(R22453)
[S70]
(R22454)
(R22455)
Si121561E
Points
[S70]: fan motor
When reassembling, put the
fan motor lead wire through
the back of the fan motor so
as not to be entangled with
the outdoor fan.
Lead wire Outdoor fan
Removal Procedure
(R3249)
