Daikin MKM24PV2S Service Manual page 18

Partition Plate / Sound Blankets

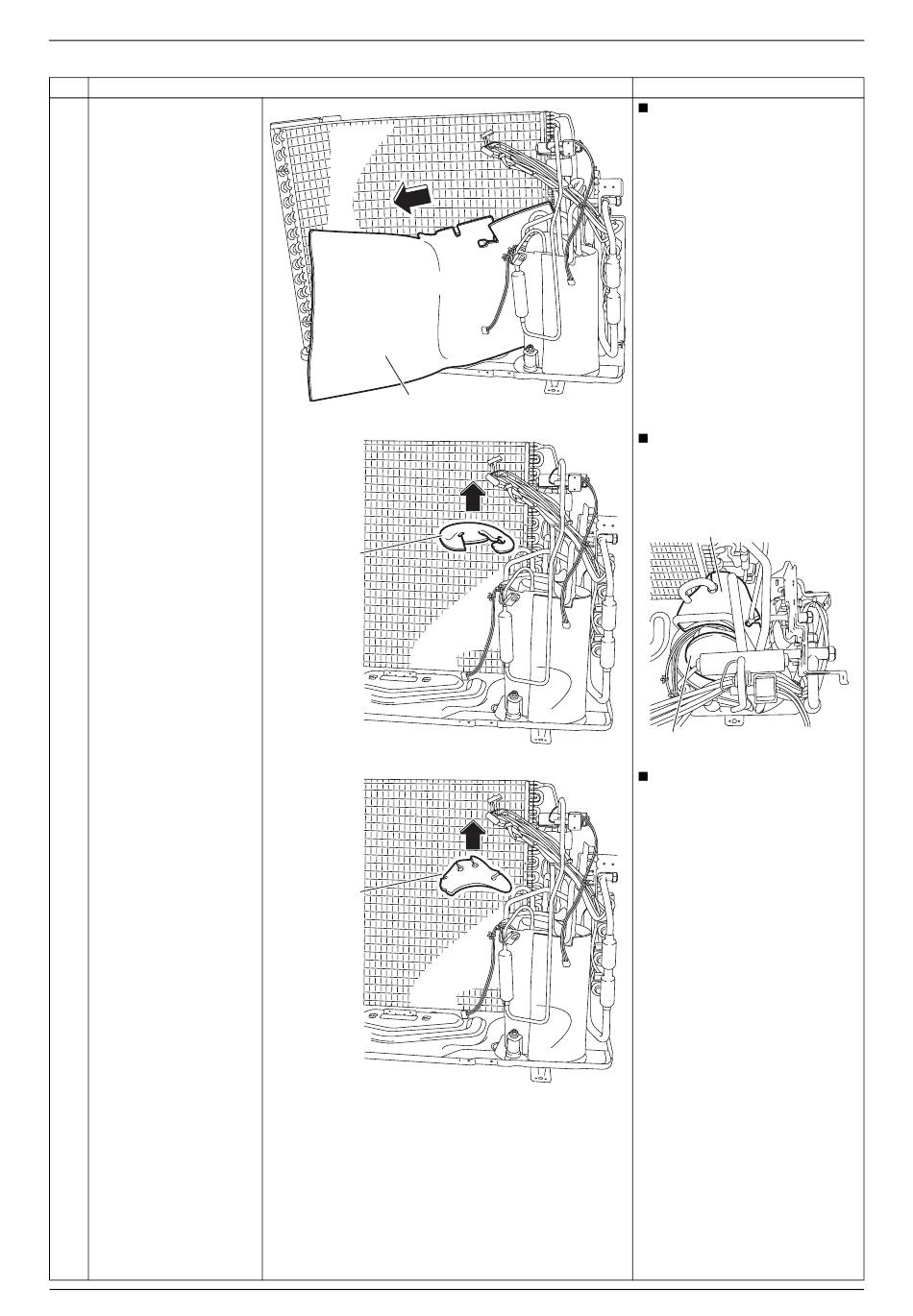

Step
3 Remove the sound
blanket (outer).
4 Remove the sound
blanket (top inner (1)).
5 Remove the sound
blanket (top inner (2)).
16
Procedure
Sound blanket (outer)
Sound blanket
(top inner (1))
Sound blanket
(top inner (2))
Points
Since the piping ports are
torn easily, remove the
sound blanket carefully.
(R22491)
When reassembling, put the
sound blanket (top inner (1))
and sound blanket (top inner
(2)) as the position below.
Sound blanket (top inner (2))
(R22492)
Sound blanket (top inner (1))
Some models do not have
the sound blanket (top inner
(2)).
(R22494)
Removal Procedure
Si121561E
(R22493)
