Outer Panels

1. Outer Panels
Warning

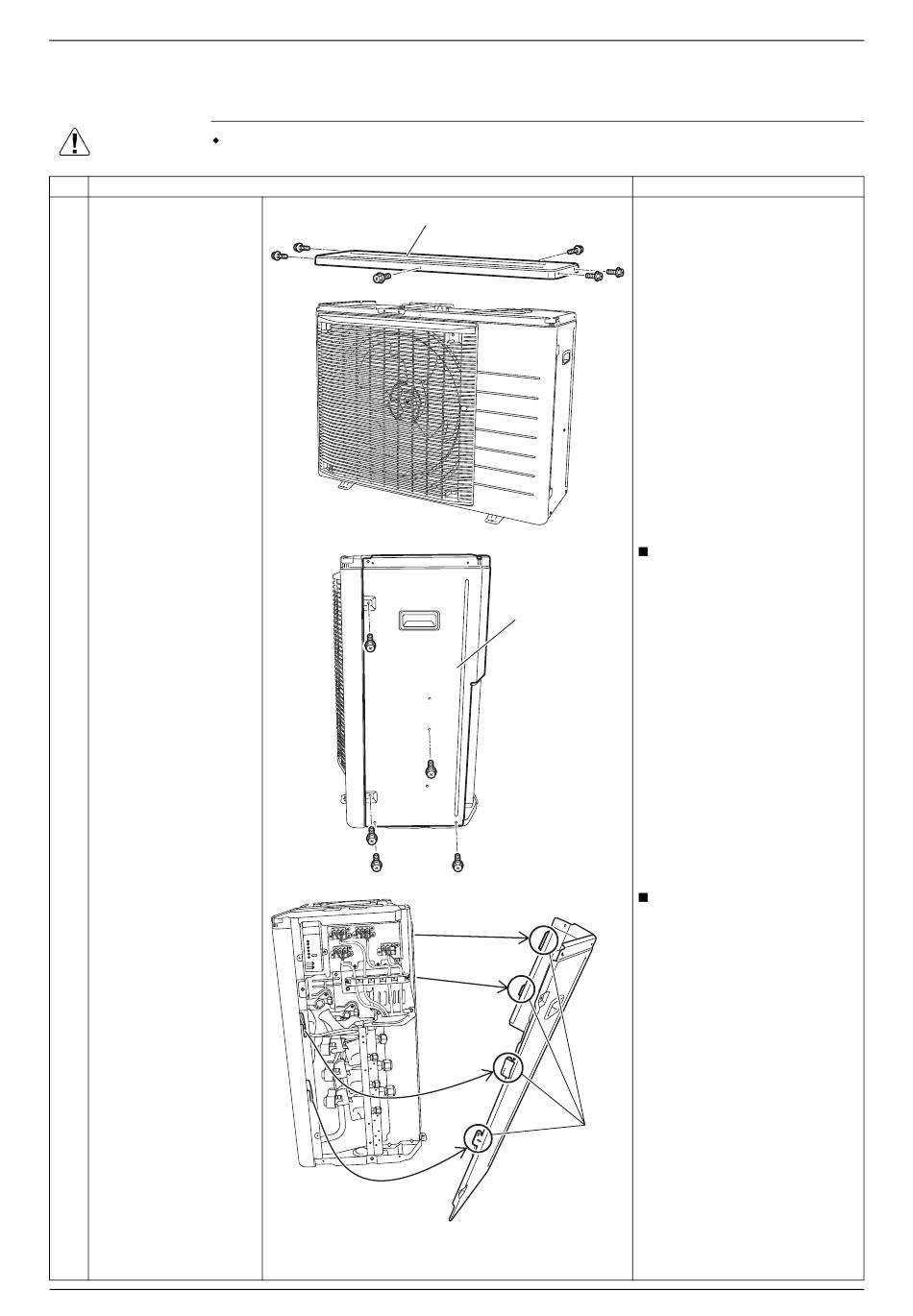

Step
1 Remove the 6 screws
and remove the top
panel.
2 Remove the 5 screws
of the right side panel.
3 Slide the right side
panel downward to
unfasten the 2 hooks on
the left of the right side
panel.
4 Unfasten the 2 hooks at
the back and remove
the right side panel.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Top panel
(R22446)
The right side panel can be
removed without removing
the top panel.
Right side panel
(R22447)
When reassembling, make
sure that the 4 hooks are
securely fastened.
Hook
(R22448)
Si121561E
Points
Removal Procedure
