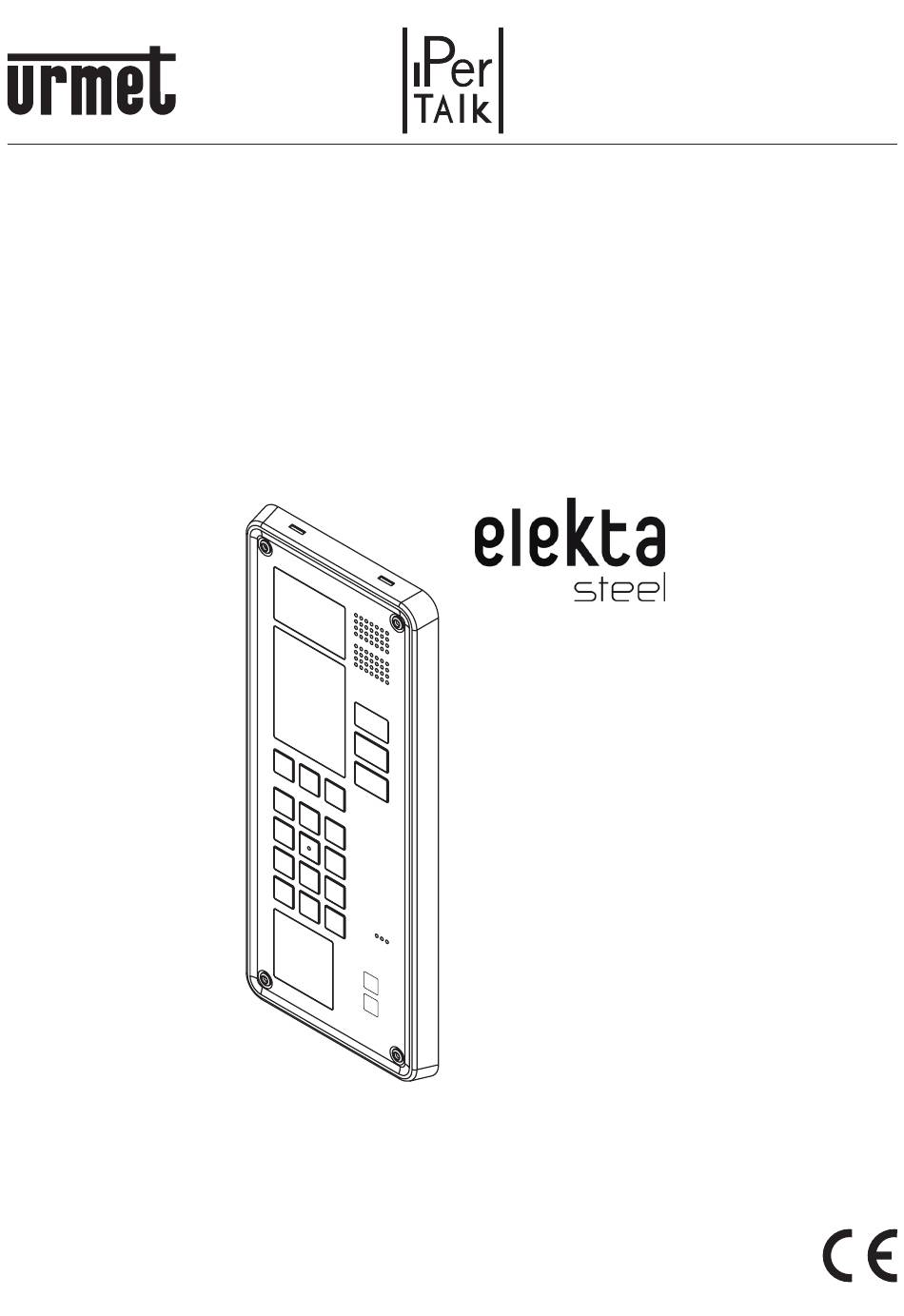

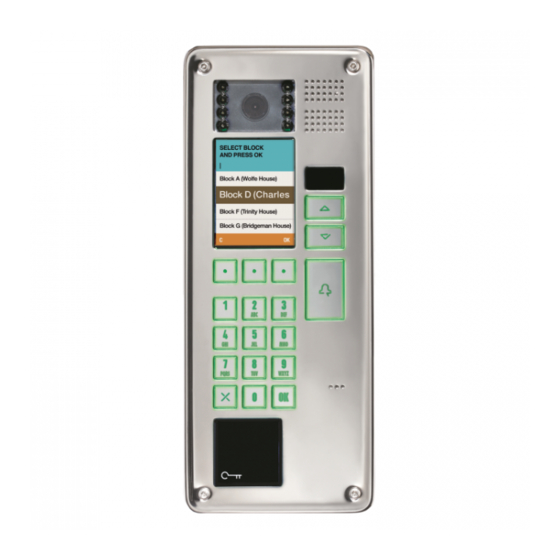

  • Page 1 Mod. 1375 DS 1375-024A LBT 20765 MODULO DI CHIAMATA ELEKTA STEEL ELEKTA STEEL CALL MODULE Sch./Ref. 1375/824...
  • Page 2: Installazione

    ITALIANO ATTENZIONE! Per il funzionamento del dispositivo è strettamente necessario che la versione del sistema iPerTAlk sia la 2.1.0 o superiore. 1 DESCRIZIONE Il dispositivo Sch. 1375/824 è un modulo di chiamata Mod. Elekta Steel antivandalo dedicato al sistema iPerTAlk. Le caratteristiche principali sono: •...
  • Page 3: Descrizione Dei Morsetti

    TAMPER A L T Viti speciali antifurto Viti M4 x 20 La parte evidenziata del magnete deve essere rivolta verso la parete della scatola (a contatto con il biadesivo). 2.1 DESCRIZIONE DEI MORSETTI Contatto comune del relè serratura Contatto normalmente chiuso del relè serratura Contatto normalmente aperto del relè...
  • Page 4: Caratteristiche Tecniche

    3 ISTRUZIONI DI CABLAGGIO • Intestare il cavo CAT5 su uno dei connettori RJ45 con logo Urmet. • Inserire il conduttore nella guida rispettando le colorazioni indicate Conduttore Colore cavo Conduttore Colore cavo n° n° Bianco-Arancione Bianco-Blu Arancione Verde Bianco-Verde Bianco-Marrone Marrone •...
  • Page 5: Collegamento E Configurazione

    5 COLLEGAMENTO E CONFIGURAZIONE In merito alla modalità di collegamento e del dispositivo Sch. 1375/824 attenersi alle indicazioni presenti nel manuale di installazione e di iPerTAlk (paragrafo relativo moduli di chiamata videocitofonici). 6 MANUTENZIONE Per mantenere nel tempo la qualità estetica della pulsantiera, se ne consiglia una pulizia periodica mediante prodotti adatti alle metalliche.
  • Page 6: Installation

    ENGLISH WARNING! For a functioning of the device it is strictly necessary that the iPerTAlk system version is 2.1.0 or higher. 1 DESCRIPTION The device Ref. 1375/824 is an Elekta Steel vandal-proof call module for iPerTAlk system. The main features are: •...
  • Page 7: Description Of Terminals

    TAMPER A L T Antitheft special screw Screw M4 x 20 The highlighted part of the magnet must face the wall of the box (in contact with the two-sided adhesive tape). 2.1 DESCRIPTION OF TERMINALS Common lock relay contact Normally closed lock relay contact Normally open lock relay contact Simultaneous activation Discharge lock terminals...
  • Page 8: Connection Instructions

    3 CONNECTION INSTRUCTIONS • Connect the CAT5 wire to one of the RJ45 connectors with Urmet logo: • Insert the wire in the guide respecting the colour coding shown (Standard T568B). Wire Wire colour Wire Wire colour White-Orange White-Blue Orange Green White-Green White-Brown...
  • Page 9: Wiring And Configuration

    5 WIRING AND CONFIGURATION For connecting and the device ref. 1375/824, follow the instructions provided in the iPerTAlk installation and manual (call module paragraph). 6 MAINTENANCE Clean regularly with products suitable for metallic surfaces to keep the push-button panel looking good in time.
  • Page 10 ITALIANO DIRETTIVA 2012/19/UE DEL PARLAMENTO EUROPEO E DEL CONSIGLIO del 4 luglio 2012 Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla della propria vita utile deve essere raccolto separatamente dagli altri L’utente dovrà, pertanto, conferire l’apparecchiatura giunta a vita agli idonei centri comunali di raccolta elettrotecnici ed elettronici.
  • Page 11 DS1375-024A...
  • Page 12 DS 1375-024A LBT 20765 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmet.com +39 011.24.00.300 - 323 MADE IN ITALY...
