External ip video station with 1 push button

Advertisement

Available languages

Available languages

Quick Links

Mod.
1375
DS 1375-017A
LBT 20340
POSTO ESTERNO VIDEO IP CON 1 TASTO
EXTERNAL IP VIDEO STATION WITH 1 PUSH BUTTON
Sch./Ref. 1375/821

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sinthesi steel 1375 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus sinthesi steel 1375

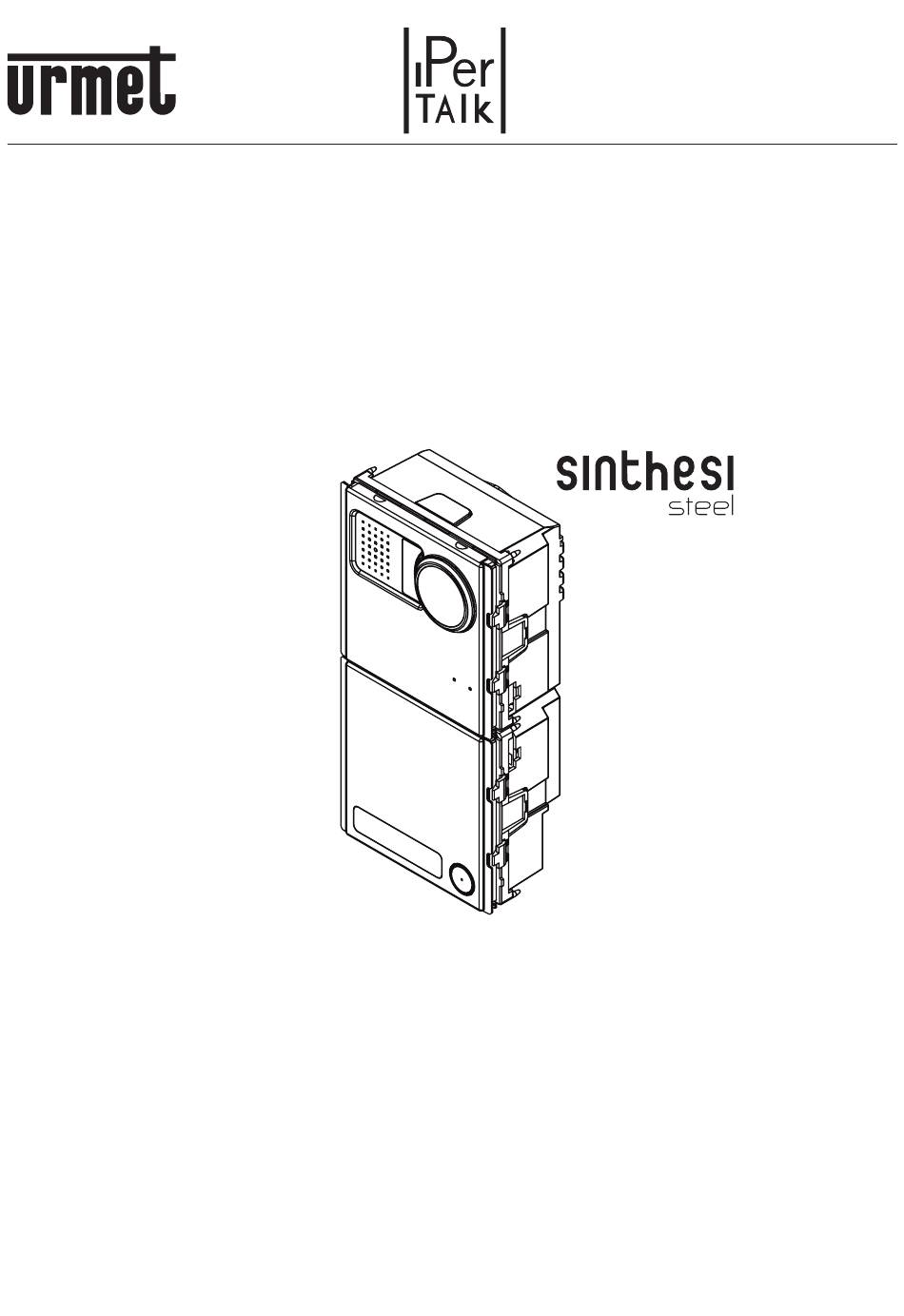

  • Page 1 Mod. 1375 DS 1375-017A LBT 20340 POSTO ESTERNO VIDEO IP CON 1 TASTO EXTERNAL IP VIDEO STATION WITH 1 PUSH BUTTON Sch./Ref. 1375/821...
  • Page 2 ITALIANO PRESTAZIONI Le prestazioni del posto esterno video IP sono le seguenti: • Realizzato su meccanica Sinthesi Steel a 2 moduli; • Pilotaggio dell’elettroserratura pedonale con scarica capacitiva ad impulso con bassa corrente di mantenimento (SE+; SE-); • Pilotaggio elettroserratura passo carraio con relé SE2 con contatti puliti (C-NC-NO); •...
  • Page 3 DIGITAL CONNECTOR connettore per modulo con messaggi vocali e connettore per moduli led Sch.1158/47 tasti con espansore Sch. 1158/82 -/84 Sch.1158/42 Sch.1145/52 Sch.1158/43 Sch.1145/53 Sch.1158/44 Sch.1145/54 Cartellino provvisorio trasparente. Cartellino definitivo con incisione. DS1375-017A...
  • Page 4 DESCRIZIONE MORSETTI Morsetti elettroserratura a scarica con corrente di mantenimento per eventuale relé Contatto comune del relè serratura Contatto normalmente chiuso del relè serratura Contatto normalmente aperto del relè serratura Morsetti per alimentazione ausiliaria Morsetti per illuminazione di eventuali cartellini portanome Morsetti pulsante androne per pilotaggio e serratura relé...
  • Page 5 CONNESSIONE A MODULO TASTI CON ESPANSORE Sch. 1158/82 o Sch. 1158/84 Nel caso in cui si voglia collegare il posto esterno video IP a un modulo tasti con espansore Sch. 1158/82 o Sch. 1158/84 occorre attuare i seguenti collegamenti: 1158/84 Assicurarsi di proteggere il connettore OUT non utilizzato tramite il tappino fornito a corredo.
  • Page 6: Caratteristiche Tecniche

    CARATTERISTICHE TECNICHE TENSIONE DI ALIMENTAZIONE E ASSORBIMENTO SUI MORSETTI V+ V- Tensione di alimentazione: ......................44 ÷ 57 V Assorbimento in videochiamata (*) @48 V: ...................170 mA Assorbimento a riposo (*) @48 V: ......................120 mA Temperatura di funzionamento: .................... -10 °C ÷ +50 °C (*) Comprensivo dell’assorbimento di 4 cartellini portanome esterni.
  • Page 7: Panel Installation

    ENGLISH PERFORMANCE The features of the IP video door phone on are the following: • Designed on 2-module Sinthesi Steel style. • Management of pedestrian door electric lock with pulse capacitive discharge and with low holding current (SE+; SE-). • Management of driveway electric lock with relay SE2 with clean contacts (C-NC-NO).
  • Page 8 DIGITAL CONNECTOR Connector for module connector for with voice messages button modules and led Ref. 1158/47 with expansion Ref. 1158/82 - /84 Ref.1158/42 Ref.1145/52 Ref.1158/43 Ref.1145/53 Ref.1158/44 Ref.1145/54 Dummy transparent name holder. Final engraved name holder. DS1375-017A...
  • Page 9: Description Of Terminals

    DESCRIPTION OF TERMINALS Terminal pins of discharge electric lock with holding current for relay, if present Common lock relay contact Normally closed lock relay contact Normally open lock relay contact Auxiliary power terminals Terminal pins for lighting of name holder tags, if necessary Hall button terminals for operating lock relay Do not use Reference for external camera signal...
  • Page 10 CONNECTION TO BUTTON MODULE WITH EXPANSION UNIT Ref. 1158/82 or Ref. 1158/84 Use the following connections to connect the IP video door phone to button modules with expansion unit Ref. 1158/82 and Ref.1158/84: 1158/84 Be sure to protect the unused OUT connector with the cap provided. A 20 cm-long cable provided with the outdoor IP video station For a correct installation it is necessary to respect the installation restriction of a maximum of 1 expansion unit Ref.
  • Page 11: Technical Specifications

    TECHNICAL SPECIFICATIONS POWER VOLTAGE AND CONSUMPTION ON TERMINALS V+ V- Power voltage: ..........................44 ÷ 57 V Current consumption during video call (*) @48 V: ................170 mA Current consumption in standby (*) @48 V: ..................120 mA Working temperature range: ....................-10 °C ÷ +50 °C (*) Current consumption of 4 external name holder tags is included.
