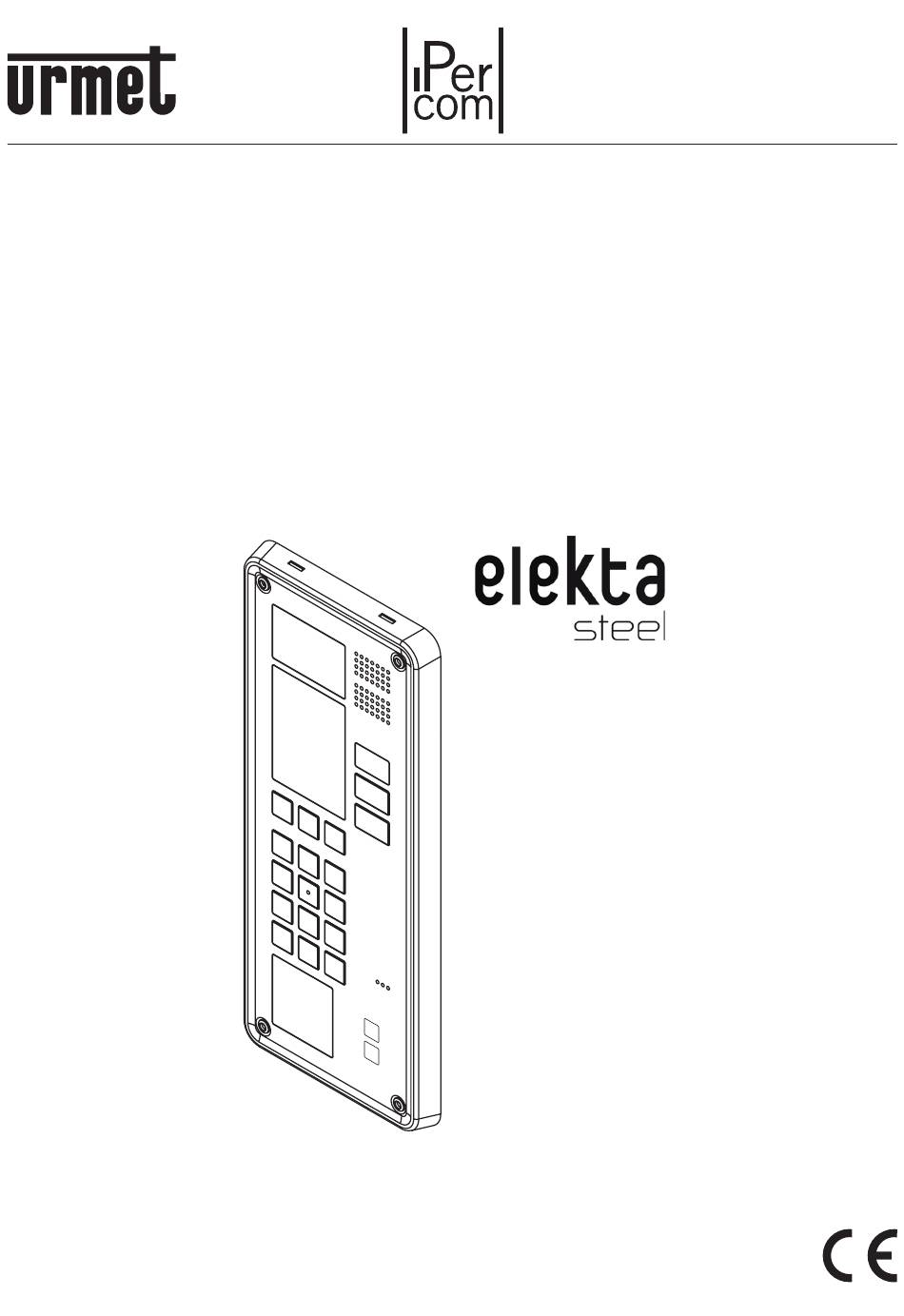

- Page 1 Mod. 1060 DS 1060-119A LBT 20376 MODULO DI CHIAMATA ELEKTA STEEL ELEKTA STEEL CALL MODULE MODULE D’APPEL ELEKTA STEEL MÓDULO DE LLAMADA ELEKTA STEEL RUFMODUL ELEKTA STEEL Sch./Ref. 1060/18...
- Page 2 ENGLISH 1 DESCRIPTION The device Ref. 1060/18 is an Elekta Steel vandal-proof call module for Ipercom serverless system. The main features are: • Signal management using 3.5” graphic colour display and evolved graphic user interface (GUI). • Simultaneous lock with pulse capacitance discharge (SE+; SE-) and no-voltage contact relay (C-NC- NO) operation.
- Page 3 TAMPER A L T Antitheft special screw Screw M4 x 20 The highlighted part of the magnet must face the wall of the box (in contact with the two-sided adhesive tape). 2.1 DESCRIPTION OF TERMINALS Common lock relay contact Normally closed lock relay contact Normally open lock relay contact Simultaneous activation Discharge lock terminals...
- Page 4 3 CONNECTION INSTRUCTIONS Refer to the instructions contained in the system manual for wiring, maximum distances and confi guration operations. 3.1 CONNECTOR AND WIRING WITH CAT5 WIRE Use Urmet RJ45 connector kit for connections (product on sale until stocks last). Connect the CAT5 wire to one of the RJ45 connectors with Urmet logo: •...
- Page 5 5 WIRING DIAGRAM For connecting the device ref. 1060/18, follow the instructions provided in the Ipercom system (system installation paragraph). 6 SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, URMET S.p.A. declares that the radio equipment type: ELEKTA STEEL CALL MODULE Ref. 1060/18 is in compliance with Directive 2014/53/EU.
- Page 6 DS 1060-119A LBT 20376 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Telef. +39 011.24.00.000 (RIC. AUT.) e-mail: info@urmet.com +39 011.24.00.300 - 323 MADE IN ITALY...
