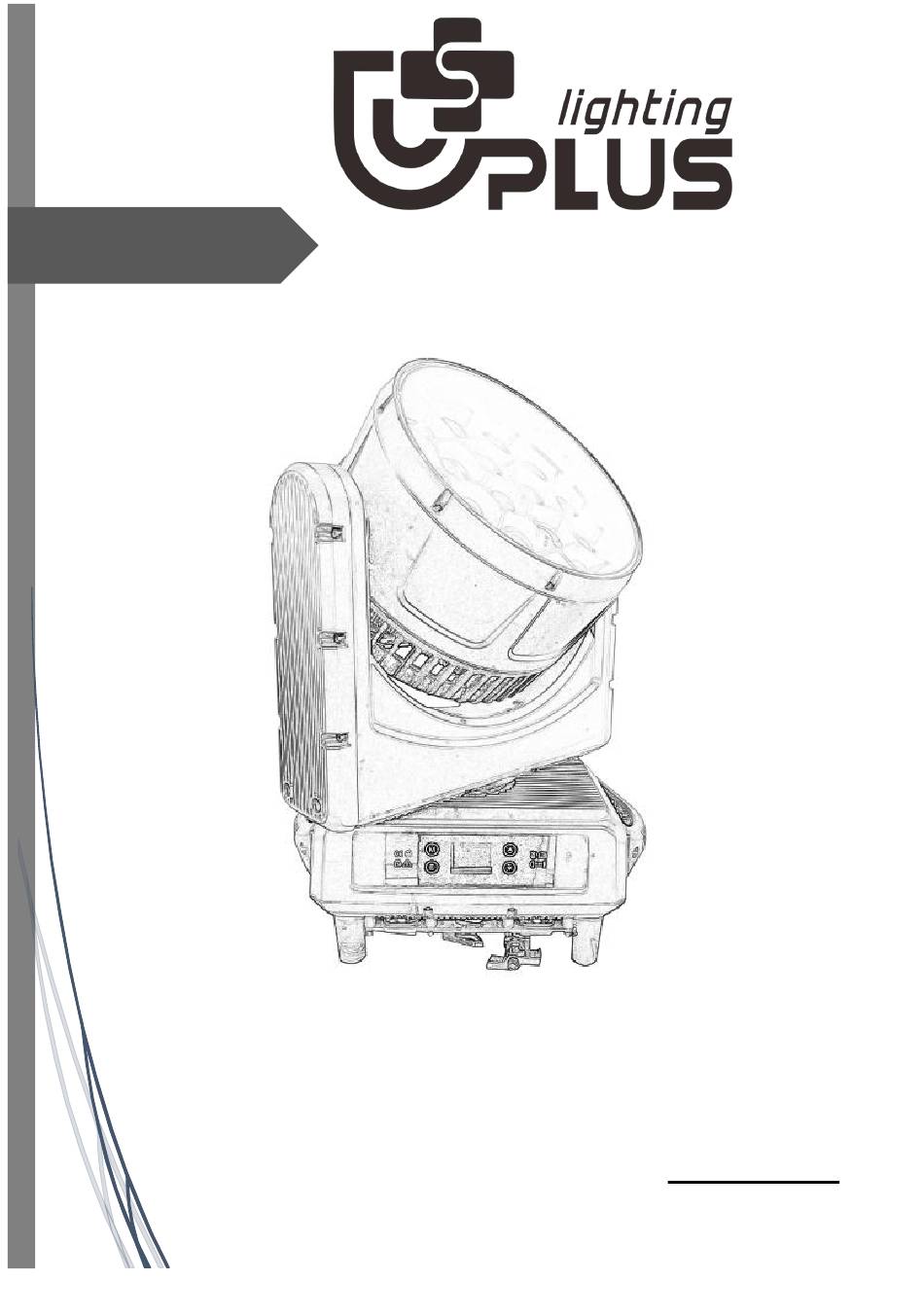

  • Page 1 User manual IP-1940B Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3 Technical Specifications…………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-6 DMX Channels …………………………………………………………………………………6-14 Dimension …………………………………………………………………………………………14 Trouble Shooting…………………………………………………………………………………15 Fixture Cleaning………………………………………………………… ………………………15 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...

  • Page 4: Technical Specifications

    2.Technical Specifications Voltage: AC100V～240V 50-60HZ Rated Power: 760W LED Source: 19*40W RGBW 4-in-1 LED Zoom angle: 4°-57° Wash+beam+bee eye 3in1 effect Strobe: 0-25Hz Control: DMX512/Auto Run/Master-Slave/Music DMX Channels: 21CH/23CH/35CH/78CH/92CH/97CH/99CH channel Dimmer: 0-100% linear dimmer Pan: 540°+16 bit fine Tilt: 270°+16 bit fine Display: LCD colorful display IP: IP66 Dimension: 388*240*490mm...

  • Page 5: Control Menu

    3.Control Menu Main Menu Second Third Fourth DMX Address 000 - 512 DMX Mode 21CH/23CH/35CH/78CH/92CH/97CH/99CH Run Mode DMX / Host / Sound Pan Invert Close / Open Fixture Tilt Invert Close / Open No DMX Signal Clear / Hold Fan Control Auto / Silent/ High 000 - 255 Pan Fine...

  • Page 6: Dmx Channels

    Blue 000 - 255 White 000 - 255 frequency 600HZ/1200HZ/2000HZ/4000HZ/6000HZ/25000 selection Motor Reset Cancel / Run Fixture Reset Factory Cancel / Run Language CN / EN Display Flip Normal / Reverse Display Display Mode 60s / Show Logo Setting 4.DMX Channels 21CH Function Value...
  • Page 7 X- axis fine 0-255 X-axis fine adjustment adjustment Y- axis control 0-255 Y- axis control Y- axis fine 0-255 Y- axis fine adjustment adjustment Function 0-255 Empty (no function) 0-250 No function Reset 251-255 Wait 5 seconds for automatic reset Focusing 0-255 Focus control...
  • Page 8 blue dark to bright Background color 0-255 1-100% background blue brightness adjustment , from White dark to bright 0-250 Invalid Reset 251-255 Wait 5 seconds for automatic reset 35CH Function Value Description 0-255 Red 0-100% brightness adjustment, from dark to bright Red fine tuning 0-255 Red fine tuning...
  • Page 9 Shape Close 0-255 Shape Close Shape R 0-255 Red Shape Shape G 0-255 Green Shape Shape B 0-255 Blue Shapes Shape W 0-255 White Shape Shape brightness 0-255 Shape dimmer 0-100% adjustment Background 0-255 Background dimmer 0-100% brightness adjustment Shape Change 0-255 Shape Change Shape Offset...
  • Page 10 0-250 No function Reset 251-25 Wait 5 seconds for automatic reset focusing 0-255 Focus control 0-127 0 to 60 degrees Rotation 128-19 Rotate clockwise from slow to fast 192-25 Counterclockwise rotation from slow to fast Red Dimmer 1 0-255 LED1 Red Dimmer Green Dimmer 1 0-255 LED1 Green Dimmer...
  • Page 11 adjustment Y- axis control 0-255 Y- axis control 0-255 Y- axis fine Y- axis fine adjustment adjustment Function 0-255 Empty (no function) 0-250 No function Reset 251-255 Wait 5 seconds for automatic reset focusing 0-255 Focus control 0-127 0 to 60 degrees Rotation 128-191 Rotate clockwise from slow to fast...
  • Page 12 97CH Function Value Description 0-255 Red 0-100% brightness adjustment, from dark to bright Red fine tuning 0-255 Red fine tuning green 0-255 Green 0-100% brightness adjustment, from dark to bright Green fine tuning 0-255 Green fine tuning blue 0-255 Blue 0-100% brightness adjustment, from dark to bright Blue Fine Tuning 0-255 Blue Fine Tuning...
  • Page 13 99CH Function Value Description X-axis control 0-255 X-axis control X-axis fine 0-255 X-axis fine adjustment adjustment Y-axis control 0-255 Y- axis control Y-axis fine 0-255 Y- axis fine adjustment adjustment XY axis speed 0-255 Speed from slow to fast focusing 0-255 Focus control 0-127...

  • Page 14: Dimension

    Red Dimmer 19 0-255 LED19 Red Dimmer Green Dimmer 19 0-255 LED19 Green Dimmer Blue Dimmer 19 0-255 LED19 blue dimmer White dimmer 19 0-255 LED19 White Dimmer 5. Dimension...

  • Page 15: Trouble Shooting

    6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
