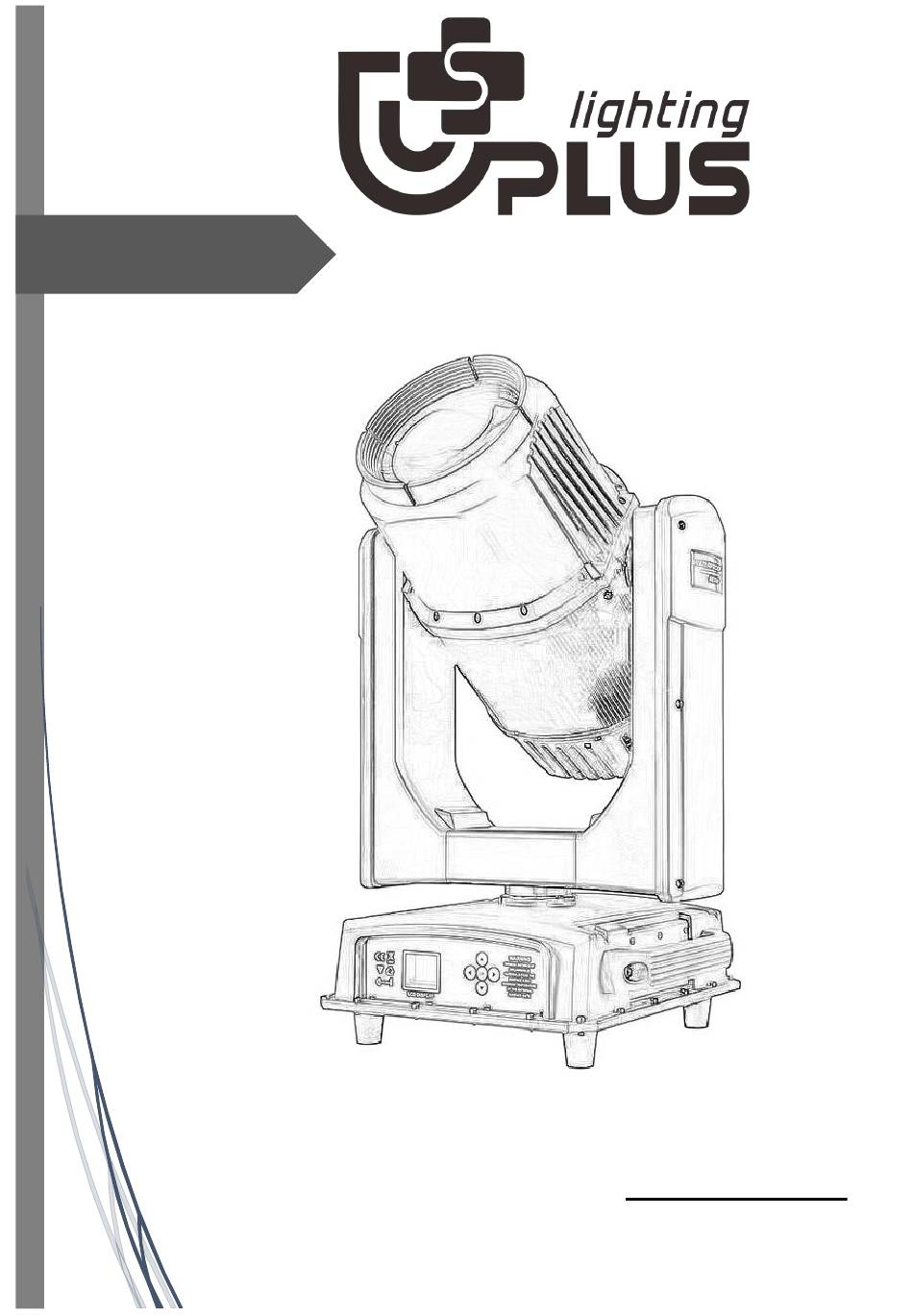

- Page 1 User manual IP-BSW380 Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 . Technical Specifications…………………………………………………………………………4 . Control Menu ………………………………………………………………………………………5-6 . DMX Channels ……………………………………………………………………………………6-8 . Dimension ……………………………………………………………………………………………9 . Trouble Shooting…………………………………………………………………………………10 . Fixture Cleaning………………………………………………………… ………………………10 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •... -
Page 4: Technical Specifications
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. •The equipment must be fixed by professionals. -
Page 5: Control Menu
3.Control Menu Menu Operation On the base of the control panel offers a number of features, such as setting DMX fixture address, switch the lamp, run the test program, the mode selection. Options Instructions Running mode Slave state: Receives DMX signals from the console or host Bootstrap Host status: Self-drive and send DMX signal to slave Voice Control... -
Page 6: Dmx Channels
Wind speed low If the blower speed is too low, the bubble will be automatically deflated turn off bubble The blower speed is too low to automatically deflate bubbles Turn bright Reset directly after powering on, no light bulb (need to manually light bubbles with bubble menu or console) Automatically light the bubble after power on, and wait for the lamp to successfully... - Page 7 85-89 Color8+Color9 90-94 Color9 95-99 Color9+Color10 100-104 Color10 105-109 Color10+color11 110-114 Color11 115-119 Color11+color12 120-124 Color12 125-129 Color12+color13 130-134 Color13 Positive flowing water (from fast to slow) 135-139 Color13+white Backward flow (slow to fast) 140-200 201-255 white Gobo1 10-14 Gobo2 15-19 Gobo3 20-24...
- Page 8 10-14 Gobo2 15-19 Gobo3 20-24 Gobo4 CH10 Rot GOBO 25-29 Gobo5 30-34 Gobo6 35-39 Gobo7 40-44 Gobo8 45-49 Gobo9 50-59 Shake slow to fast Gobo1 60-69 Shake slow to fast Gobo2 70-79 Shake slow to fast Gobo3 80-89 Shake slow to fast Gobo4 90-99 Shake slow to fast Gobo5 100-109...
-
Page 9: Dimension
5.Dimension... -
Page 10: Trouble Shooting
6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
