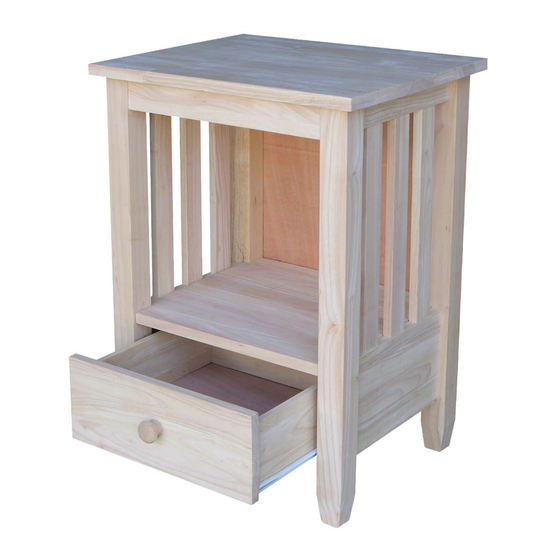

- Page 1 ASSEMBLY INSTRUCTIONS Description : MISSION END TABLE Item No. : BJ6TD ITEM NO.: BJ6TD Printed in Vietnam REVISED JUN 01, 2015 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Table top Back panel Side frame Bottom shelf (L-R) Drawer Drawer back front panel panel Drawer...
- Page 4 STEP 1 Attach side frame (C) to top (A) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (8). ITEM NO.: BJ6TD Printed in Vietnam REVISED JUN 01, 2015 - 4 -...
- Page 5 STEP 2 Insert back crossbar (I) Into side frames (C ) as shown below. Attach side frames (C) to top (A) and bottom shelf (D) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (8). ITEM NO.: BJ6TD Printed in Vietnam REVISED JUN 01, 2015...
- Page 6 STEP 3 Attach back panel (B) to the unit with screws (5) as shown below. Tighten with a screwdriver. STEP 4 Attach panels (H), (E), (F) and (G) together with screws (4) as shown below. Tighten with a screwdriver. Attach knob (7) to drawer front (E) with screw (6). Tighten with a screwdriver. ITEM NO.: BJ6TD Printed in Vietnam REVISED JUN 01, 2015...
- Page 7 STEP 5 Insert drawer into the unit as shown below. ITEM NO.: BJ6TD Printed in Vietnam REVISED JUN 01, 2015 - 7 -...
