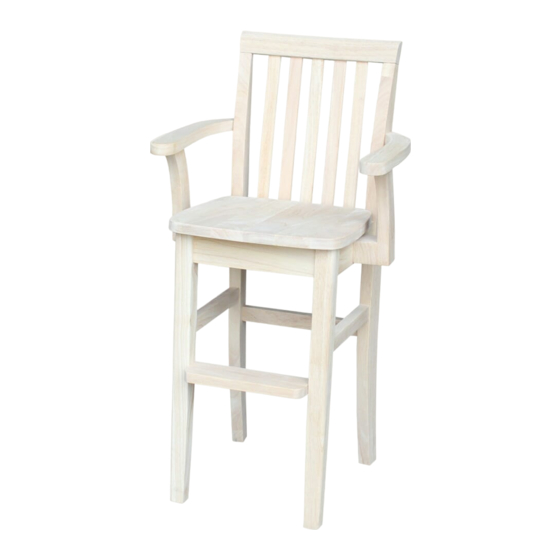

- Page 1 ASSEMBLY INSTRUCTIONS : JUVENILE MISSION CHAIR Description : CC-265 Item No. ITEM NO.: CC-265 Printed in Vietnam REVISED MAR 14, 2018 - 1 -...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. -
Page 3: Part List
PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts Description Sketch Description Sketch Back Front leg frame Seat (L-R) Side Apron Side stretcher (L-R) (L-R) HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. - Page 4 STEP 1 Attach side aprons (E) to front leg frame (B) with bolts (1) and washers (7) as shown below. Tighten with Allen Key (8). Attach side aprons (E) to back (A) with bolts (2), and washers (5), and (6) as shown below. Tighten with Allen key (8).
- Page 5 STEP 2 Attach arm frames (D) to side aprons (E) with bolts (2), and washers (5) and (6) as shown below. Tighten with Allen key (8). Attach arm frames (D) to back (A) with screws (3) as shown below. Tighten with a screwdriver. ITEM NO.: CC-265 Printed in Vietnam REVISED MAR 14, 2018...
- Page 6 STEP 3 Attach seat (C) to top of the seat frame with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: CC-265 Printed in Vietnam REVISED MAR 14, 2018 - 6 -...
