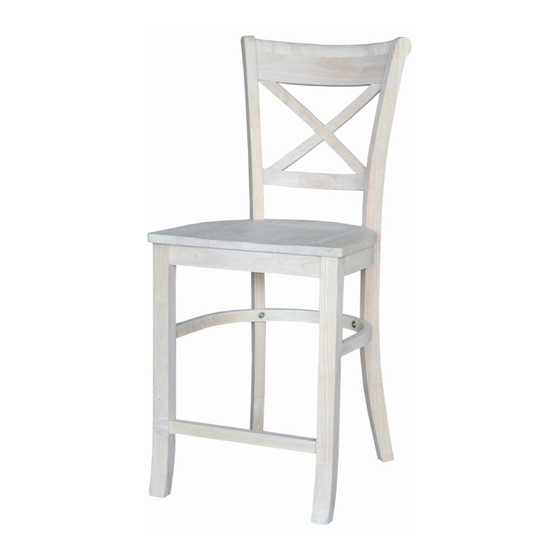

- Page 1 ASSEMBLY INSTRUCTIONS : CHARLOTTE X BACK STOOL 24 IN Description : S-312 Item No. ITEM NO.: S-312 Printed in Vietnam REVISED JUN 13, 2018 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: S-312 Printed in Vietnam REVISED JUN 13, 2018 - 2 -...
- Page 3 Long screw Short screw (M4 x 50mm) (M4 x 35mm) Lock Washer Flat Washer (6.5 x 11mm) (6.5 x 19mm) Allen Key (M4 x 30mm x 110mm) ITEM NO.: S-312 Printed in Vietnam REVISED JUN 13, 2018 - 3 -...
- Page 4 Attach front legs (D) to the seat frame (B) with bolts (2), and washers (5) and (6) as shown below. Tighten with Allen key (7). Attach side stretcher (E) and front stretcher (F) to front legs with screws (3) as shown below. Tighten with a screwdriver. ITEM NO.: S-312 Printed in Vietnam REVISED JUN 13, 2018 - 4 -...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (4), as shown below. Tighten with a screwdriver. ITEM NO.: S-312 Printed in Vietnam REVISED JUN 13, 2018 - 5 -...
