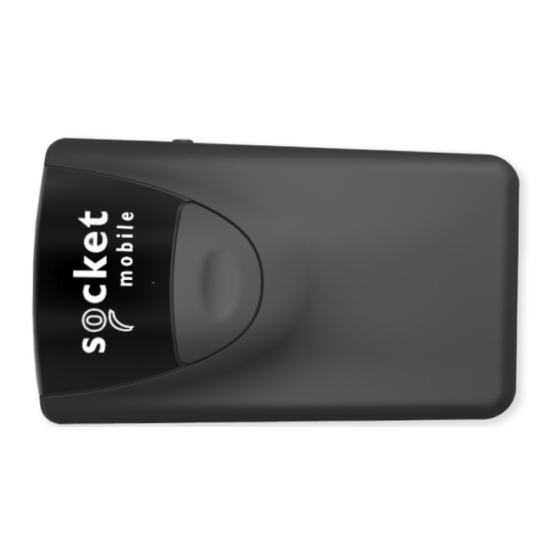

Bluetooth cordless barcode scanner
Hide thumbs Also See for SOCKETSCAN 800 Series:

Advertisement

Quick Links

SOCKETSCAN™ 800 SERIES
ATTACHABLE
Bluetooth Cordless Barcode Scanner
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOCKETSCAN 800 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Socket SOCKETSCAN 800 Series

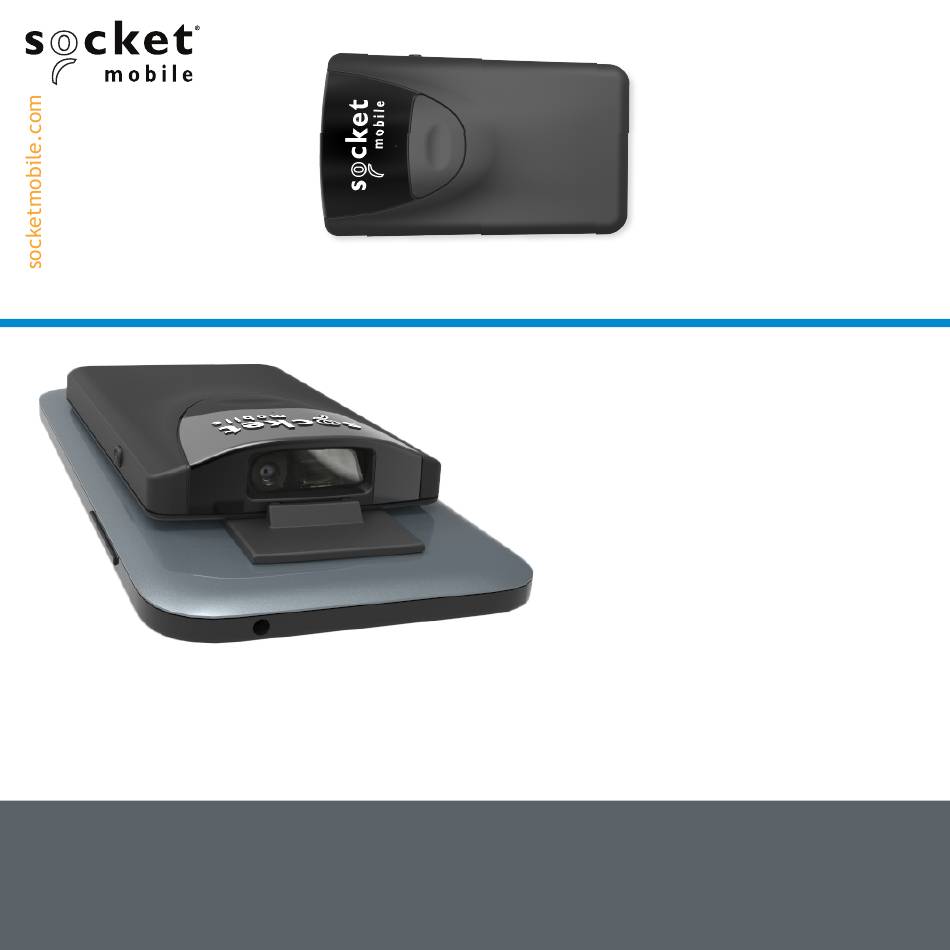

  • Page 1 SOCKETSCAN™ 800 SERIES ATTACHABLE Bluetooth Cordless Barcode Scanner www.socketmobile.com...
  • Page 2: Package Contents

    Socket Mobile, Inc. The Blue- tooth word mark and logo are registered trademarks of the Bluetooth SIG, Inc. USA, and any use by Socket Mobile, Inc. is under license. All other trademarks and trade names contained herein may be those of their respective owners.
  • Page 3: Product Information

    PRODUCT INFORMATION Bluetooth LED Side LED Power button Trigger button Micro USB Port Lanyard Attach...
  • Page 4: Charge The Battery

    CHARGE THE BATTERY Charge the 800 Series The 800 Series must be fully charge before first use. Initial charging takes 4 hours with the USB charging cable connected to a USB charging port. Insert the Micro USB side of the USB Charging Cable (included) into the 800 Series port and the USB side of the Charging Cable into the USB con- nector of a computer or AC adapter (not included).
  • Page 5: Getting Started

    GETTING STARTED Successful Scanning 1. Hold the scanner 2-3 in (5-7 cm) away from the barcode. 2. Aim the scan beam straight across the entire barcode. 3. Keep your hand steady! SocketScan S800 SocketScan S850 ~4” to 8” ~6” to 12” scanning distance scanning distance...
  • Page 6: Connection Modes

    800 Series. If the connection steps are not docu- mented in the Application, please see pages 10-11 for the connection steps using Application Mode (MFi-SPP). Please visit the Socket Mobile App Store to confirm your Scanner- enabled Application supports the 800 Series. www.socketmobile.com/...
  • Page 7 CONNECTION MODES (CONTINUED) Basic Mode (HID) (default) In Basic Mode (HID) the 800 Series emulates a keyboard. This is a uni- versal connection method and will work with any application that has a text field. The application receives the data input from the 800 Series. The 800 Series includes a keyboard pop-up feature so you can disable the 800 Series and accept data input from the onscreen keyboard on the device.
  • Page 8 An iOS device is always Discoverable when the Bluetooth menu is active. A MAC OS device provides an option to turn Discoverable On or Off. Confirm the MAC OS device is Discoverable. 3. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few sec- onds the “Not Paired”...
  • Page 9 HID (KEYBOARD EMULATION) MODE (CONTINUED) Keyboard Pop-up Enable The 800 Series emulates the keyboard in Basic Mode (HID). Therefore scanned barcode data will be input into the text field. The following steps show how to access the onscreen keyboard while connected to the 800 Series in Basic Mode (HID).
  • Page 10 APPLICATION MODE (MFI-SPP) If you are using a Scanner-enabled Application, follow their instructions to connect with the 800 Series. Many applications include these steps and barcodes in the set-up procedure. If you are using an Application that connects to the 800 Series using HID Keyboard Emulation mode, follow the instructions on pages 8-9.
  • Page 11 APPLICATION MODE (MFI-SPP) (CONTINUED) 2. Turn Bluetooth on for the Apple device. Go to Settings > Bluetooth. A Bluetooth Device search will begin. 3. Tap Socket CHS[xxxxxx] in the list of Devices found. After a few seconds the “Not Paired” status will change to “Connected” and the 800 Series Blue LED will blink every 3 seconds confirming the connection.
  • Page 12: Bluetooth Unpairing

    800 Series, it will be discoverable. Remove the 800 Series from the Bluetooth list in your iOS device To Unpair the 800 Series on your device, go to Settings > Bluetooth, next to the Socket CHS [xxxxxx] name, then tap “Forget this Device”.
  • Page 13: Using The Scanner

    USING THE SCANNER Scanning Barcodes After connecting the 800 Series to your device, open an application. Place the cursor where you want to enter data. Hold the 800 Series about 2-3 in (5-7 cm) from the barcode and press and hold the trigger button. Make sure the red aiming beam covers the entire width of the barcode.
  • Page 14: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the 800 Series. Make sure the 800 Series is not connected to a device before scanning a command barcode! For a complete set of command barcodes, download the Command Barcodes Sheet The web link is also provided in the below QR Code. To open the web page, scan this QR Code using a QR Code Reader App in your iOS device.
  • Page 15 COMMAND BARCODES (CONTINUED) Bluetooth Connection Modes Basic Mode (HID) (default) Configures the 800 Series to Human Interface Device (HID) mode as a Keyboard class device. Application Mode (MFi-SPP) Changes the 800 Series to Ap- plication Mode (MFi-SPP).
  • Page 16 COMMAND BARCODES (CONTINUED) Beep Settings Beep after 800 Se- ries Decodes Data ON (default) Enables 800 Series to beep to indicate successful scans. Beep after 800 Series Decodes Data OFF Disables 800 Series from beeping to indicate successful scans.
  • Page 17 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate after 800 Series Decodes Data ON (default) Enables 800 Series to vi- brate to indicate success- ful scans. Vibrate after 800 Series Decodes Data OFF Disables 800 Series from vibrating to indicate suc- cessful scans. Factory Default Factory Reset Configures the 800 Series...
  • Page 18: Status Indicators

    STATUS INDICATORS Status LED Activity Meaning Bluetooth 1 Blue blink every Bluetooth is On but not Front LED second connected. 1 Blue blink every 3 800 Series is connected to seconds device. Good Read Green constant Data successfully scanned. Side LED (while scanning) Battery Status Red constant...
  • Page 19 STATUS INDICATORS (CONTINUED) Beep Pattern Meaning Low-high tone Power On High-low tone Power Off High-high tone A proper USB charging port is detected. 1 low beep Keyboard Pop-up Enable 1 beep 800 Series connected to device and ready to scan barcodes.
  • Page 20: Product Specifications

    PRODUCT SPECIFICATIONS Specifications S800 S850 Dimensions 3.42 x 0.52 x 2.12 in. (86.9 x 53.94 x 13.43 mm) 1.7 oz (48.2 g) Total Weight Antimicrobial additive in all external surfaces Antimicrobial +32 to +122°F (0 to + 50°C) Operating Temp 10 hours or 10,000 10 hours or 1,000 scans Battery Life...
  • Page 21: Helpful Resources

    Technical Support & Product Registration: http://support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: www.socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: http://developer.socketmobile.com The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: www.socketmobile.com/support/downloads/data-collection/series7/ ss10/?page=series This web link is also provided in the below QR Code.
  • Page 22: Fcc Warning Statement

    FCC WARNING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 23 NOTES...
  • Page 24 2016...
