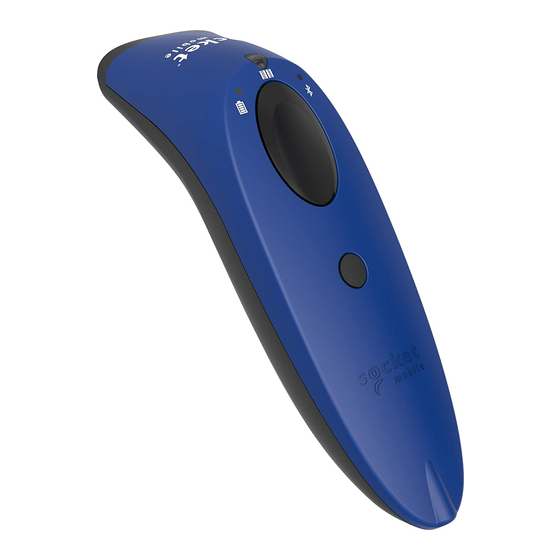

Socket SocketScan S730 User Manual

Bluetooth wireless technology laser barcode scanner
Hide thumbs Also See for SocketScan S730:
Table of Contents

Advertisement

Quick Links

S730 USERGUIDE
SOCKETSCAN
®
Bluetooth
wireless technology
®
laser barcode scanner
Model S730
www.socketmobile.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SocketScan S730 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket SocketScan S730

Summary of Contents for Socket SocketScan S730

  • Page 1 S730 USERGUIDE SOCKETSCAN ® Bluetooth wireless technology ® laser barcode scanner Model S730 www.socketmobile.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents Product Information Attach Wrist Strap Charge the Battery Optional Charging Accessories Powering on/off Scanning Barcodes Bluetooth Connection Modes 11-12 How to setup your scanner: Download our Companion App for Apple and Android Device ® Setup Alternatives How to setup your scanner in Basic Mode: Basic Mode How to setup your scanner in Application Mode:...
  • Page 3 TABLE OF CONTENTS Bluetooth Unpairing Factory Reset Restore Method Bluetooth Reconnection of Scanner Status Indicators 23-26 Product Specifications 27-28 Helpful Resources Safety, Compliance & Warranty 30-40 Battery Warning Statements 35-36 Command Barcodes 41-47...

  • Page 4: Package Contents

    Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 5: Product Information

    Charging pins Made with antimicrobial additives to help provide protection against bacteria. Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth.

  • Page 6: Attach Wrist Strap

    ATTACH WRIST STRAP Attach the Lanyard (optional) 1. Detach the string loop of the tether from the lanyard. 2. Feed the string loop through the eyelet. 3. Pull the tether through the string loop. 4. Pull tight so the string loop is secure. 5.

  • Page 7: Charge The Battery

    CHARGE THE BATTERY Power Adapter Plug in the power adapter and the scanner will beep twice. The scanner must be fully charged before first use. Please allow 8 hours uninterrupted charging for the initial battery charge. The scanner will stop charging once the battery is full (No overcharging occurs) •...

  • Page 8: Optional Charging Accessories

    OPTIONAL CHARGING ACCESSORIES Available separately Charging Dock Charging Stand AC Power Supply International Adapters available For all optional accessories visit our Socket Store.com.

  • Page 9: Powering On/Off

    POWERING ON/OFF Power button Powering On: Powering Off / Disconnecting: Press and hold down the small Press and hold down the small power button until the Battery power button until the scanner light turns on and the scanner beeps twice (high-low) and all beeps twice (low-high).

  • Page 10: Scanning Barcodes

    SCANNING BARCODES 1D Laser Barcode Scanner Aim the scan beam across the entire barcode MODEL - S730 CAUTION - LASER LIGHT. DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT COMPLIES WITH LASER NOTICE 50. ATTENTION - LUMIERE LASER NE PAS 650nm REGARDER LE RAYON.

  • Page 11: Bluetooth Connection Modes

    Application Mode (SPP) 2. More efficient and reliable data communications for barcodes containing lots of data Serial Port Profile 3. If you have an application that supports Socket Mobile Scanners this is the mode recommended For iOS Devices Application Mode (MFi-SPP) 1.

  • Page 12: Android

    BLUETOOTH CONNECTION MODES OS Connection Options Bluetooth Operating Bluetooth Bluetooth Apple Systems Devices Serial (OS) Support Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & iPad Apple iOS (works with all versions) Windows PC Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS...
  • Page 13 COMPANION APP To assist in scanner setup and configuration, download our new Companion App for free! Socket Mobile Companion App will help you configure and check the status of your Socket Mobile Barcode scanners. • Easy to follow instructions for pairing scanners in Application Mode •...
  • Page 14 BASIC MODE Connect Device in Basic Mode In this mode the scanner functions and communicates similar to a keyboard. Therefore, the scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired).
  • Page 15 APPLICATION MODE Connect Android device in Application Mode Install Software 1. Go to GooglePlay Store and search for “SocketScan ”. 2. Download & install. Follow the on screen instructions. Getting Started 3. Follow the on screen instructions. 4. Scan the barcode on the screen. 5.
  • Page 16 APPLICATION MODE Connect to Apple iOS device in Application Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner. If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.
  • Page 17 APPLICATION MODE Connect to Apple iOS device in Application Mode CONTINUED 4. Tap Socket S730[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.
  • Page 18 3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket S730[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue.
  • Page 19 APPLICATION MODE Application Mode (SPP) for Windows or Android version 7.0 and lower Configures scanner to Serial Port Profile. Install Software 1. Go to GooglePlay Store and search for “SocketScan ”. 2. Download & install. Follow the on screen instructions. Getting Started 3.
  • Page 20 Connect Windows PC in Application Mode Note: Make sure you have administrative privileges. 1. Turn on Bluetooth on your PC 2. Download the latest SocketScan 10 software from Socket Mobile’s support web page. 3. Follow the on-screen instructions to install the software.

  • Page 21: Bluetooth Unpairing

    BLUETOOTH UNPAIRING Note: This procedure will put the scanner in discoverable mode. Step 1: Unpairing the scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b.

  • Page 22: Factory Reset

    FACTORY RESET Factory Reset will restore the SocketScan to Factory Default settings (con- figured as shipped). Scan this barcode follow the Factory Reset manually: 1. Power ON the scanner. 2. Press and hold the scan button. 3. Tap the power button once while continuing to press the scan button. Quickly press and release the power button 4.

  • Page 23: Restore Method

    RESTORE METHOD NOTE: If your scanner remains in an unresponsive state after following the Factory Reset, use the Restore Method. The Restore Method should be the last attempt used to revive an unre- sponsive scanner. It will reinitialize the core hardware. 1.

  • Page 24: Bluetooth Reconnection Of Scanner

    BLUETOOTH RECONNECTION Automatic Reconnections Each time you power on the scanner, it will automatically try to connect to the last device it was connected to. • Make sure the device is in range with Bluetooth turned on. • If using Application Mode, make sure the Scanner-enabled application is launched or running.

  • Page 25: Status Indicators

    STATUS INDICATORS Battery Charging when plugged LED Activity Meaning into Power Supply Blinking Yellow/Amber Charging the battery Solid Green Battery is fully charged Battery Status When not LED Activity Meaning connected to power supply Solid Green Battery level: 100% to 25% Solid Yellow/Amber Battery level: 25% to 10% Warning...

  • Page 26: Status Indicators

    STATUS INDICATORS (CONTINUED) Bluetooth LED Activity Meaning Fast Blinking Blue Discoverable - waiting for a (2 blinks every host Bluetooth connection. second) Scanner is attempting to connect to the last known Bluetooth Slow Blinking Blue host device. (1 blink every second) After 1 minute of blinking, scanner will stop searching.
  • Page 27 STATUS INDICATORS (CONTINUED) Sound Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off 2 Even Tones Scanner detects adequate power supply 1 Low Beep (When the power button is double tapped) Scanner has toggled on-screen keyboard or keyboard toggle feature is enabled.
  • Page 28 STATUS INDICATORS (CONTINUED) Vibrate Meaning Vibrate Data successfully scanned Command Barcodes are available on pages 42-48 to modify the LED, beep, and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate notifica- tions.

  • Page 29: Product Specifications

    PRODUCT SPECIFICATIONS Specifications S730 Dimensions (L x W x H) 5.2” x 1.5” x 1.6” (132.2 x 37.1 x 40.1 mm) Total Mass 4.2 oz (118 g) Antimicrobial Antimicrobial additive in external surfaces Battery Rechargeable, 2000mAh AA (LR6) NiMH Charge Time Approximately 8 Hours Battery Operation Standby time: over 20 hours...

  • Page 30: Product Specifications

    PRODUCT SPECIFICATIONS Specifications S730 Bookland EAN (ISBN / EAN-13), Chinese 2 of 5, Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, GS1 DataBar (RSS), GS1-128 Symbologies (UCC-128/EAN-128), Interleaved 2 of 5 (ITF-14), MSI, Plessey, UPC/EAN, Matrix 2 of 5, Korean 2 of 5 Supported Language Settings...

  • Page 31: Helpful Resources

    HELPFUL RESOURCES Technical Support & Product Registration: support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: socketmobile.com/support/warranty-checker Learn about our Socket Mobile Developer Program: socketmobile.com/developers The Command Barcodes (Advanced Scanner Configurations) can be down- loaded at: socketmobile.com/support/downloads...
  • Page 32 Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the SocketScan barcode scanner using an AC adapter when operating the unit outdoors, or in the rain.
  • Page 33 BLUETOOTH DEVICE UNITED STATES FCC ID: T9J-RN42 LUBMA41 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 34 BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device meets the FCC requirements for RF exposure in public or uncontrolled environments. This device com- plies with Part 15 of the FCC Rules.
  • Page 35 BLUETOOTH DEVICE CANADA IC ID: 6514A-RN42 2529A-MA41-S7 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 36 BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and Euro- pean Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: Applicable Directives: •...
  • Page 37 BLUETOOTH DEVICE JAPAN Telec Marking Compliance R 201-125709 R 211-181219 Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.

  • Page 38: Battery Warning Statements

    BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and email support@socketmobile.com.
  • Page 39 BATTERY WARNING STATEMENTS This device contains two AA rechargeable NiMH replaceable batter- ies. Stop charging SocketScan barcode scanners if charging is not completed within 24 hours. (Look into replacing the battery). Stop charging the battery if the SocketScan barcode scanner case be- comes abnormally hot, or shows signs of odor, discoloration, deformation, or abnormal conditions is detected during use, charge, or storage.
  • Page 40 ATTENTION - LUMIERE LASER NE PAS 650nm REGARDER LE RAYON. CLASSE 2 PRODUIT LASER 1.0mw Complies with Laser Notice 50, dated June 24, 2007 Complies with IEC/EN 60825-1:2007, IEC/EN60825-1:2014 Manufacturer Name: Socket Mobile, Inc. MANUFACTURER ADDRESS: 39700 Eureka Drive, Newark, CA 94560, USA...
  • Page 41 REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the applicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
  • Page 42 (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products purchased through non-authorized channels are not eligible for this warranty support.

  • Page 43: Command Barcodes

    COMMAND BARCODES Scan command barcode(s) to quickly configure the Scanner. Make sure the scanner is not connected to a device before scanning a command barcode! For a complete set of command barcodes, download the Command Barcodes Sheet: https://www.socketmobile.com/support/download...
  • Page 44 COMMAND BARCODES (CONTINUED) Important! Make sure the scanner is not connected to a host computer or device before scanning a command barcode! Bluetooth Connection Modes Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class #FNB00F40001# device Application Mode (MFi-SPP)
  • Page 45 COMMAND BARCODES (CONTINUED) For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning the scanner on again and reconnecting to your host device. Scan one of the barcodes below and reconfigure the scanner to remain on longer. Note: Turn off the host device’s Bluetooth prior to scanning one of the alternate timer barcodes.
  • Page 46 COMMAND BARCODES (CONTINUED) Bluetooth Connection Modes Continuous Power for 4 hours* Scan Barcode to configure the scanner to remain on for 4 #FNB012100F000F0# hours. Return Scanner to Default Setting Turns the scanner off when it is not in use – 3 to 5 minutes after being discon- #FNB012100780005# nected from host device.
  • Page 47 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables scanner to beep to indicate #FNB0119E000100030078004B# successful scans. Beep after scanner Decodes Data OFF Disables scanner...
  • Page 48 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. #FNB01310001000100FA0000# Vibrate OFF Disables scanner from vibrating to indicate #FNB013100010000# successful scans. Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning #FNB00F0# this barcode.
  • Page 49 Command Barcodes (Continued) HID Keyboard Language Settings Scan to enable language English (Default) #FNB01430001# French #FNB01430002# German #FNB01430003# Spanish #FNB01430004# For more command codes go to: https://www.socketmobile.com/support/download...
  • Page 50 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: https://www.socketmobile.com/socketcare 08/2018...
