Summary of Contents for Socket SOCKETSCAN 800 Series

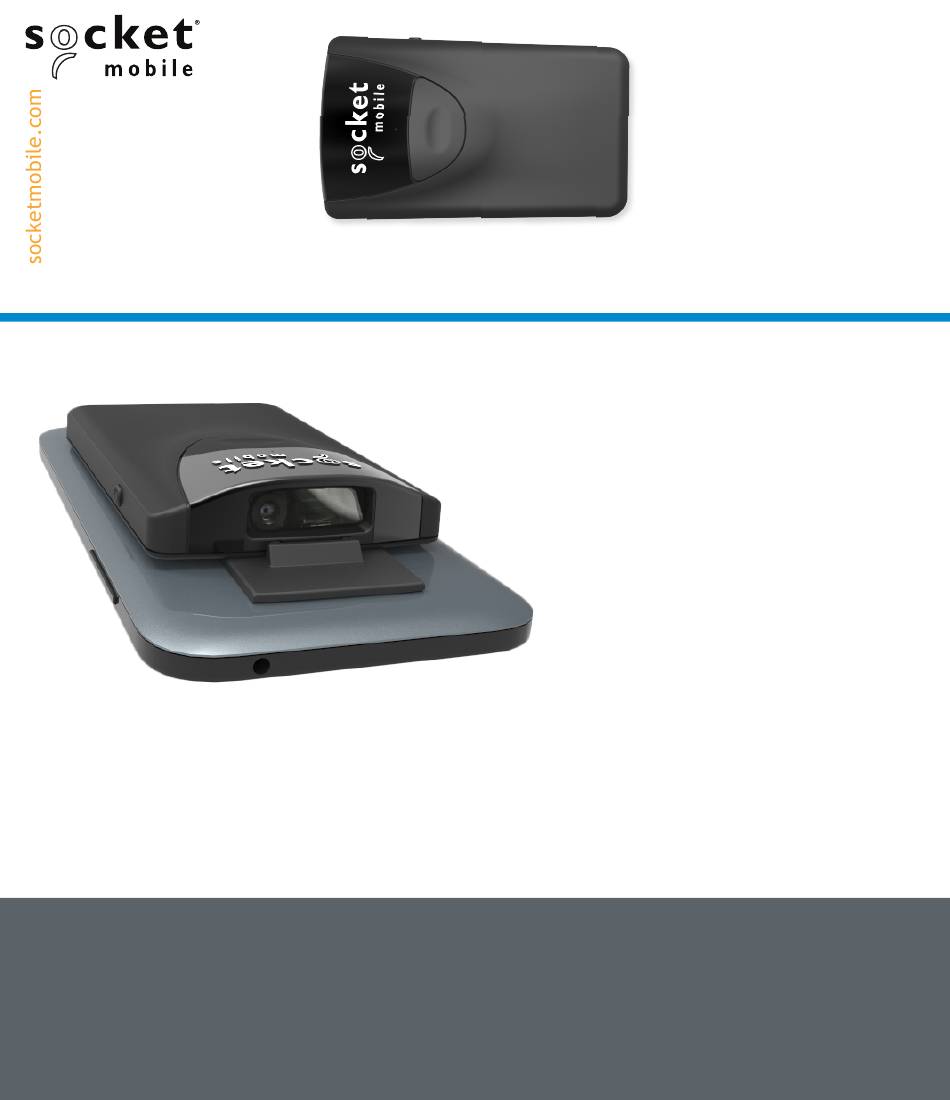

- Page 1 SOCKETSCAN 800 SERIES USERGUIDE ® ATTACHABLE Bluetooth ® wireless technology Cordless Barcode Scanner www.socketmobile.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents Product Information Charge the Battery Optional Charging Accessories Scanning Barcodes Bluetooth Connection Modes How to setup your scanner: Download our Companion App for Apple and Android Device ® Can’t use Companion App? How to setup your scanner in Basic Mode •... -
Page 3: Package Contents
Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Tech- nology word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners. -
Page 4: Product Information
Scan button Lanyard Hook Micro USB Port Lanyard Attachment (not included) Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth. Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be... -
Page 5: Charge The Battery
CHARGE THE BATTERY 1. Insert charging cable into an AC charging adapter (not included - most smartphones and tablets come with AC Adapters that look something like this.) 2. Insert Micro USB into the 800 Series USB port. 3. The 800 Series will beep twice indicating adequate power is being supplied to the unit. -
Page 6: Optional Charging Accessories
OPTIONAL CHARGING ACCESSORIES DuraCase Socket Mobile DuraCase™ combines and safeguards both the 800 Series and mobile device as a one-handed scanning solution that simultaneously charges both devices. Available for Apple iPod touch , Samsung J3/J5* ® ® Samsung S7*. Watch our video on how to setup your DuraCase. -
Page 7: Scanning Barcodes
SCANNING BARCODES After connecting the SocketScan to your device, open an application. Place the cursor where you want to enter the scanned data. 1. Hold the SocketScan a few inches from the barcode. 2. Aim, press and hold the trigger button. By default, the SocketScan will beep, vibrate, and the side LED will flash green to confirm successful scan. -
Page 8: Bluetooth Connection Modes
• Software installation is required Apple Specific • If you have an iOS application that supports Serial Profile Socket Mobile Scanners this is the mode you want to use *By default, the scanner is set to Basic Mode (HID). -
Page 9: Apple
BLUETOOTH CONNECTION MODES Operating System Connection Options Bluetooth Operating Bluetooth Bluetooth Apple Systems Devices Serial (OS) Support Support Specific (MFi Mode) Android 4.0.3 & Android later iPod, iPhone, & Apple iOS iPad Windows PC Windows 7, 8, 10 Mac OS X 10.4 to 10.X Mac OS Mac Books, Mac... - Page 10 To assist in scanner setup & configuration, download our new Companion App for free! Socket Mobile Companion App will help you configure and check the status of your Socket Mobile Barcode scanners. • Easy to follow instructions for pairing scanners in Application Mode •...
-
Page 11: Basic Mode
BASIC MODE Connect Device in Basic Mode In this mode the scanner functions and communicates similar to a keyboard. Therefore, the scanner will work with Notes, and any other application that supports an active cursor. 1. Power on the scanner. Make sure the scanner is discoverable (unpaired and Bluetooth LED blinking). - Page 12 APPLICATION MODE Connect Apple iOS device in Application Mode Please check with your scanner application vendor or visit www.socketmobile.com/appstore to confirm your scanner-enabled application supports the scanner. If you are using the scanner with an Apple iOS device and a scanner-enabled Application that does not provide instructions how to connect your scanner, please use the following steps.
- Page 13 APPLICATION MODE 4. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue. Note: The characters in brackets are the last 6 characters of the Bluetooth Address.
-
Page 14: Android
3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket S8xx[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue. -
Page 15: Android For S800 Rev. M And Below
3. Turn on Bluetooth on the Android device. Go to Settings > Bluetooth. A Bluetooth Devices search will begin. 4. Tap Socket D760[xxxxxx] in the list of other devices found. After a few seconds the status will change to “Connected” and the LED will stop blinking and turn solid blue. -
Page 16: Windows (Option 2)
APPLICATION MODE Connect Windows (option 2) in Application Mode Note: Make sure you have administrative privileges. 1. Download the latest SocketScan 10 software from Socket Mobile’s support web page. 2. Follow the on-screen instructions to install the software. 3. In SocketScan 10 Settings, select an incoming Bluetooth serial COM port. -
Page 17: Bluetooth Unpairing
BLUETOOTH UNPAIRING Note: This procedure will put the SocketScan in discoverable mode. Step 1: Unpairing the scanner: Delete the Bluetooth Pairing If the scanner is paired with a device, unpair it before trying to connect to a different device. a. Power on the scanner. b. -
Page 18: Factory Reset
FACTORY RESET Factory Reset will restore the scanner to Factory Default settings (configured as shipped). If your scanner cannot scan the Factory Default barcode below, then Follow the Factory Reset (button) sequence: Scan this barcode Or follow the steps below to manually reset the scanner: Power Button Turn ON the scanner. -
Page 19: Restore Method
RESTORE METHOD NOTE: If your scanner remains in an unresponsive state after following the Factory Reset, use the Restore Method as a last resort. The Restore Method should be the last attempt used to revive an unresponsive scanner. It will reinitialize the core hardware. Make sure your scanner is OFF. -
Page 20: Status Indicators
STATUS INDICATORS Top LED LED Activity Meaning Bluetooth Quick Blinking Blue Discoverable - waiting for (2 blinks every a host Bluetooth connec- second) tion. Scanner is attempting to connect to the last known Slow Blinking Blue host device. (1 blink every After 1 minute of blinking, second) scanner will stop search-... - Page 21 STATUS INDICATORS Beep Pattern Sound Meaning Low-High Tone Power On High-Low Tone Power Off Power Supply detected and scanner started High-High Tone charging Scanner has toggled on-screen keyboard 1 Low Beep or keyboard toggle feature is enabled (iOS devices only) Scanner connected to device and is ready to 1 Beep scan barcodes...
-
Page 22: Product Specifications
PRODUCT SPECIFICATIONS Vibrate Meaning Vibrate Data successfully scanned Command Barcodes are available on pages 43-46 to modify the LED, beep, and vibrate settings. If you are using a scanner-enabled application, typically the application provides settings for LED, beep, and vibrate settings. Configuration Settings Time after powering on Bluetooth mode... - Page 23 PRODUCT SPECIFICATIONS Specifications S800 S840/S860 Dimensions 3.42 x 0.52 x 2.12 in. (86.9 x 53.94 x 13.43 mm) (L x W x H) Total Mass 1.7 oz (48.2 g) Antimicrobial Antimicrobial additive in external surfaces Battery Lithium ion rechargeable battery Charge Time 4 Hours Battery Life -...
- Page 24 PRODUCT SPECIFICATIONS Specifications S800 S850/S860 Default CODE 39, CODE 128, EAN S840/S860 Symbologies 8, EAN 13, GS1 DATABAR, 1D Symbologies: Codabar, GS1 DATABAR EXPANDED Code 39, Code 93, Code STACKED, GS1 DATABAR 128, EAN-13/JAN, EAN-8/ EXTENDED, GS1 DATABAR JAN, GS1 Databar, GS1 LIMITED, INTERLEAVED 2 Databar Expanded, GS1 OF 5, ISBT 128, UPC A,...
- Page 25 PRODUCT SPECIFICATIONS Supported BOOKLAND EAN, Codabar, S840/S860 Symbologies CODE 39, CODE 39 ASCII 1D Symbologies: Book- (EXTENDED), CODE 39 land EAN, Chinese 2 of 5, Trioptic, CODE Codabar, Code 11, Code 93, CODE 128, DISCRETE 39, Code 93, Code 128, 2 OF 5, EAN 8, EAN 13, Composite CC-A/B, Com- EAN 128, EAN 128 + COM-...
- Page 26 PRODUCT SPECIFICATIONS Supported Language Settings English, French, German, Spanish [in Basic Mode (HID)] Systems/ Battery USB Type 5V 1A Charging Requirement Ambient Light From 0 to 100 000 lux Operating +32 to +122°F (0 to +50°C) Temperature Storage -22 to +158°F (-30 to +70°C) Temperature Relative 5% to 95% non-condensing...
-
Page 27: Helpful Resources
Technical Support & Product Registration: support.socketmobile.com Phone: 800-279-1390 +1-510-933-3020 (worldwide) Warranty Checker: socketmobile.com/support/warranty-checker Socket Mobile Developer Program: Learn more at: socketmobile.com/developers The User’s Guide (full installation and usage instructions) and Command Barcodes (Advanced Scanner Configurations) can be download at: socketmobile.com/support/downloads... -
Page 28: Battery Warning, Safety, Compliance, Warranty
Changes or modifications of this product, not expressly approved by Socket Mobile may void the user’s authority to use the equipment. Do not charge the SocketScan barcode scanner using an AC adapter when operating the unit outdoors, or in the rain. - Page 29 BLUETOOTH DEVICE UNITED STATES FCC ID: T9J-RN42 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 30 BLUETOOTH DEVICE UNITED STATES FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules.
- Page 31 BLUETOOTH DEVICE CANADA IC ID: 6514A-RN42 This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must ac- cept any interference, including interference that may cause undesired operation of the device.
- Page 32 BLUETOOTH DEVICE EUROPE CE Marking & European Union Compliance Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows: CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES Low Voltage Directives: 2014/35/EU...
- Page 33 BLUETOOTH DEVICE JAPAN R 201-125799 Telec Marking Compliance Products intended for sale within the country of Japan are marked with a Telec mark, which indicates compliance to applicable Radio Laws, Articles and Amendments.
- Page 34 BATTERY WARNING STATEMENTS This device contains 2 AA rechargeable NiMH replaceable batteries. Stop charging SocketScan barcode scanners if charging isn’t completed within the normal specified time (approx. 6 hours). Stop charging the battery if the SocketScan barcode scanner case becomes abnormally hot, or shows signs of odor, discoloration, deforma- tion, or abnormal conditions is detected during use, charge, or storage.
- Page 35 BATTERY WARNING STATEMENTS • Dispose of used batteries in accordance with the prevailing community regulations that apply to the disposal of batteries. • Never expose this product or the battery to any liquids. • Do not shock the battery by dropping it or throwing it. If this unit shows any type of damage, such as bulging, swelling or disfigurement, discontinue use and email support@socketmobile.com.
- Page 36 LED DEVICES Caution: DO NOT STARE DIRECTLY INTO THE LED BEAM. LED DEVICE: The SocketScan S800, S840, and S860 contain a LED-type scan engine. For the LED version of this engine, the following applies: • Complies with EN/IEC 62471 (Exempt Group) •...
- Page 37 REGULATORY COMPLIANCE CE MARKING AND EUROPEAN UNION COMPLIANCE Testing for compliance to CE requirements was performed by an independent laboratory. The unit under test was found compliant with all the ap- plicable Directives, 2004/108/EC and 2006/95/EC. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT The WEEE directive places an obligation on all EU-based manufacturers and importers to take-back electronic products at the end of their useful life.
- Page 38 (1) year from the date of purchase. Product must be purchased new from a Socket Authorized Distributor or Reseller. Used products and products pur- chased through non-authorized channels are not eligible for this warranty support.
-
Page 39: Command Barcodes
COMMAND BARCODES Scan command barcode(s) to quickly configure the Scanner. Make sure the scanner is not connected to a device before scanning a command barcode! See page for unpairing instructions. For a complete set of command barcodes, download the Command Barcodes Sheet: https://socketmobile.com/support/download Charging Stand Modes... - Page 40 COMMAND BARCODES (CONTINUED) Important! Make sure the scanner is not connected to a host computer or Bluetooth Connection Modes device before scanning a command barcode! Basic Mode (HID) (default) Configures the Scanner to Human Interface Device (HID) mode as a Keyboard class device #FNB00F40001# Application Mode (MFi-SPP) for...
- Page 41 COMMAND BARCODES (CONTINUED) Always Active Mode For busy days on the job, try using the Active Mode to keep you moving faster. Avoid the hassle of turning the scanner on again and reconnecting to your host device. Scan one of the barcodes below and reconfigure the scanner to remain on longer. Note: Turn off the host device’s Bluetooth prior to scanning one of the alternate timer barcodes.
- Page 42 COMMAND BARCODES (CONTINUED) *These settings drain the battery faster. It is assumed you will charge the scanner within a 24-hour period or overnight. If you don’t, the scanner’s battery will drain completely. Return Scanner to Default Setting Turns the scanner off when it is not in use –...
- Page 43 COMMAND BARCODES (CONTINUED) Important! Make sure the Scanner is not connected to a host computer or device before scanning a command barcode! Beep Settings Beep after scanner Decodes Data ON (default) Enables scanner to beep to indicate suc- cessful scans. #FNB0119E000100030078004B# Beep after scanner Decodes Data OFF...
- Page 44 COMMAND BARCODES (CONTINUED) Vibrate Settings Vibrate ON (default) Enables scanner to vibrate to indicate successful scans. #FNB01310001000100FA0000# Vibrate OFF Disables scanner from vibrating to indicate successful scans. #FNB013100010000# Factory Default Factory Reset Revert all settings to factory defaults. The scanner will power off after scanning this #FNB00F0# barcode.
- Page 45 Extend Your Warranty... Receive Priority Service and Personal Care. You have 60 Days from purchase date to enroll in a SocketCare Service Program! For detailed information visit: https://www.socketmobile.com/socketcare 09/2018...
