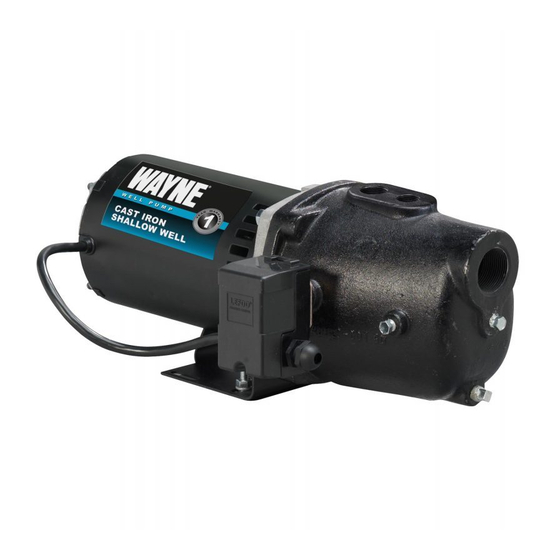

Wayne JSU50 Operating Instructions And Parts Manual

See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or prop-
erty damage! Retain instructions for future reference.
Description
These pumps are single stage domestic
water pumps designed for pumping
potable water. Shallow well pumps are
designed for applications where the
water level is less than 25 feet below
the pump. Flammable liquids such as
gasoline, chemicals, or corrosive liquids
should never be used with these
pumps.
Unpacking
Inspect this unit before it is used.
Occasionally, products are damaged
during shipment. If the pump or com-
ponents are damaged, return the unit
to the place of purchase for replace-
ment. Failure to do so could result in
serious injury or death.
Safety Guidelines
This manual contains information that
is very important to know and under-
stand. This information is provided for
SAFETY and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following
symbols.
Danger indicates
an imminently haz-
ardous situation which, if not avoided,
will result in death or serious injury.
Warning indicates
a potentially haz-
ardous situation which, if not avoided,
could result in death or serious injury.
Caution indicates a
potentially haz-
ardous situation which, if not avoided,
may result in minor or moderate injury.
Notice indicates
important informa-
tion, that if not followed, may cause
damage to equipment.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2008 Wayne Water Systems
Jet Pump
General Safety
Information
1. Read these rules and instructions
carefully. Failure to follow these
instructions could cause serious
bodily injury and/or property
damage.
This pump is non-
submersible.
Install indoors
only. Risk of elec-
trical shock.
Pump only clear water. Do
not pump flammable or
explosive fluids such as
gasoline, fuel oil, kerosene, etc. Do not
use in a flammable and/or explosive
atmosphere. Personal injury and/or
property damage could result.
This pump is not
designed to handle
salt water, brine, laundry discharge, or
any other application which may con-
tain caustic chemicals and/or foreign
materials. Pump damage could occur if
used in these applications and will void
warranty.
All wiring must be per-
formed by a qualified elec-
trician. The pump must be
installed in compliance with
the National Electrical Code and all
local codes.
2. Connect this pump to a grounded
circuit equipped with a ground
fault interrupter device.
3. Before installing this product, have
the electrical circuit checked by an
electrician to ensure proper
grounding.
Pump must be disconnected
from power source before
installing or servicing.
For parts, product & service information
visit www.waynepumps.com
4. Be sure the water source and pip-
ing is clear of sand, dirt, and scale.
Debris will clog pump and void
warranty.
5. Protect pump and piping from
freezing. Failure to protect from
freezing could cause severe dam-
age and will void the warranty.
6. Follow priming instructions. Do not
run pump dry.
Installation
Protect pump from the elements by
installing in a basement, garage, tool
shed, or pump house. Install the pump
so the centerline of the pump is as
close as possible to the water level.
Keep installation area clear to provide
access for service and maintenance.
Protect the pump against flooding and
excess moisture.
Make sure the pump has adequate
ventilation. The surrounding tempera-
ture should not exceed 100˚F (38˚C) or
nuisance tripping of thermal overload
protector on the motor may occur.
PUMP PIPING INSTALLATION
Use new pipe for best results. Iron,
Figure 1 - Pipe Installation
311404-001 7/08
JSU50
To Water
Line
To
Well or
Cistern
