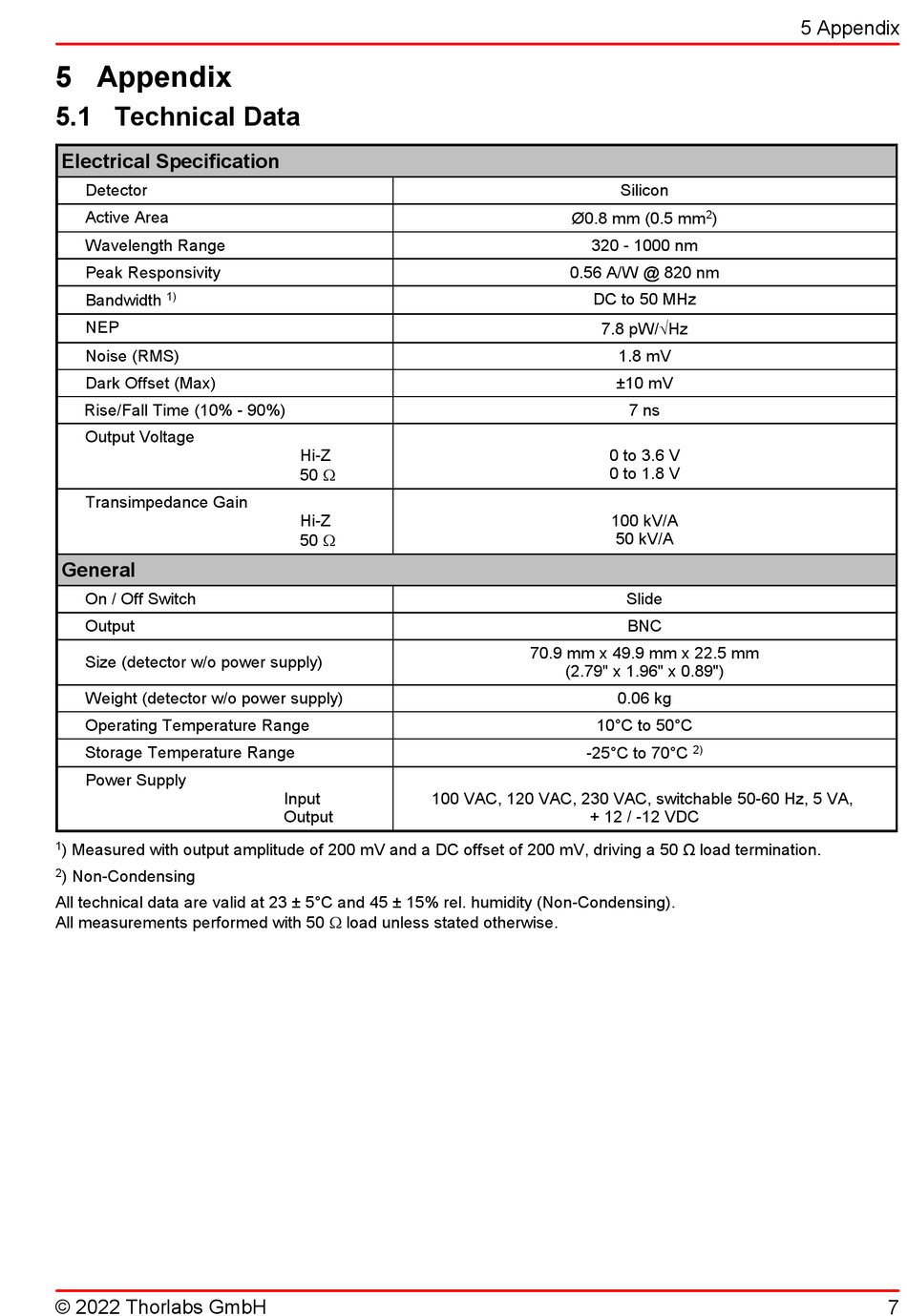

5.1 Technical Data

Electrical Specification
Detector
Active Area
Wavelength Range
Peak Responsivity
1)
Bandwidth
NEP
Noise (RMS)
Dark Offset (Max)
Rise/Fall Time (10% - 90%)
Output Voltage
Transimpedance Gain
General
On / Off Switch
Output
Size (detector w/o power supply)
Weight (detector w/o power supply)
Operating Temperature Range
Storage Temperature Range
Power Supply
1
) Measured with output amplitude of 200 mV and a DC offset of 200 mV, driving a 50 Ω load termination.
2
) Non-Condensing
All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (Non-Condensing).
All measurements performed with 50 W load unless stated otherwise.
© 2022 Thorlabs GmbH
Hi-Z
50 W
Hi-Z
50 W
Input 100 VAC, 120 VAC, 230 VAC, switchable 50-60 Hz, 5 VA,
Output
Silicon
Ø0.8 mm (0.5 mm
320 - 1000 nm
0.56 A/W @ 820 nm
DC to 50 MHz
7.8 pW/ÖHz
1.8 mV
±10 mV
7 ns
0 to 3.6 V
0 to 1.8 V
100 kV/A
50 kV/A
Slide
BNC
70.9 mm x 49.9 mm x 22.5 mm
(2.79" x 1.96" x 0.89")
0.06 kg
10°C to 50°C
2)
-25°C to 70°C
+ 12 / -12 VDC
