PDA05CF2
InGaAs Amplified
Fixed Gain Detector
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDA05CF2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for THORLABS PDA05CF2

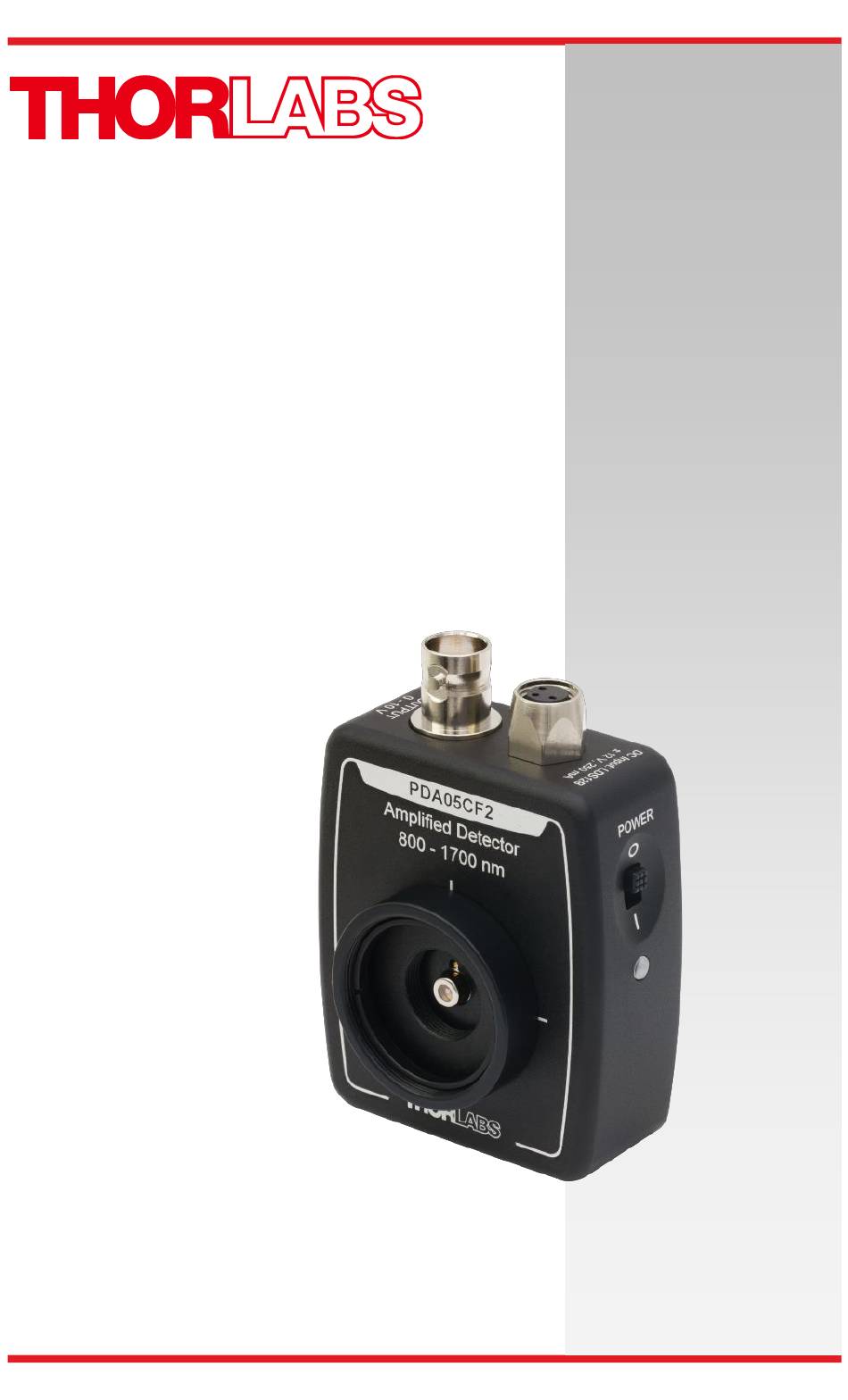

  • Page 1 PDA05CF2 InGaAs Amplified Fixed Gain Detector User Guide...
  • Page 2: Table Of Contents

    4.5. Terminating Resistance ..........5 Chapter 5 Troubleshooting ............... 6 Chapter 6 Specifications ..............7 6.1. Response Curve ............. 9 6.2. Mechanical Drawing ........... 10 Chapter 7 Certificate of Conformance ........... 11 Chapter 8 Regulatory ............... 12 Chapter 9 Thorlabs Worldwide Contacts........13...
  • Page 3: Chapter 1 Warning Symbol Definitions

    InGaAs Amplified Fixed Gain Detector Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or chassis Terminal...
  • Page 4: Chapter 2 Description

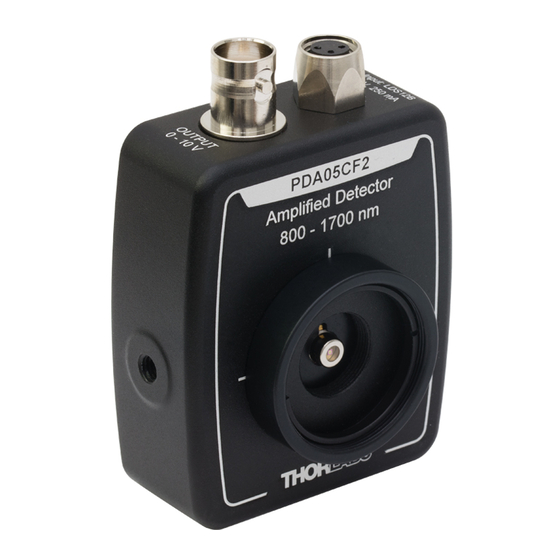

    The PDA05CF2 is an amplified, Indium Gallium Arsenide (InGaAs) detector designed for detection of light signals ranging from 800 to 1700 nm. A buffered output drives 50 Ω load impedances up to 5 V. The PDA05CF2 housing includes a removable threaded coupler (SM1T1) and retainer ring (SM1RR) that is compatible with any number of Thorlabs 1”...
  • Page 5: Chapter 3 Setup

    Attach a 50 Ω coax cable (i.e. RG-58U) to the output of the PDA. When running cable lengths longer than 12" we recommend terminating the opposite end of the coax with a 50 Ω resistor (Thorlabs p/n T4119) for maximum performance. Connect the remaining end to a measurement device such as an oscilloscope or high speed DAQ card.
  • Page 6: Chapter 4 Operation

    Chapter 4 Operation 4.1. Theory of Operation Thorlabs PDA series are ideal for measuring both pulsed and CW light sources. The PDA05CF2 includes a reverse-biased PIN photo diode, mated to a fixed gain transimpedance amplifier, and packaged in a rugged housing.
  • Page 7: Bandwidth And Response

    > 5 kΩ) and 5 V for 50 Ω loads. Adjust the gain so that the measured signal Load level out of the PDA05CF2 is below 10 V (5 V with a 50 Ω load) to avoid saturation. For low terminating resistors, <5 kΩ or 1% error, an additional factor needs to be considered.
  • Page 8: Chapter 5 Troubleshooting

    InGaAs Amplified Fixed Gain Detector Chapter 5: Troubleshooting Chapter 5 Troubleshooting Problem Suggested Solutions Verify that the power is switched on and all connections are secure. Verify the proper terminating resistor is installed if using a Voltage measurement device. There is no signal response. Verify that the optical signal wavelength is within the specified wavelength range.
  • Page 9: Chapter 6 Specifications

    Output Voltage 0 to 10 V (Hi-Z) The PDA05CF2 has a 50 Ω series terminator resistor (i.e. in series with amplifier output). This forms a voltage divider with any load impedance (e.g. 50 Ω load divides signal in half). Rev B, January 3, 2018...
  • Page 10 InGaAs Amplified Fixed Gain Detector Chapter 6: Specifications General On/Off Switch Slide Output BNC (DC Coupled) 2.79" x 1.96" x 0.89" Package Size (70.9 mm x 49.8 mm x 22.5 mm) PD Surface Depth 0.09" (2.2 mm) Weight, Detector Only 0.10 kg SM1T1 Coupler Accessories...
  • Page 11: Response Curve

    InGaAs Amplified Fixed Gain Detector Chapter 6: Specifications 6.1. Response Curve PDA05CF2 Responsivity 900 1000 1100 1200 1300 1400 1500 1600 1700 Wavelength (nm) Rev B, January 3, 2018 Page 9...
  • Page 12: Mechanical Drawing

    InGaAs Amplified Fixed Gain Detector Chapter 6: Specifications 6.2. Mechanical Drawing Page 10 TTN134810-D02...
  • Page 13: Chapter 7 Certificate Of Conformance

    InGaAs Amplified Fixed Gain Detector Chapter 7: Certificate of Conformance Chapter 7 Certificate of Conformance Rev B, January 3, 2018 Page 11...
  • Page 14: Chapter 8 Regulatory

    Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 15: Chapter 9 Thorlabs Worldwide Contacts

    InGaAs Amplified Fixed Gain Detector Chapter 9: Thorlabs Worldwide Contacts Chapter 9 Thorlabs Worldwide Contacts USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. 56 Sparta Avenue 1 Saint Thomas Place Newton, NJ 07860 Ely CB7 4EX...
  • Page 16 www.thorlabs.com...
