  • Page 1 PDA100A2 Si Switchable Gain Detector User Guide...
  • Page 2: Table Of Contents

    4.6. Gain Adjustment ............5 Chapter 5 Troubleshooting ............... 6 Chapter 6 Specifications ..............7 6.1. Response Curve ............. 9 6.2. Mechanical Drawing ........... 10 Chapter 7 Certificate of Conformance ........... 11 Chapter 8 Regulatory ............... 12 Chapter 9 Thorlabs Worldwide Contacts........13...
  • Page 3: Chapter 1 Warning Symbol Definitions

    Si Switchable Gain Detector Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal...
  • Page 4: Chapter 2 Description

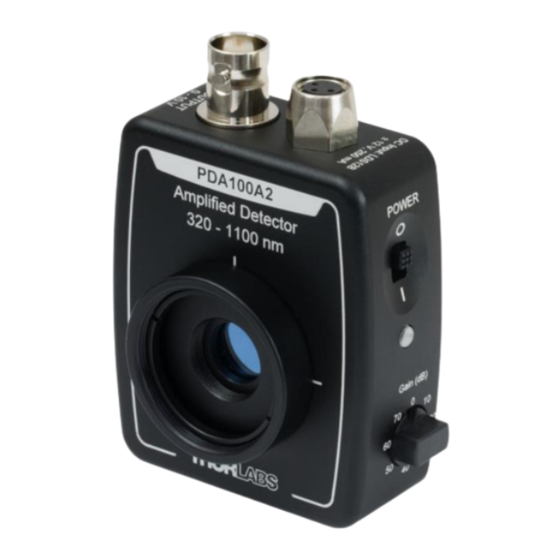

    10 dB steps. A buffered output drives 50 Ω load impedances up to 5 V. The PDA100A2 housing includes a removable threaded coupler (SM1T1) and retainer ring (SM1RR) that is compatible with any number of Thorlabs 1”...
  • Page 5: Chapter 3 Setup

    Power the PDA100A2 on using power switch located on top side of unit. Caution! The active detector area in the PDA100A2 is offset from the front of the housing. When using fiber adapters, make sure that the fiber ferrule does not crash into the detector.
  • Page 6: Chapter 4 Operation

    Chapter 4 Operation 4.1. Theory of Operation Thorlabs PDA series are ideal for measuring both pulsed and CW light sources. The PDA100A2 includes a reverse-biased PIN photo diode, mated to a switchable gain transimpedance amplifier, and packaged in a rugged housing.
  • Page 7: Bandwidth And Response

    > 5 kΩ) and 5 V for 50 Ω loads. Adjust the gain so that the measured signal Load level out of the PDA100A2 is below 10 V (5 V with a 50 Ω load) to avoid saturation. For low terminating resistors, <5 kΩ or 1% error, an additional factor needs to be considered.
  • Page 8: Chapter 5 Troubleshooting

    Si Switchable Gain Detector Chapter 5: Troubleshooting Chapter 5 Troubleshooting Problem Suggested Solutions Verify that the power is switched on and all connections are secure. Verify the proper terminating resistor is installed if using a voltage measurement device. There is no signal response. Verify that the optical signal wavelength is within the specified wavelength range.
  • Page 9: Chapter 6 Specifications

    ±12 mV (Max) ±12 mV (Max) The PDA100A2 has a 50 Ω series terminator resistor (i.e. in series with amplifier output). This forms a voltage divider with any load impedance (e.g. 50 Ω load divides signal in half). Tested at 650 nm wavelength. For NIR wavelengths, the rise time of the photodiode element will become slower which may limit the effective bandwidth of the amplified detector.
  • Page 10 Si Switchable Gain Detector Chapter 6: Specifications Electrical Specifications Detector Active Area Ø9.8 mm (75.4 mm λ Wavelength Range 320 to 1100 nm λ Peak Wavelength 960 nm (Typ.) ( λ Peak Response 0.72 A/W (Typ.) Amplifier GBP 600 MHz 50 Ω...
  • Page 11: Response Curve

    Si Switchable Gain Detector Chapter 6: Specifications 6.1. Response Curve PDA100A2 Responsivity 1000 1100 Wavelength (nm) Rev D, April 21, 2020 Page 9...
  • Page 12: Mechanical Drawing

    Si Switchable Gain Detector Chapter 6: Specifications 6.2. Mechanical Drawing Page 10 TTN1134694-D02...
  • Page 13: Chapter 7 Certificate Of Conformance

    Si Switchable Gain Detector Chapter 7: Certificate of Conformance Chapter 7 Certificate of Conformance Rev D, April 21, 2020 Page 11...
  • Page 14: Chapter 8 Regulatory

    Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 15: Chapter 9 Thorlabs Worldwide Contacts

    Si Switchable Gain Detector Chapter 9: Thorlabs Worldwide Contacts Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc.
