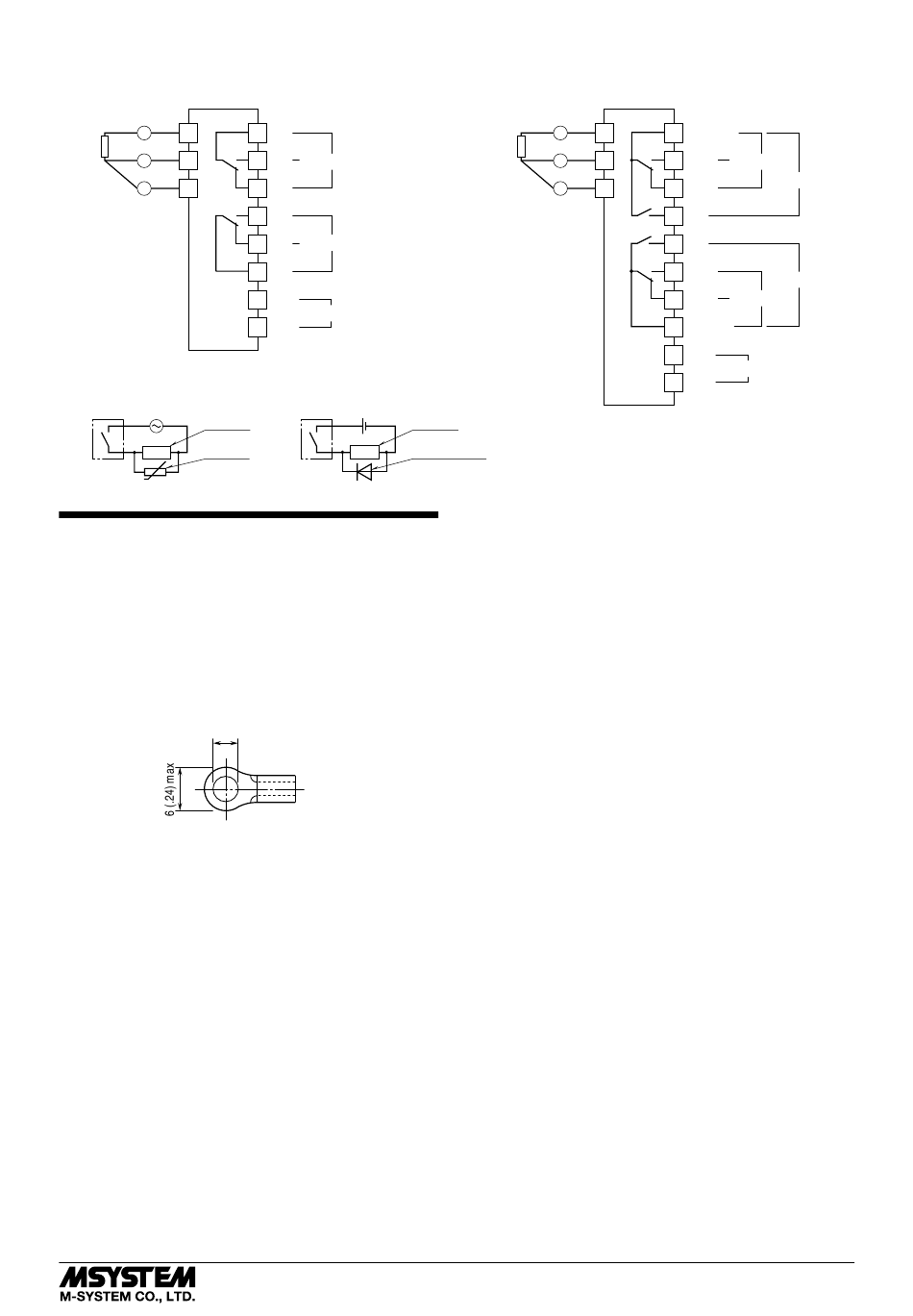

■ CONNECTION DIAGRAM
■ ALARM OUTPUT CODE 2: 2 points
RTD
4
A
3
B
2
B
■ Relay Protection
• AC Powered
Inductive
Load (Coil)
Varistor or
LOAD CR Circuit
U

WIRING INSTRUCTIONS

■ SCREW TERMINAL
Torque: 0.6 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Applicable wire size: 0.25 to 1.65 mm
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
3.3 (.13) max
7
Hc
8
Ha H OUTPUT
9
Hb
12
La
13 L OUTPUT
Lb
14
Lc
15
U(+)
POWER
16
V(–)
• DC Powered
Inductive
Load (Coil)
Diode, Varistor or
CR Circuit
LOAD
(AWG 22 to 16)
2
mm (inch)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
■ ALARM OUTPUT CODE 4: 4 points
RTD
4
A
3
B
2
B
48NAR
7
Hc, HHc
8
HHa HH OUTPUT
H OUTPUT
9
HHb
10
Ha
11
La
12
LLa
L OUTPUT
13 LL OUTPUT
LLb
14
Lc, LLc
15
U(+)
POWER
16
V(–)
