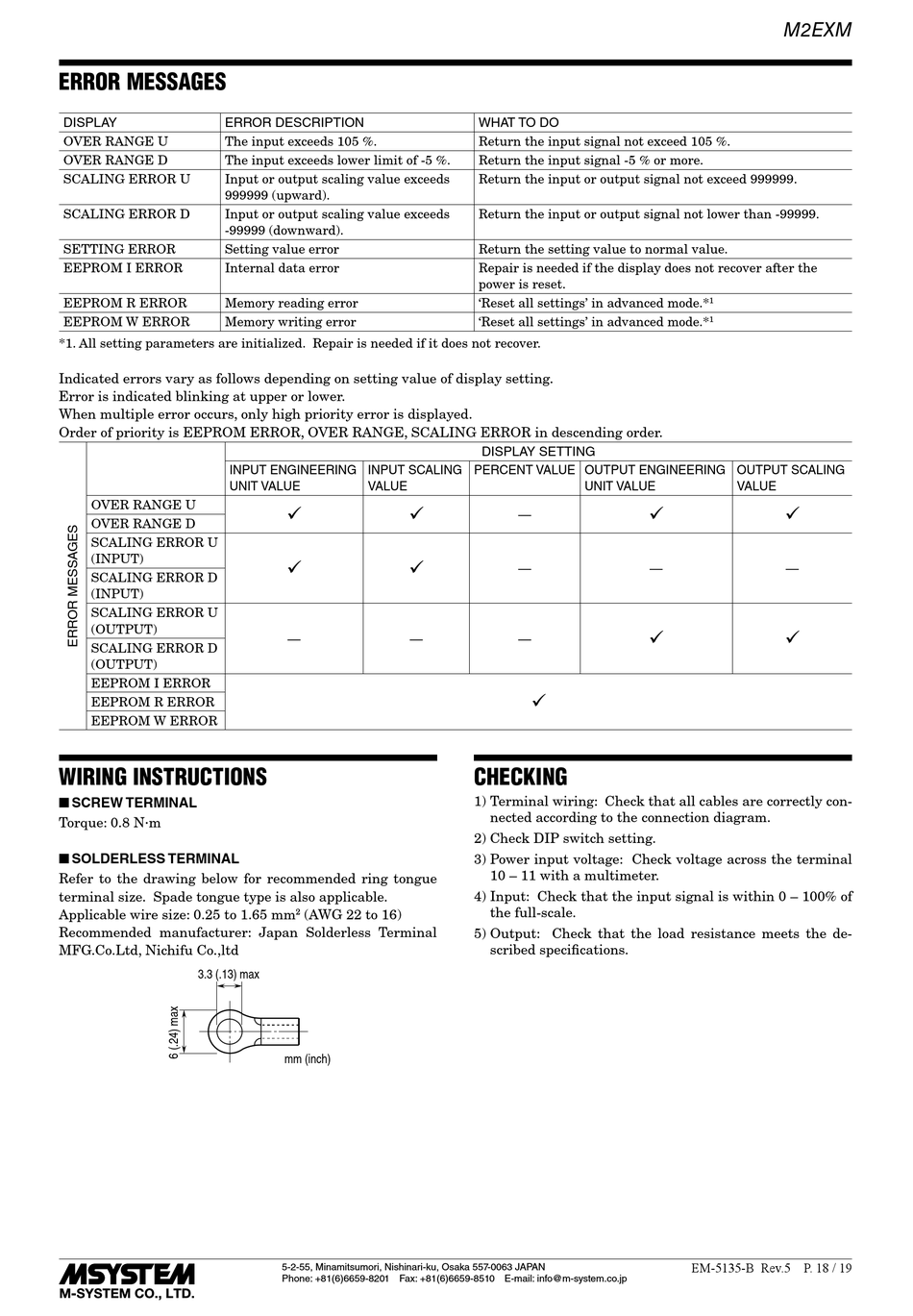

ERROR MESSAGES

DISPLAY ERROR DESCRIPTION
OVER RANGE U The input exceeds 105 %.
OVER RANGE D The input exceeds lower limit of -5 %.
SCALING ERROR U Input or output scaling value exceeds
999999 (upward).
SCALING ERROR D Input or output scaling value exceeds
-99999 (downward).
SETTING ERROR Setting value error
EEPROM I ERROR Internal data error
EEPROM R ERROR Memory reading error
EEPROM W ERROR Memory writing error
*1. All setting parameters are initialized. Repair is needed if it does not recover.
Indicated errors vary as follows depending on setting value of display setting.
Error is indicated blinking at upper or lower.
When multiple error occurs, only high priority error is displayed.
Order of priority is EEPROM ERROR, OVER RANGE, SCALING ERROR in descending order.
INPUT ENGINEERING
UNIT VALUE
OVER RANGE U
OVER RANGE D
SCALING ERROR U
(INPUT)
SCALING ERROR D
(INPUT)
SCALING ERROR U
(OUTPUT)
SCALING ERROR D
(OUTPUT)
EEPROM I ERROR
EEPROM R ERROR
EEPROM W ERROR

WIRING INSTRUCTIONS

■ SCREW TERMINAL
Torque: 0.8 N·m
■ SOLDERLESS TERMINAL
Refer to the drawing below for recommended ring tongue
terminal size. Spade tongue type is also applicable.
Applicable wire size: 0.25 to 1.65 mm
Recommended manufacturer: Japan Solderless Terminal
MFG.Co.Ltd, Nichifu Co.,ltd
3.3 (.13) max
INPUT SCALING
VALUE
 
 
— —
(AWG 22 to 16)
2
mm (inch)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
WHAT TO DO
Return the input signal not exceed 105 %.
Return the input signal -5 % or more.
Return the input or output signal not exceed 999999.
Return the input or output signal not lower than -99999.
Return the setting value to normal value.
Repair is needed if the display does not recover after the
power is reset.
'Reset all settings' in advanced mode.*
'Reset all settings' in advanced mode.*
DISPLAY SETTING
PERCENT VALUE OUTPUT ENGINEERING
UNIT VALUE
—
—
—


CHECKING

1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) Check DIP switch setting.
3) Power input voltage: Check voltage across the terminal
10 – 11 with a multimeter.
4) Input: Check that the input signal is within 0 – 100% of
the full-scale.
5) Output: Check that the load resistance meets the de-
scribed specifications.
M2EXM
1
1
OUTPUT SCALING
VALUE
 
— —
 
EM-5135-B Rev.5 P. 18 / 19
