Statistics
Firmware Upgrade
Reboot
Enable collection of bandwidth statistics

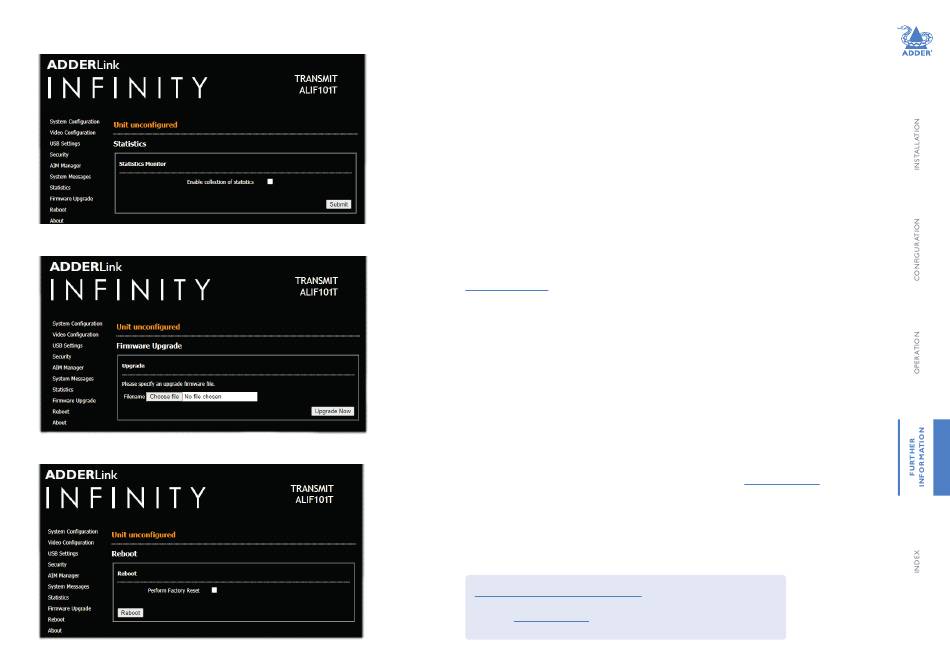

ALIF units can record data transfer statistics from the System port and plot them on a graph for
troubleshooting and optimization purposes. When you enable this option, you will first be presented with a pop
up from which you can choose which aspects you would like to graph: Data throughput, various packet rates
and/or frame rates.
Submit
Click this button after ticking the above checkbox to plot the chosen statistics on a pop up graph.
Upgrade
Use this page to upgrade the main or backup firmware image on ALIF101T unit. Please see the section
Performing an upgrade
for details.
Reboot
Use this page to perform a reboot or a factory reset. Please see the section
To get here
1
Connect your computer to the network port
on the front panel.
2 Run a web browser and enter the IP address of the unit. If the address is unknown,
perform a
manual factory reset
to http://169.254.1.33
3 Click either the Statistics , Firmware Upgrade or Reboot links, as appropriate.
Manual factory reset
for details.
18
