PK300 pump (1)
#10 compression stopper (1)
Approx. 6" length of 1/2" black non-kink tubing (1) bottom of T connector
Approx. 8" length of 1/2" black non-kink tubing (2) sides of T connector
Approx. 2" length of 5/8" clear tubing (1) end of 6" non-kink tubing
½" x ½" x ½" T connector (1)
4mm Allen wrench (1)
17" length of 3/8" i.d. galvanized steel pipe (2)
Hose clamps (4) Note – Hose clamp to be used as flow restrictor if necessary
Wedges (2)
Note: tubing assemblies may be pre-assembled

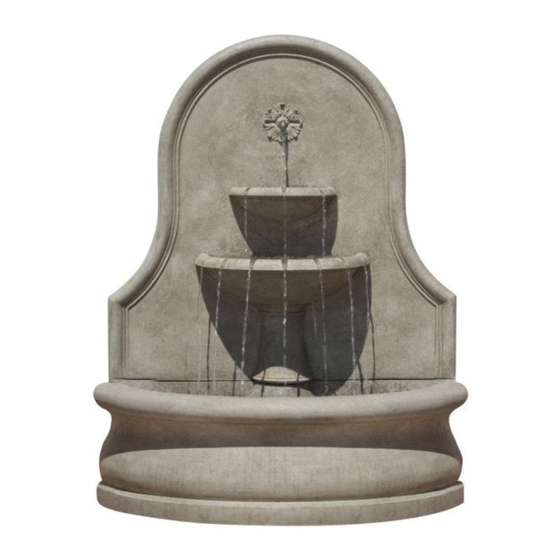

FT- 155 Estancia Fountain
(3 pieces)
COMPONENTS AND PARTS LIST
FT-155A
43.5"Lx13.5"Wx43"H
359 Lbs
FT-155B
13.5"Lx6.25"Wx12"H
32 Lbs
FT-155C
46"Lx26.25"Wx15.25"H
507 Lbs
Pump Kit Parts List
Revised November 18, 2013
Fountain holds
approximately 20
cover FTNCOV-XLG
gallon(s) of water
NOTE: Component photos are not to scale
Tools you will need
Level
4mm Allen wrench (included)
This fountain uses
