- Page 1 LIUSK8B00_eng-01 Instruction Manual for the use and the maintenance of the Radio Remote Control Original instructions Part C: SIDEKICK SK8B Transmitting Unit AIR SERIES...
- Page 3 ACCORDINGLY, IT IS THE RESPONSIBILITY OF THE MACHINE MANUFACTURER ON WHICH THE AUTEC RADIO REMOTE CONTROL IS INTENDED TO BE INSTALLED, to perform an in-depth and accurate risk assessment to determine if the Autec Radio Remote Control is suitable for operating a Machine in conditions of safety and operational...
- Page 4 It is also the responsibility of the Manufacturer and of the design professionals of the Machine on which the Autec Radio Remote Control is to be installed and used to be certain that the structure, condition, organization and markings of the Machine as installed at the facility is appropriate for and will allow for the safe and reliable use and control of the Machine through the Autec Radio Remote Control interface.
- Page 5 Machine operated by or through the Autec Radio Remote Control are fully and properly educated and trained by qualified Personnel in the proper and safe use of the Autec Radio Remote Control and of the Machine, including without limitation complete familiarity...
-
Page 7: Table Of Contents
Instructions for the User ..................34 9.1 Usage restrictions ..................... 34 9.2 User behaviour ....................34 Belt or harness ....................36 10 Maintenance ......................38 11 Malfunction signalled by the Transmitting Unit ............. 39 12 Decommissioning and disposal ................41 AUTEC LIUSK8B00_eng-01... -
Page 8: Information On The Use Of Instructions
(Part A) of the Manual provided with the Radio Remote Control. Structure of the Instruction Manual The Manual for the use and maintenance of Autec Radio Remote Controls consists of different parts, that altogether form the Manual; the Manual must be read carefully, understood and applied by the Radio Remote Control's Owner, User and by all those Persons that, for any reasons, may operate with the Radio Remote Control or with the Machine where it is installed. - Page 9 Receiving Unit. Usage and maintenance instruction as a whole are to be considered as an integral part both of the Autec Radio Remote Control and of the Machine, system, device or Machinery system where the Radio Remote Control is installed.
-
Page 10: Caption And Terminology
Caption and terminology Contact Autec if any of the instructions, symbols, warnings or images are not clear and understandable. In this part of the Manual, the terms listed below have the same meaning explained in the corresponding paragraph of the general part (Part A):... -
Page 11: To Whom The Instructions Are Addressed
Regulation for the storage of instructions are described in the paragraph with the same title in the general part: please refer to that part. Intellectual property Restrictions connected to intellectual property are described in the paragraph with the same title in the general part: please refer to that part. AUTEC LIUSK8B00_eng-01... -
Page 12: Brief Product Presentation

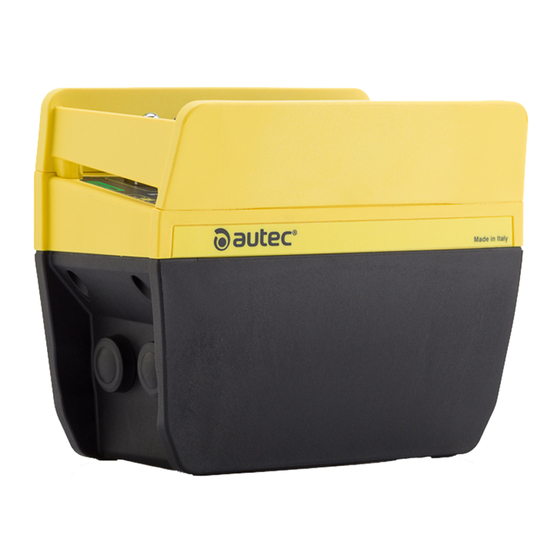

Brief product presentation Series, Radio Remote Control and Unit The object of this part of the Manual is the SIDEKICK SK8B Transmitting Unit of an Autec Air series' Radio Remote Control. Autec Air series' Radio Remote Controls are designed to be used on Machines and provide a command interface to their command and control system, to be used from an appropriate distance and position. -
Page 13: Description Of The Transmitting Unit
MANUF. DATE XXXX TU ID: XXXXXXX TU ID: XXXXXXX MANUF. DATE XXXX Actuators (selectors, pushbuttons) Transmitting Unit identification plate Battery Power keyswitch Battery housing GSS or EMS pushbutton Display START pushbutton Radio Remote Control identification plate Technical data plate AUTEC LIUSK8B00_eng-01... - Page 14 MANUF. DATE XXXX TU ID: XXXXXXX TU ID: XXXXXXX MANUF. DATE XXXX Actuators (selectors, pushbuttons) Power keyswitch Battery LEDs Battery housing GSS or EMS pushbutton Radio Remote Control identification plate START pushbutton Transmitting Unit identification plate Technical data plate LIUSK8B00_eng-01 AUTEC...
-
Page 15: Technical Data
A Technical Data Sheet must always be kept together with this Manual: if you need to use the Technical Data Sheet for administrative purposes (tests, check, etc.), make a copy of it. The wiring of the Receiving Unit's outputs must always reflect the wiring indicated in the Technical Data Sheet. AUTEC LIUSK8B00_eng-01... -
Page 16: Plates
Behind the belt on the back side and the Transmitting Unit plate of the Transmitting Unit identification number (TU ID) MODEL, TYPE and main Back side of the Transmitting Transmitting Unit technical data, Technical data plate Unit marking and possible Radio Remote Control marks LIUSK8B00_eng-01 AUTEC... -
Page 17: Light And Acoustic Warning Signals
Data Feedback function part (see paragraph 8.14). The meaning of LEDs related to the Data Feedback function are decided and established by the Machine Manufacturer depending on the Machine's functions for which he wants to receive information. AUTEC LIUSK8B00_eng-01... - Page 18 The Transmitting Unit has about 1-hour run time The red LED blinks slowly (one blink per second). after the onset of signal. The Transmitting Unit has a 10-minute run time The red LED blinks quickly. after the onset of signal. LIUSK8B00_eng-01 AUTEC...
- Page 19 Very low power level (red bar): the battery has 10min run time from the beginning of this signal. The Unit is about to switch off (blinking red bar): the battery has 2min run time from the beginning of this signal. AUTEC LIUSK8B00_eng-01...
-
Page 20: Acoustic Signals
- During start up, the Radio Remote Control detects that a wrong Key ID 0-1 or ID internal tx memory has been inserted in the Transmitting Unit, or this is a BACK-UP UNIT. The meaning of the acoustic signals cannot be modified. LIUSK8B00_eng-01 AUTEC... -
Page 21: General Operating Instructions
Pull the power keyswitch to remove it from its receptacle. START pushbutton The START pushbutton is used to: - start the Radio Remote Control (see paragraph 8.9) - activate the horn when the Radio Remote Control is started. AUTEC LIUSK8B00_eng-01... -
Page 22: Gss Pushbutton
Machine immediately whenever a dangerous condition occurs. The Machine Manufacturer and/or the Installer must provide the User with the instructions and warnings concerning possible risks that may originate from the Machine stop (by way of example: movement inertia, swinging load…). LIUSK8B00_eng-01 AUTEC... -
Page 23: Display Pushbutton (If The Transmitting Unit Has A Display)
The display lighting stays on for a time set by the Machine Manufacturer. Battery The Air series' Transmitting Units can only be powered by Autec rechargeable batteries. For any warnings and instructions regarding the battery, see "Part E" in the Instruction Manual. - Page 24 Commands associated to the actuators that are activated during the procedure to check the battery charge level are not sent to the Machine. If the Transmitting Unit has a display, the battery charge level is shown by the corresponding icon on the display. LIUSK8B00_eng-01 AUTEC...
-
Page 25: Id Internal Tx Memory
- Tilt: the Zero-G sensor activates when the Transmitting Unit is tilted for more than one second by a defined dangle with respect to the ground. The value of the tilting angle is set by Autec, but it is decided by the Machine Manufacturer and/or by the installer (possible options: 45°/60°/90°). -
Page 26: Starting Up The Radio Remote Control
Machine Manufacturer and/or the Installer of the Radio Remote Control can also enable a PIN code. Autec will enable the PIN code for the Radio Remote Control start up only upon request by the Machine Manufacturer and/or the Radio Remote Control Installer. - Page 27 Note: the default PIN code set by Autec is the following: - PIN 1 = START - PIN 2 = FUNCTION - PIN 3 = START Autec will set a customized PIN code only upon request by the Machine Manufacturer or the Installer. 8.9.3 Procedure to modify the PIN code If a PIN code is needed for the Transmitting Unit, it can be modified to limit the use of the Radio Remote Control.
-
Page 28: Command Activation
- The red LED blinks fast: the Transmitting Unit has a 10-minute run time from the onset of signal, after which the Transmitting Unit will automatically switch off. It is necessary to bring the Machine to a safe state and replace the battery with a charged one (see paragraph 8.6). LIUSK8B00_eng-01 AUTEC... -
Page 29: Switching Off The Transmitting Unit
Activating any actuator corresponding to a movement command reduces the predetermined automatic switch-off time (SWITCH-OFF) to zero. Setting or removal of the automatic switch off time (SWITCH-OFF) is done by Autec and decided by the Machine Manufacturer or by the Installer, depending on the operation and functions they need on the Machine. -
Page 30: Data Feedback Function
If the Transmitting Unit has an LED array for the Data Feedback function, specific Machine conditions are signalled if they are illuminated (by way of example: load limits, limit switch). The signalled conditions depend on the settings chosen by the Machine Manufacturer. LIUSK8B00_eng-01 AUTEC... -
Page 31: Cable Control
Transmitting Unit and the other on the Receiving Unit (or placed where established by the Machine Manufacturer). When using the cable control, the working features (e.g. the meaning of actuators and the Data Feedback function) do not change. AUTEC LIUSK8B00_eng-01... - Page 32 - Leave the battery inside the Transmitting Unit, even though the power supply comes from the Receiving Unit. The battery is not, in any case, recharged through the cable control: it can only be recharged through its appropriate battery charger provided together with the system. LIUSK8B00_eng-01 AUTEC...
-
Page 33: Back-Up Unit
BACK-UP UNIT, so that all the Units belonging to the Radio Remote Control show the same serial number. Autec cannot be held responsible if the serial number of the Transmitting Unit to be replaced has not been marked on BACK-UP UNIT. -
Page 34: Instructions For The User
Person responsible for the work. - Make sure that the Transmitting Unit and the Receiving Unit are whole and work perfectly. - Make sure that the Machine reacts correctly to the commands activated by the Autec Radio Remote Control. - Page 35 - Keep at a safe distance from any risk situations originating from the use of the Machine where the Autec Radio Remote Control is installed. - Avoid doing anything else while using the Radio Remote Control, such as, by way of example, operate other Machines and/or other devices, eat and/or drink, use communication devices (phone, radio phone, etc.), keyboards, computers, IT devices or AV equipment, or carry out...
-
Page 36: Belt Or Harness
The Transmitting Unit always comes with a waist belt: the User must mount the belt on the Transmitting Unit and use it as explained in paragraph 9.3.1. Replace the belt or harness if it is damaged or worn. 9.3.1 Waist belt Assembly LIUSK8B00_eng-01 AUTEC... - Page 37 AUTEC LIUSK8B00_eng-01...
-
Page 38: Maintenance
Transmitting Unit, to the User, to people and/or property. Maintenance Instructions for correct Radio Remote Control maintenance are described in the chapter "Maintenance" included in "Part A" of the Instruction Manual. Therefore, please refer to that part of the Manual. LIUSK8B00_eng-01 AUTEC... -
Page 39: Malfunction Signalled By The Transmitting Unit
Bring the actuators related to movement commands to the rest position, then activate and The green LED blinks fast. Temporary loss of radio link. release START. When START is released, the green LED starts blinking slowly. AUTEC LIUSK8B00_eng-01... - Page 40 The green LED and the red LED The power keyswitch is not are off at Radio Remote Control's Insert the power keyswitch. inserted. start up The battery is completely Insert a charged battery. discharged or not inserted. LIUSK8B00_eng-01 AUTEC...
-
Page 41: Decommissioning And Disposal
Decommissioning and disposal Instructions for correct decommissioning and disposal of Radio Remote Controls are described in chapter "Decommissioning and disposal" in "Part A" of the Instruction Manual. Therefore, please refer to that part of the Manual. AUTEC LIUSK8B00_eng-01... - Page 44 Via Pomaroli, 65 - 36030 Caldogno (VI) - Italy Tel. +39 0444 901000 - Fax +39 0444 901011 info@autecsafety.com - www.autecsafety.com MADE IN ITALY...
