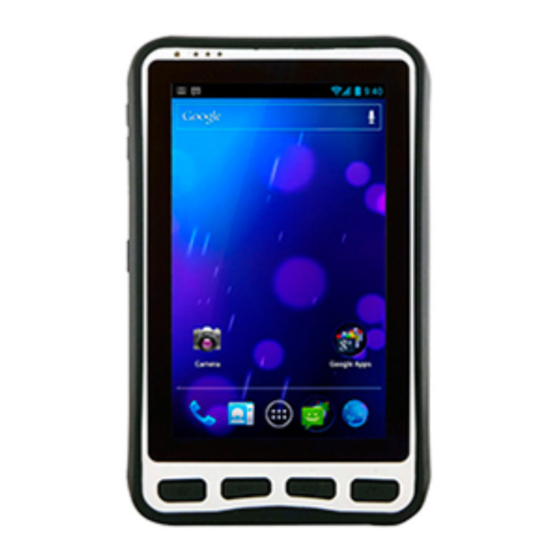

- Page 1 Winmate M700DT4 Tablet PC Android 4.1 User Guide Version 1.00 Revision A August 2013...
-
Page 2: Table Of Contents
Safety Precautions ....................4 Battery Safety Information ..................4 Electrostatic Discharge ..................5 Driving ........................5 Chapter 2: About Winmate M700DT4 Series About M700DT4 ....................6 Features ....................... 7 Getting started ....................... 7 Sim Card and SD Card Installation ..............8 User Replaceable Battery Installation .............. - Page 3 Switch between Front and Back Cameras ............24 Shoot a Video...................... 25 Opening a Gallery ....................25 Chapter 6: Data Capture Scanning Barcode ....................26 Scanning Tips and Considerations ..............27 Chapter 7: Accessories M700DT4 Standard Accessories ................ 28 M700DT4 Optional Accessories ................. 28...
-
Page 4: Chapter 1: Safety Information
User Guide Chapter 1: Safety Information Exposure to Radio Use M700DT4 series is equipped with Bluetooth, WI-Fi and Cellular modem radio. In some situation or area, user may be required to turn off the radios. For example; User’s needs to turn the phone OFF when in an area posted “TURN OFF RADIO SIGNAL.”... -
Page 5: Safety Precautions
If battery fluid leaks onto the skin or cloth, wash the affected area with clean water Please contact your current Winmate distributor or local Winmate vendor if you suspect damage to your Tablet PC or battery for inspection and reparation. -
Page 6: Electrostatic Discharge
Winmate M700DT4 Tablet PC User Guide Electrostatic Discharge Please follow proper electrostatic discharge precaution to prevent static damage that can harm electronic components inside your device Driving Using mobile device or accessory while driving may cause distraction and maybe illegal in some areas where you drive. Please obey the laws and regulations on... -
Page 7: About M700Dt4
600 pixel TFT LCD display resolution. Other new era tech includes Built-in WLAN 802.11 2.4GHz b/g/n, Bluetooth 4.0, built-in TI WL1281 or optional Neo-6 GPS module, and optional 3G Module. Features This section provides the features of the M700DT4 and describes how to set this device for the first time... -
Page 8: Features
Features 7” Touch Screen Projected Capacitive touch screen Press and hold the button for 3 seconds to turn on M700DT4 Press to turn on/off the screen Press and hold the button for 3 seconds to select: Power Off -- to turn off the M700DT4... -
Page 9: Sim Card And Sd Card Installation
SIM Card and SD Card Installation To Install the SIM Card and SD Card: 1. Place the M700DT4 facing up and then locate the protective rubber bumper 2. Open the protective rubbed bumper 3. Locate the SD and SIM Card as follows 4. -
Page 10: Battery Charging
It is suggested that user use AC Power when charge the Tablet PC for the first time. Please charge the battery before using the Tablet PC for the first time, charge the battery until the LED indicator turns solid green. To charge the M700DT4, use a cable or a docking with appropriate power supply. -
Page 11: Turning The M700Dt4 Off
Winmate M700DT4 Tablet PC User Guide Turning the M700DT4 Off 1. To turn off the device, press and hold the power button until the phone options menu appears, tap the Power off. 2. User can also use the Phone options menu to put the device into silent or airplane mode, see features table. -
Page 12: Chapter 3: Using Android 4.1 Operating System
Winmate M700DT4 Tablet PC User Guide Chapter 3: Using Android 4.1 Operating System Wake Up the Phone If you do not use the phone for a while, the screen dims and then darkens to conserve the battery. To wake up the phone: 1. -
Page 13: Using The Home Screen
Winmate M700DT4 Tablet PC User Guide Swipe or slide – Quickly move your finger across the surface of the screen, without pausing it when you first touch it. (e.g. scroll a page or a list up or down) ... -
Page 14: View Other Parts Of The Home Screen
Winmate M700DT4 Tablet PC User Guide To move an item on the Home screen: 1. Tap and hold the item you want to move, until it can be moved. 2. Drag it to a new location on the screen 3. Place the item where you want to put it and lift your finger To remove an item from the Home screen: 1. -
Page 15: Status And Notification Icons
Winmate M700DT4 Tablet PC User Guide Status and Navigation Icons The status bar appears at the bottom right of every screen, along with the current time and on the bottom left are navigation icons. Navigation icons Status icons Navigation Icons... -
Page 16: Using The On-Screen Keyboard
Winmate M700DT4 Tablet PC User Guide Notification Icon The following icons indicate that you have received notification Using the On-Screen Keyboard User will be able to enter text using the On-Screen Keyboard. Some applications will launch the keyboard automatically. In others, user needs to touch a text field where user wants to enter text to launch the keyboard. -
Page 17: Editing Text
Winmate M700DT4 Tablet PC User Guide 4. To enter symbols and other characters, tap and hold one of the top-row keys and slide your finger up to the list of the options. Lift your finger when you find your selection. -
Page 18: Display Setting
Winmate M700DT4 Tablet PC User Guide 2. Place the cursor in the text field where you want to paste the text, user can paste text that you copied from one application into a text field in any application 3. Tap and hold into the location that you want to paste, Tap Paste in the menu that... -
Page 19: Sounds Setting
Winmate M700DT4 Tablet PC User Guide Sounds Setting 1. Tap and select Settings and then tap Sound 2. Tap Volumes and then user can select to disable or adjust the Music, video games & other media as well as notifications and Alarms. -
Page 20: Change The Keyboard Language
Winmate M700DT4 Tablet PC User Guide Change the keyboard language The current keyboard language is displayed on the Settings icon and user can switch languages. 1. Tap the settings icon, there are two input options input languages and android keyboard settings 2. -
Page 21: Chapter 4: Connecting To Network And Devices
Winmate M700DT4 Tablet PC User Guide Chapter 4: Connecting to Network and Devices Connecting to Mobile Networks When users assemble their PDA with a SIM card from service provider, their phone is configured to use their provider networks for voice calls and for transmitting data. -
Page 22: Add A Wi-Fi Networks
Winmate M700DT4 Tablet PC User Guide The device scans for available Wi-Fi networks and displays the list of it. Secured networks are indicated with a lock icon If the phone finds a network that you have connected previously, it connects to it automatically. -
Page 23: Connecting To Bluetooth Devices
Winmate M700DT4 Tablet PC User Guide Connecting to Bluetooth Devices Turn Bluetooth On or Off 1. Tap and then tap Settings 2. Tap Wireless & networks and then select Bluetooth to turn it on Connect to a Bluetooth device 1. Tap and then tap Settings 2. - Page 24 Winmate M700DT4 Tablet PC User Guide 2. After received a notification that the USB is connected, tap the notification icon and then tap Connected as a media device 3. Select Media device (MTP) to let user transfer media files on windows, or using Android File Transfer on Mac 4.
-
Page 25: Chapter 5: Using The Camera
Winmate M700DT4 Tablet PC User Guide Chapter 5: Using the Camera Winmate M700DT4 equipped with 5 MP on the rear side, which user can use to capture photos or video Open Camera 1. Tap the launcher and then tap Camera Camera opens in Portrait mode, ready to take a picture or shoot a video Make sure the protective lens cover is clean before taking pictures. -
Page 26: Shoot A Video
Winmate M700DT4 Tablet PC User Guide Shoot a video 1. Tap to switch from camera to video mode 2. Point the lens to record the scene where you want to start 3. Tap the On Screen Start Video icon The time remaining to shoot counts down at the left; when less than a minute is left, the countdown turns red 4. -
Page 27: Chapter 6: Data Capture
With an integrated laser scanner user will be able to have easy point, aim and shoot operation. Our M700DT4-B2 scan engine comes in compact size that attached on the top right of the devices Scanning Barcodes 1. -
Page 28: Scanning Tips And Considerations
Winmate M700DT4 Tablet PC User Guide 4. Ensure the entire barcode is within the rectangular area formed by the brackets in the laser framing Correct framing Wrong framing 5. Release the trigger Scanning Tips and Considerations 1. Distance Scanning device will decode perfectly over a certain working range, there are minimum and maximum distance from the barcode. -
Page 29: Chapter 7: Accessories
Adapter with Standard Power Cord Input : AC 100-240V 50/60 Hz (Euro / US standard type, 1.8 m) Output : 5V DC M700DT4 Manual & Driver CD Allows user to make an update Recovery CD Allows users to make a recovery M700DT4 Optional Accessories...
