Technical Information
PLUS+1 DM1x00 Series Displays
Installation

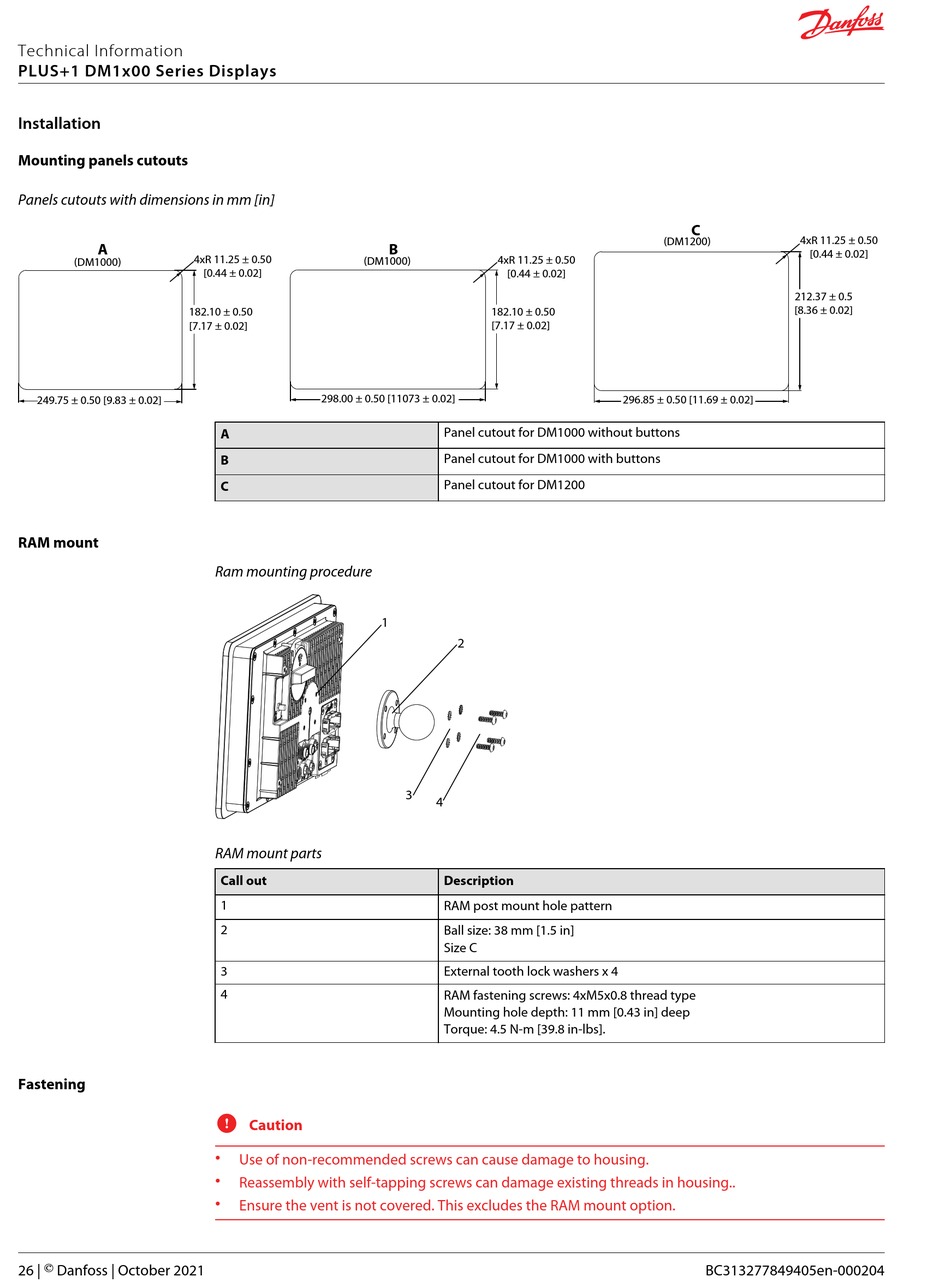

Mounting panels cutouts

Panels cutouts with dimensions in mm [in]
A
4xR 11.25 ± 0.50
(DM1000)
182.10 ± 0.50
[7.17 ± 0.02]
249.75 ± 0.50 [9.83 ± 0.02]

RAM mount

Fastening

26 | © Danfoss | October 2021
(DM1000)
[0.44 ± 0.02]
298.00 ± 0.50 [11073 ± 0.02]
A
B
C
Ram mounting procedure
1
RAM mount parts
Call out
1
2
3
4
C
Caution
•
Use of non-recommended screws can cause damage to housing.
•
Reassembly with self-tapping screws can damage existing threads in housing..
•
Ensure the vent is not covered. This excludes the RAM mount option.
B
4xR 11.25 ± 0.50
[0.44 ± 0.02]
182.10 ± 0.50
[7.17 ± 0.02]
Panel cutout for DM1000 without buttons
Panel cutout for DM1000 with buttons
Panel cutout for DM1200
2
3
4
Description
RAM post mount hole pattern
Ball size: 38 mm [1.5 in]
Size C
External tooth lock washers x 4
RAM fastening screws: 4xM5x0.8 thread type
Mounting hole depth: 11 mm [0.43 in] deep
Torque: 4.5 N-m [39.8 in-lbs].
C
4xR 11.25 ± 0.50
(DM1200)
212.37 ± 0.5
[8.36 ± 0.02]
296.85 ± 0.50 [11.69 ± 0.02]
BC313277849405en-000204
[0.44 ± 0.02]
