- Page 1 Technical Information PLUS+1® Mobile Machine Displays DM1x00 Series www.danfoss.com...
- Page 2 December 2019 Under Pin assignments C1-C9, corrected tables for C5,C6, C7, and C8; and under DM1x00 0201 Series Displays description, Dual core 1.2 GHz i.MX6 replaced with Dual core 800 MHz i.MX6 October 2019 First edition 0101 © Danfoss | October 2021 BC313277849405en-000204...
-
Page 3: Table Of Contents
DM1x00 Series Displays dimensions............................22 Button options....................................22 Pin assignments C1—C9................................23 Standard Mount....................................25 Mounting panels cutouts................................26 RAM mount...................................... 26 Fastening......................................26 Visibility and viewing radius..............................27 Display faulty application recovery............................27 Cleaning......................................27 © Danfoss | October 2021 BC313277849405en-000204 | 3... -
Page 4: Technical Information (Ti)
GUIDE applications to target PLUS+1 ® hardware modules • How to upload and download tuning parameters • How to use the PLUS+1 ® Service Tool Latest version of technical literature Comprehensive technical literature is online at www.danfoss.com © Danfoss | October 2021 BC313277849405en-000204... -
Page 5: User Liability And Safety Statements
User liability and safety statements OEM responsibility The OEM of a machine or vehicle in which Danfoss products are installed has the full responsibility for all consequences that might occur. Danfoss has no responsibility for any consequences, direct or indirect, caused by failures or malfunctions. - Page 6 • Keep ambient light sensor area clean and uncovered for best operation. • Danfoss graphical displays are not user serviceable. Return the display to the factory in case of failure. © Danfoss | October 2021 BC313277849405en-000204...
-
Page 7: Machine Wiring Guidelines
• Do not use electrical components to ground the welder. • Clamp the ground cable for the welder to the component that will be welded as close as possible to the weld. © Danfoss | October 2021 BC313277849405en-000204 | 7... -
Page 8: Overview

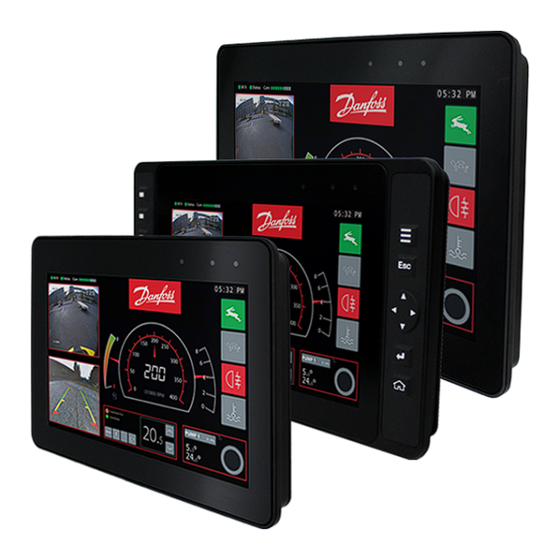

Technical Information PLUS+1 DM1x00 Series Displays Overview DM1x00 Series Displays description The Danfoss DM1x00 display series bring modern appearance and performance to mobile machine markets with two display platforms, expanding the PLUS+1 ® family. The DM1x00 series was developed for best operator viewability with its high brightness, optical bonding, anti-glare, anti-reflection, oleophobic coating and wide viewing angles. -
Page 9: Lcd Features
Screen Size 12.1 Inch Resolution 1280 x 800 Pixels Brightness cd/m2 Value includes cover glass Contrast Ratio 500:1 Viewing Angle ± 85 Degree vertical and horizontal Color Depth Bits 8 bits per color © Danfoss | October 2021 BC313277849405en-000204 | 9... -
Page 10: Ordering Information
Description DM1000 10.1" Non-Touch DM1000T 10.1" Touch DM1200T 12.1" Touch B—Not configured Description C—WIFI/BT/GNSS Description Without WIFI/BT/GNSS With WIFI/BT/GNSS D—Buttons Description No Buttons 2x8 Buttons 1x8 + Navigation Buttons E—Not configured Description 10 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 11: Related Products
Service and (Annual renewal with 11179524 to keep the software Diagnostic Tool and Screen Editor) updates) Connection tools DEUTSCH Extraction tool size 20 red 10100744 DEUTSCH solid contacts terminal crimp tool 10100745 © Danfoss | October 2021 BC313277849405en-000204 | 11... -
Page 12: Input/Output Types And Specifications
Module input pin supports one of the above functional types. For pins with multiple functions, input configurations are user programmable using PLUS+1 ® GUIDE templates. When using inputs in digital mode, it is advised to use the software selectable pull-up or pull-down resistors. 12 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 13: Digital/Analog
±26 — Input impedance kΩ No pull up or pull down Input impedance (5V/GND) kΩ 13.9 14.1 14.3 Pull up or pull down Input impedance (2.5V) kΩ Pull up and pull down © Danfoss | October 2021 BC313277849405en-000204 | 13... - Page 14 In steps of 1 Hz Rising voltage threshold — — 4.25 Voltage required for frequency input Falling voltage threshold 0.97 — — Voltage required for frequency input Input impedance kΩ No pull up or pull down 14 | © Danfoss | October 2021 BC313277849405en-000204...
- Page 15 — — — Worst case offset and gain µA — — ±743 = 28.9 mA Measure error Non-linearity µA — — ±42 — Input impedance Ω No pull up or pull down © Danfoss | October 2021 BC313277849405en-000204 | 15...
-
Page 16: Can Shield And Analog Input
With 120 Ω termination. The default baud rate is 250 kbps. 1000 Maximum input voltage — CAN+ and CAN- range Software updates using CG150 are supported via CAN0 and CAN1 channels. 16 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 17: Usb Communication
Unit Minimum Typical Maximum Comment Output Voltage (12V) Output Voltage (24V) Output Current (12V) Output Current (24V) Officially validated digital camera formats RTSP, RTP IP Transport Protocol H264, MJPEG Video Stream Format © Danfoss | October 2021 BC313277849405en-000204 | 17... -
Page 18: Officially Validated Analog Camera Formats
Auto- negotiation Max input voltage range V Receiver input Audio outputs Symbol Description Unit Minimum Typical Maximum Comment HP Out Output Power 62.5 @1kHz Right and left channel included - Stereo output 18 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 19: Wifi / Bluetooth
Note for the EU region: 5GHz U-NII-1 band is restricted to in-cab applications only Description Unit Minimum Typical Maximum Comment Transmit Power (802.11b) 10.5 Transmit Power (802.11g/n) dBm Transmit Power (802.11a/n) dBm © Danfoss | October 2021 BC313277849405en-000204 | 19... -
Page 20: Product Ratings
DM1x00 displays are designed to operate with a nominal 9 to 36 Vdc power supply with reverse polarity protection. Supply voltage/maximum current ratings Description Unit Minimum Typical Maximum Comment Operating temperature °C — Storage temperature °C — 20 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 21: Ingress Protection (Ip) Rating
All DEUTSCH connector pins. To achieve operation at the lowest supply voltage range, Danfoss has the following recommendations: 1. Use the largest appropriate gauge wire for power and ground to reduce cabling voltage drops. 2. Disable unused peripherals (WiFi, Bluetooth, GNSS, etc). -
Page 22: Installation
4 x R10 294.4 [11.60] 310.30 [12.22] 7.6 [0.30] Flange 1 Light Sensor 2 RGB LED 3 RGB LED 209.90 [8.26] 228.80 [9.01] 12.1 inch Button options Standard (left) and Navigation (right) button options 22 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 23: Pin Assignments C1-C9
C3—USB Device M12 4 Pin, Male, 'A' key Name Device Data + Device Data - Host Vbus Ground C4—USB Host M12 4 Pin, Male, ‘D’ Code Name Host Data + Host Data - Host Vbus Ground © Danfoss | October 2021 BC313277849405en-000204 | 23... - Page 24 Signal In 4 C8—Ethernet M12 4 Pin, 'D' Code Name TxD+ RxD+ TxD- RxD- C9—RS232/Stereo M12 8 Pin, 'A' Code Name Ground Manufacturing Use Only (Leave Floating) Left Channel Right Channel Ground 24 | © Danfoss | October 2021 BC313277849405en-000204...
-
Page 25: Standard Mount
External tooth lock washers x 4 Fasting screws: 4xM5x0.8 thread type Mounting hole depth: 12 mm [0.47 in] deep Torque: 4.5 N-m [39.8 in-lbs] Panel mounting kit Quantity Description Screws Washers Gasket Bracket © Danfoss | October 2021 BC313277849405en-000204 | 25... -
Page 26: Mounting Panels Cutouts
Use of non-recommended screws can cause damage to housing. • Reassembly with self-tapping screws can damage existing threads in housing.. • Ensure the vent is not covered. This excludes the RAM mount option. 26 | © Danfoss | October 2021 BC313277849405en-000204... -
Page 27: Visibility And Viewing Radius
This recovery function is activated by the Communication > Recover ECU menu in the PLUS+1 ® Service Tool. Cleaning Do not pressure wash. Clean using a dry, soft, lint-free cloth, such as a micro-fiber cloth. © Danfoss | October 2021 BC313277849405en-000204 | 27... - Page 28 Phone: +86 21 2080 6201 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
