- Page 1 User Guide Continuity tester www.danfoss.com...
- Page 2 Continuity tester User Guide...
-
Page 3: Table Of Contents
If alarm sounds, stop work and check troubleshooting page in the User guide. Product number: 088L0028 User Guide... -
Page 4: Continuity Tester Components

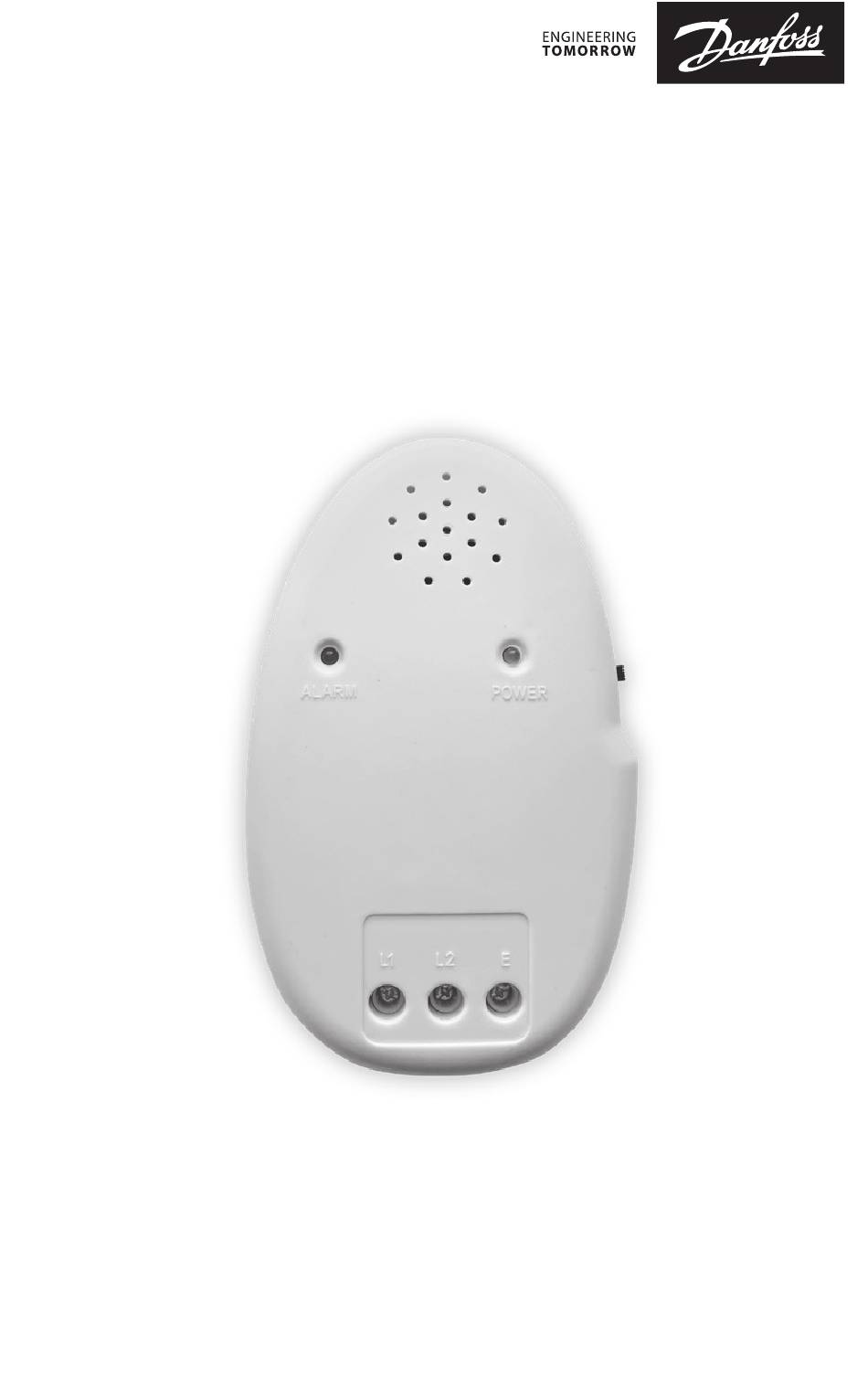

Continuity tester AAA batteries User Guide User Guide Continuity tester www.danfoss.com Safety instructions The safety instruction de nes the type of tools and activity, which impacts using of the Continuity tester. Verify that the mat or cable is not connected to a power source or live voltage! -
Page 5: Preparation
Continuity tester Preparation Open the battery compartment cover and insert two AAA size batteries (included). Make sure the batteries are installed correctly (see Figure 1). Fig. 1 Replace the battery compartment cover and switch the unit “ON” (see Figure 2). Fig. -
Page 6: Operation
Continuity tester The alarm should sound and the red light should be lit when there are no connections to an under oor heating mat or loose cable. If these things do not occur, inspect the battery connection or replace the batteries. - Page 7 Continuity tester 1. Cold lead (power cable) 2. Lead wires 3. Earth wire (Ground wire) 4. Switch ALARM POWER Fig. 3 FOR UP TO TWO MATS OR CABLES: Connect one lead wire (not the earth wire) from one mat or cable into the L1 terminal.
- Page 8 Continuity tester Finally, connect all the earth wires from the mats or cables together to the E terminal (see Figure 4). To L1 To L2 To E Fig. 4 Set the switch to the “ON” position. A green light indicates Continuity tester is operating. Place the Continuity tester where it can be seen and heard during the installation of the under oor heating.
-
Page 9: Standard Compliance
A 2-year product warranty is valid for: • Continuity tester Should you, against all expectations, experience a prob- lem with your Danfoss product, you will nd that Danfoss o ers Danfoss warranty valid from the date of purchase on the following conditions: During the warranty period... - Page 10 All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above.
- Page 11 Continuity tester User Guide...
- Page 12 Continuity tester Danfoss Electric Heating 11655 Crossroads Circle Baltimore, MD 21220 Tel: 1-888-Danfoss www.heating.danfoss.us 140R0002 & BC455336908062en-000101 Produced by Danfoss © 07/2023...
