- Page 1 Edelbrock Universal LS Supercharger Part #1540, 15400, 15410, 15420, 15430, 15440, 15470, 15480, 15490...
-
Page 3: Tools Required

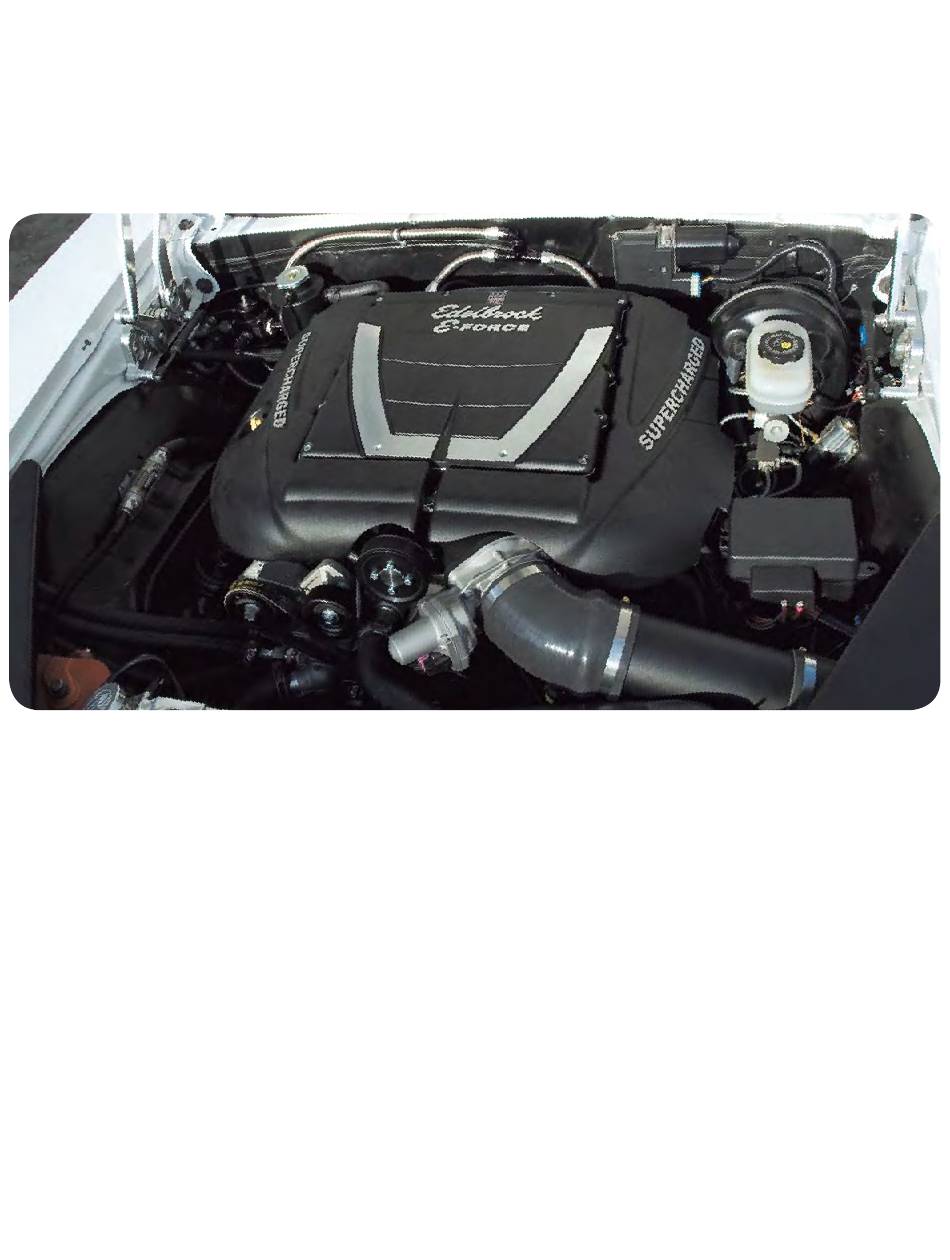

Supercharger System for LS Engines utilizes Eaton’s new Gen VI TVS Supercharger rotors, featuring a four lobe design with a full 160° of twist for: maximum flow, minimum temperature rise, quiet operation, and the reliability for which Eaton is known. The Edelbrock Supercharger is a complete system that maximizes efficiency and performance by minimizing air restriction into, and out of, the supercharger. -
Page 4: Important Warnings
Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions IMPORTANT WARNINGS Before beginning installation, use the enclosed checklist to verify that all components are present in the box then inspect each component for damage that may have occurred in transit. If any parts are missing or damaged, contact Edelbrock Technical Support (800-416-8628), not your parts distributor. - Page 5 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions INSTALLATION HARDWARE IDENTIFICATION GUIDE Bag #1 (3x) - M8 x 1.25 x 90mm (1x) - M10 x 1.5 x 75mm (2x) - M10 x 1.5 x 65mm Hex Flange Bolt Hex Flange Bolt Hex Flange Bolt (3x) - M8 x 1.25 x 100mm...
- Page 6 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions Bag #3 (8x) - M6 x 1 x 45mm (11x) - M8 x 1.25 x 25mm (4x) - M6 x 1 x 12mm (2x) - M6 x 1 x 16mm Hex Flange Bolt Countersunk Socket Head Bolt Socket Head Bolt...
- Page 7 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions Bag #5 - Not Included in 15430 and 15480 Kits (4x) - Coil Cover Bracket Grommet (1x) - Coil Cover Dipstick Grommet (4x) - Coil Cover Retainer Stud (4x) - Coil Cover Bracket (4x) - Coil Cover Standoff FEAD Hardware Bag #1- #15430 and 15480 Kits Only...
- Page 8 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions WIRE HARNESS IDENTIFICATION GUIDE +12v Battery (Orange) Key-on +12v source (Pink/Orange) Ground Strap (Black) Fuse Holder Relay Intercooler Water Pump MAF Sensor Engine Harness (Stock MAP TMAP Sensor Connector) LS3 TMAP Harness Shown LS2/7 will differ...
- Page 9 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions HOSE IDENTIFICATION GUIDE Intercooler Outlet Hose PCV Hoses Brake Booster to Manifold Hose Bulk 3/4” Intercooler Hose Intercooler Inlet Hose ©2015 Edelbrock LLC Brochure #63-1540 Universal LS E-Force Supercharger Page 7 Rev - 3/18/15 - QT...
- Page 10 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions INTERCOOLER PLUMBING DIAGRAM ©2015 Edelbrock LLC Brochure #63-1540 Universal LS E-Force Supercharger Page 8 Rev - 3/18/15 - QT...
- Page 11 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions Test Flash Procedure • Depending on your specific drivetrain configuration, several separate operations may take place during this (Applicable for P/N 1540 Only) step. Completion of each operation will cause the progress Use the supplied programmer to flash the ECU and verify its bar to reset to zero.
- Page 12 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions • Read parting message from programmer then press NOTE: The following steps, while not strictly related to Select to continue. installing the supercharger, detail the process required for installing a lock pin between the harmonic balancer and •...
- Page 13 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 9. Use a 13mm socket to remove the two starter bolts. 16. Install the drill guide and the M16 x 120mm guide bolt supplied in Bag #4 onto the end of the crankshaft. 10.
- Page 14 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 23. Install the crank bolt supplied in Bag #4 and torque it to 33. Use a small flathead screwdriver to remove the eight 37 ft-lbs then rotate it an additional 140°. O-rings from the stock valley plate and install them in the new valley plate.
- Page 15 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 40. Use a 10mm socket to install eight M6 x 45mm intake 49. Use a small flathead screwdriver to remove the wire manifold bolts from bag #3 following the torque sequence covers at the back of the coil brackets.
- Page 16 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 55. Use a 10mm socket to remove the three bolts on the 58. Apply blue loctite to the threads of one M8 X 20mm passenger side of the water pump. bolt supplied in Bag #1, then use a 12mm socket and the supplied washer to mount the pulley on the tensioner bracket and torque it to 18 ft-lbs.
- Page 17 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions NOTE: Steps 62-73 are for vehicles with Camaro Belt 66. Use a 15mm socket to remove the nut retaining the Offsets using P/Ns 15410, 15420, 15470. Disregard ground strap on the passenger side cylinder head then use a 15mm deep socket to remove the ground strap stud.
- Page 18 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 70. Apply blue Loctite to the threads of an M8 x 20mm bolt NOTE: Steps 74-77 are for vehicles with Truck Belt supplied in Bag #1 then use the supplied washer and a Offsets using P/Ns 1540, 15440, 15490.
- Page 19 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 77. Route the serpentine belt (not included) using the From the bottom fitting of the tank to the water pump diagram below. Use a 15mm socket to release tension from inlet;...
- Page 20 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions If you have yet to flash your ECU, then proceed with WARNING: The air intake system past the MAF sensor Steps 95-107, otherwise disregard them. MUST be air tight. This includes any PCV or crank case breathers.
- Page 21 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions 106. Read parting message from programmer then press 115. Use a 10mm deep socket to install the supplied ball Select to continue. studs into the new coil covers. 107.
- Page 22 Edelbrock E-Force Universal Supercharger System for the LS GM Engine Installation Instructions E-mail Edelbrock Your Stock PCM Calibration In the rare occurrence that you encounter an error message that reads “Calibration not supported” during the test flash procedure on page #9, you will need to e-mail your PCM calibration to Edelbrock at Calibration@edelbrock. com.
