Summary of Contents for Eaton xChargeIn Mobility

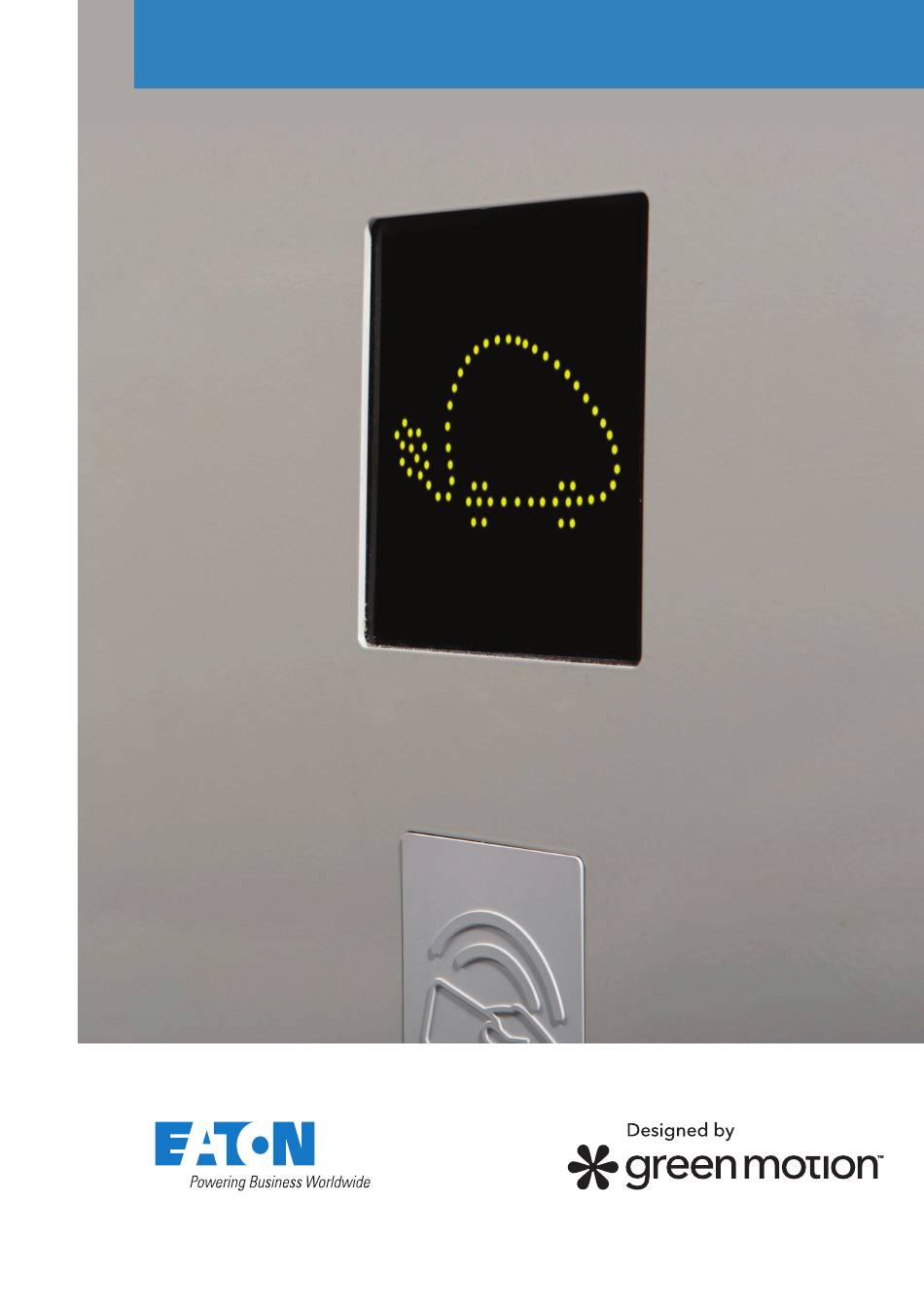

  • Page 1 Mobility xChargeIn Mobility User manual...
  • Page 2 Corporation’s (“Eaton”) experience and judgment and may not cover all contingencies. If further information is required, an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.
  • Page 3: Table Of Contents

    1.2 Symbols used in this manual ..........................5 CAUTIONS ..............................6 2.1 Operating environment and restrictions ......................6 DISCOVER YOUR XCHARGEIN MOBILITY AC EV CHARGER .............7 3.1 Checking the box contents ..........................7 3.2 Front and back views ............................7 3.3 Type of cables ..............................8 HOW TO START AND STOP CHARGING ....................9...
  • Page 4: Introduction

    Eaton Corporation. While every care has been taken to ensure the accuracy of the information contained in this manual, Eaton assumes no liability for any error or omission. Eaton reserves the right to modify the designs of its products.
  • Page 5: Scope Of The Document

    1.1 Scope of the document This manual is intended for users of the xChargeIn Mobility AC EV charger. It describes the operating environment, the EV charging station and its operating behavior. The document does not cover installation and uninstallation, commissioning guidance and troubleshooting.
  • Page 6: Cautions

    The installation, commissioning, maintenance or retrofitting must be carried out only by qualified and authorized personnel. It is strictly prohibited to open the xChargeIn Mobility AC EV charger. 2.1 Operating environment and restrictions Each system must be used exclusively for the operations it was designed for and within the operative ranges specified in the nameplate and/or in the relative technical datasheet, in accordance with the national and international safety standards.
  • Page 7: Discover Your Xchargein Mobility Ac Ev Charger

    • Safety guidelines • Floor mounting column (optional). • 3.2 Front and back views The xChargeIn Mobility AC EV charger has been designed for a seamless use. Figure 1. Front and back views of xChargeIn Mobility Number Description Housing Display...
  • Page 8: Type Of Cables

    The table below indicates the maximum power that the EV charger can deliver at each plug. The instantaneous charging power can vary upon other variables such as grid power available, installation and car model. For those reasons, Eaton declines any responsibility on the total power delivered.
  • Page 9: How To Start And Stop Charging

    Follow these steps to charge: 1. Check that the display indicator of the xChargeIn Mobility is a green car icon. This means that the charging station is ready for use. See section 5 on Display Indicators as references.
  • Page 10: Display Indicators

    Car fully charged 6. Software suite xChargeIn Mobility works in combination with an advanced software called Charging network manager. This is an all-in-one software management system designed to control the charging stations network. Please refer to the Eaton Charging network manager user manual, available on www.eaton.com for further details.
  • Page 11: Maintenance

    For units that are offline please contact your Eaton service representative. 7.2 Disposal When xChargeIn Mobility reaches the end of its service life, the end user should contact a professional installer for disposal instructions.Please refer to www.eaton.com/recycling for further details.
  • Page 12: Frequently Asked Questions

    When charging with the Type 2 connector, ensure that it is pushed in until an audible click is heard. If the problem persists, contact your local installer or your Eaton technical support representative. A red logo is displayed on the socket indication panel Unplug the connector from the vehicle and reinsert it.
  • Page 13: Technical Datasheet

    CE certification is also available on www.eaton.com/xchargeinmobility or contact your local Eaton service representative. 10. Contact support information Should any technical problems arise during the operation of the xChargeIn Mobility charging station, contact your local installer or your Eaton technical support representative for assistance. The following information should be provided...
  • Page 14 Eaton EMEA Headquarters Route de la Longeraie 7 1110 Morges, Switzerland Eaton.com/xchargeinmobility © 2021 Eaton Eaton is a registered trademark. All Rights Reserved Publication No. MN191006EN All trademarks are property March 2021 of their respective owners.
