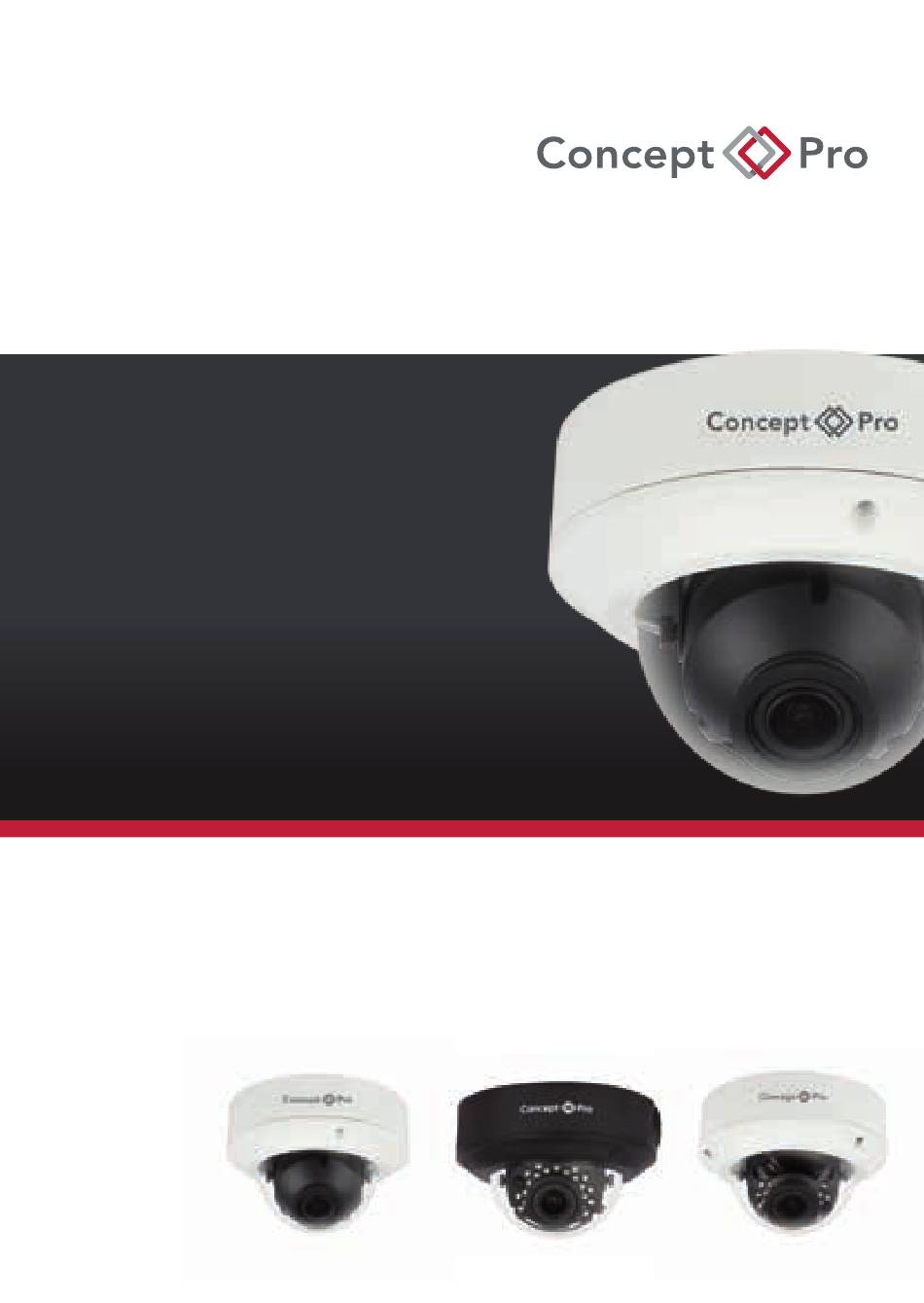

- Page 1 CVP9324-AHD CVP9324WDR-AHD CVP9324DN-AHD CVP9324DNIR-AHD CVP9324DNIR-AHD-Z CVP9324DNIR-AHD-Z-B External Dome Cameras USER MANUAL...
- Page 2 CAUTION Installation should be made by qualified service personnel and should adhere to all local codes. In order to prevent electric shock and avoid damage to waterproof seals, do not loosen any screws on the camera body. Avoid exposing the lens to direct sunlight. Do not touch the front glass.
-
Page 3: Installation
INSTALLATION FIXING TO A WALL Important: Ensure all precautionary procedures are observed during installation. It is recommended the camera is tested under the most demanding environmental conditions such as low light or bright sunlight to ensure continuity of effective CCTV monitoring. - Page 4 INSTALLATION CONNECTION Connect the video out port to your video cable To assist in installation when using an running to the monitor / recorder analogue test monitor, the camera can Check the power supply is of the correct level be switched to an analogue output by ...
-
Page 5: On-Screen Display (Osd)
ON SCREEN DISPLAY (OSD) OSD Controller RIGHT MENU / ENTER DOWN LEFT Press and hold UP for 5 seconds. This will switch to a 960H ready output. Press and hold LEFT for 5 seconds. This will switch to the 1080p AHD output. Remove the dome cover and locate the OSD control buttons on the camera mainboard. - Page 6 ON SCREEN DISPLAY (OSD) MAIN MENU ⏎ ⏎ DAY-NIGHT ⏎ VIDEO SETTING ⏎ LANGUAGE: ENGLISH, CHINESE, SPANISH, KOREAN, ITALIAN RESET ⏎ SAVE-EXIT ⏎ EXIT EXPOSURE BRIGHTNESS: 1-20 EXPOSURE MODE: GLOBE, CENTER, BLC, FLC LV (EXPOSURE MODE = BLC): GAIN: RETURN ⏎...
-
Page 7: Specification
SPECIFICATION MODEL CVP9324-AHD CVP9324WDR-AHD LENS Manual 2.8-12mm Varifocal SENSOR 1/3" CMOS SENSOR RESOLUTION EFFECTIVE RESOLUTION 1920(H)x1080(V) SIGNAL SYSTEM SCANNING SYSTEM Progressive SYNC. MODE Internal FRAME RATE 25fps (PAL) VIDEO FORMATS AHD/TVI/CVBS HORIZONTAL RESOLUTION 1080P/960H/720 VIDEO OUTPUT 1.0Vpp, 75Ω BNC TRANSMISSION RANGE >300m via 75-5 coaxial cable... - Page 8 SPECIFICATION CVP9324DN-AHD CVP9324DNIR-AHD CVP9324DNIR-AHD-Z CVP9324DNIR-AHD-Z-B Camera Image Sensor 1/2.9" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS 1/2.9" Progressive Scan CMOS Video Output AHD/TVI/CVI/CVBS AHD/TVI/CVI/CVBS AHD/TVI/CVI/CVBS Signal Type PAL/NTSC PAL/NTSC PAL/NTSC Max. Resolution 1920 x 1080 (2MP) 1920 x 1080 (2MP) 1920 x 1080 (2MP) Frame Rate 25/30FPS @ 1920 x 1080...
- Page 9 DIMENSIONS 46.00...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 OCTOBER 17 Design and specification are subject to change without notice.
