Summary of Contents for Concept Pro CP-HSD20-IP

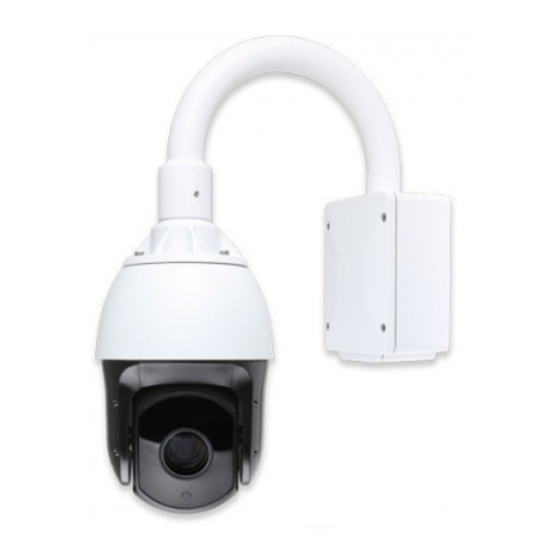

- Page 1 CP-HSD20/30-IP IP PTZ QUICK START GUIDE IP HIGH SPEED DOME SERIES QUICK START GUIDE...
- Page 2 WHAT’S IN THE BOX? Packaging Contents Speed Dome Camera x1 9-Pin Terminal Block x 1 Quick Start Guide x1 Bracket x1 Anchor Bolt x 4 Screwdriver x1 Hex Key x 1 Mounting Template x 1 User Manual USB x1 Gloves x1 INSTALLATION Install the Speed Dome Camera in 3 Steps Use the mounting template sheet to drill holes in the mounting surface, then affix...
- Page 3 CONFIGURING THE CAMERA Camera Connections Cabling BNC1 BNC2 Speaker In 1 DC 12V/ AC 24V Power Input In 8 Network Connection Address ID Set Switch Mic. Alarm Input Terminal Block Camera Setting Set Switch Alarm Output Terminal Block DC12V Output RS-485 Connector VIDEO OUTPUT BNC1: Analogue (CVBS) Output.
- Page 4 CONFIGURING THE CAMERA Camera Connections SET SWITCHES DIP No. 1 and 2 configures the baud rate as follows: N O . 1 N O . 2 R a t e 2400 4800 9600 Factory default switch positions Switch No. 5: ON: NTSC OFF: PAL Switch No.
- Page 5 HOW TO OPERATE ON IE WEB PAGE How to connect and operate the camera via IE • Using the cameras web browser it Camera Web Service View Setup Exit is possible to configure the IP PTZ Alarm Out PTZ >> Listen Talk Snapshot...
- Page 6 HOW TO OPERATE ON IE WEB PAGE How to connect and operate the camera via IE This product supports audio in/out, analogue CVBS output, and up to 64GB Micro SD card. Speaker Mic. Input/Output Audio in GND Audio out Only use recommended power supply adapters with this camera. Power Supply AC24V DC12V...
- Page 7 NOTES IP HIGH SPEED DOME SERIES QUICK START GUIDE...
- Page 8 IP HIGH SPEED DOME SERIES QUICK START GUIDE...
