PTN COMM-TEC UP-51TS User Manual

Compact scaler switcher (with poh)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

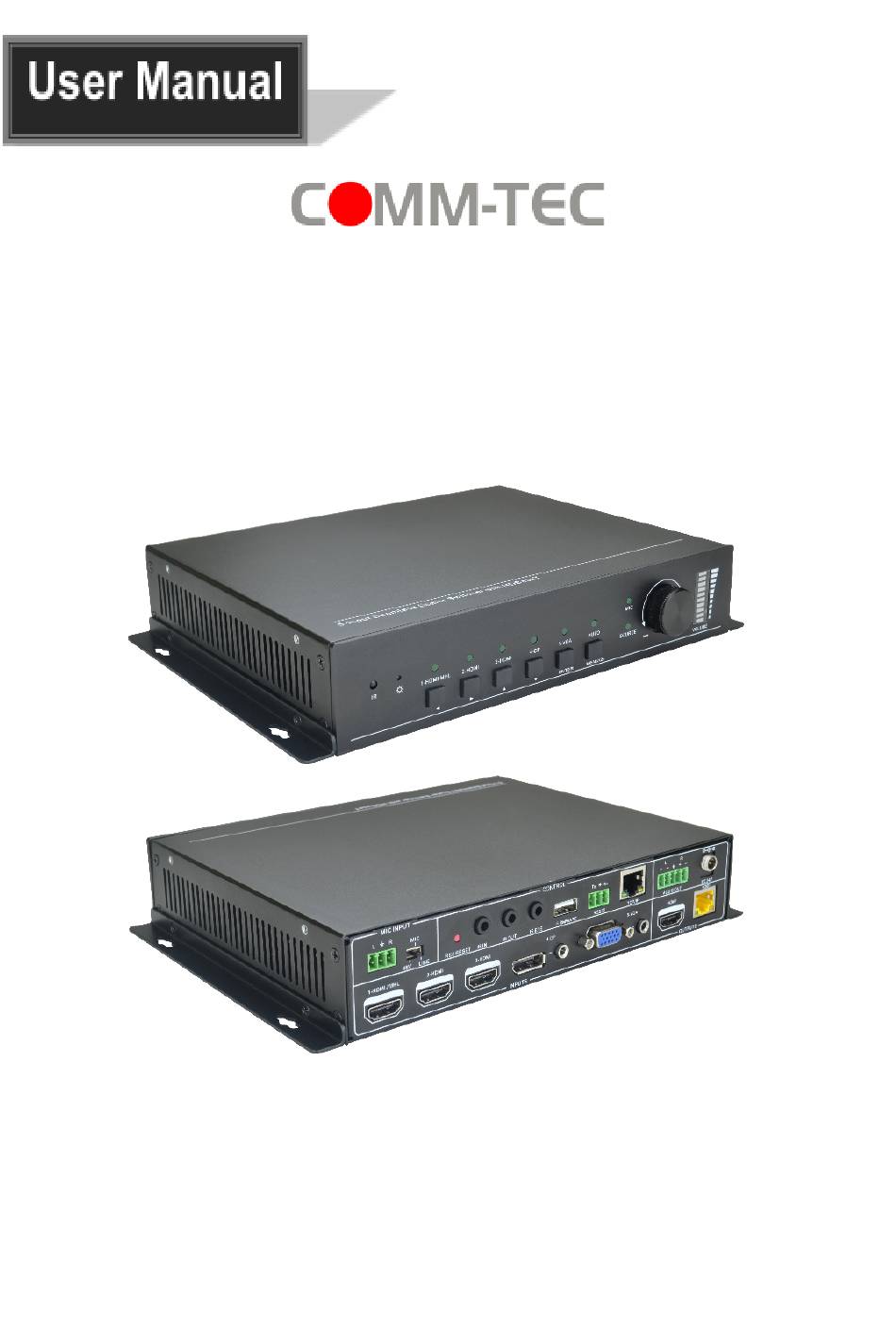

UP-51TS
Compact Scaler Switcher (with PoH)

All Rights Reserved
Version: 2020V1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMM-TEC UP-51TS and is the answer not in the manual?

Questions and answers

Related Manuals for PTN COMM-TEC UP-51TS

Summary of Contents for PTN COMM-TEC UP-51TS

  • Page 1 UP-51TS Compact Scaler Switcher (with PoH)    All Rights Reserved Version: 2020V1.4...
  • Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Manufacture This product is manufactured by: SHENZHEN PTN Electronics Limited Add: B6, JinXiongDa Technology Park, HuanGuan Road South 105th GuanLan Block, LongHua New District ShenZhen City, 518110, China ​...
  • Page 3 Compact Scaler Switcher SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. ● Unpack the equipment carefully and save the original box and packing material for possible future shipment ●...

  • Page 4: Table Of Contents

    Compact Scaler Switcher Contents Introduction Introduction to the Scaler Switcher Features Package List Panel Description Front Panel Rear Panel System Connection Usage Precautions System Diagram Connection Procedure Connection of Microphone Application System Operations Front Panel Buttons Manual-Switching Auto-Switching Volume Adjusting IR Control IR Remote Control far-end device from local...
  • Page 5 Compact Scaler Switcher Web-based GUI Control Control Menu Configuration Menu RS232 Control Menu Password Menu Web-based GUI Update Specification Panel Drawing Troubleshooting & Maintenance After-sales Service Comm-tec S.r.l. www.comm-tec.it...

  • Page 6: Introduction

    Compact Scaler Switcher Introduction 1.1. Introduction to the Scaler Switcher      The Scaler Switcher is a compact mini scaler switcher with 5 video inputs (1 HDMI/MHL, 2 HDMI, 1 DP, and 1 VGA) and 3 audio inputs (1 DP external audio, 1 VGA ​ a uxiliary​ audio, 1 MIC audio).
  • Page 7 Compact Scaler Switcher ▪ 1 x Power Adapter (24VDC,2.71A) ▪ 1 x IR Remote ▪ 1 x VGA Converting Cable (VGA to YPbPr) ▪ 2 x 3-Pin Phoenix Connectors ▪ 1 x 5-Pin Phoenix Connector ▪ 1 x IR Emitter ▪...

  • Page 8: Panel Description

    Compact Scaler Switcher Panel Description 2.1. Front Panel    1 Built-in IR Receiver 2 Power indicator ▪ Off when there is no power to the device. ▪ Red when the device is in standby mode. ▪ Green when the device is powered on. 3 1-HDMI/MHL input Selector &...

  • Page 9: Rear Panel

    Compact Scaler Switcher 2.2. Rear Panel INPUTS ▪ Video input ports: 1 HDMI/MHL input, 2 HDMI inputs, 1 DP and 1 VGA ▪ Audio input ports: 1 DP external audio input and 1 VGA auxiliary audio input. 2 OUTPUTS ▪ HDMI output: HDMI video output port ▪...
  • Page 10 Compact Scaler Switcher Receiver. ▪ TCP/IP: Ethernet port, connect with PC to control the Scaler Switcher via Web-based GUI. 5 AUDIO OUTPUT ▪ Audio output port, the audio comes from the input audio corresponding to the selected video source and is mixed with MIC audio. 6 DC 24V ▪...

  • Page 11: System Connection

    Compact Scaler Switcher 3. System Connection 3.1. Usage Precautions ▪ System should be installed in a clean environment and has a prop temperature and humidity. ▪ All of the power switches, plugs, sockets and power cords should be insulated and safe.

  • Page 12: Connection Of Microphone

    Compact Scaler Switcher Step5. Connect a HDMI display device to HDMI output port with HDMI cable. Step6. Connect HDBaseT Receiver to HDBT output port with twisted pair. Step7. Connect speaker, headphone or AV amplifier to AUDIO OUTPUT port. Step8. Connect control device (e.g. PC, control system) to the TCP/IP port, ​ t he Scaler Switcher​...
  • Page 13 Compact Scaler Switcher ➢ MIC Mode MIC input has a low frequency characteristics, and wide frequency response. When switch to “MIC”, the microphone input is used for connecting with d​ y namic microphone​ . There are two different connection methods: Unbalanced connection: “+”...

  • Page 14: Application

    Compact Scaler Switcher LINE input has a low frequency characteristics, and wide frequency response. When switch to “LINE”, the microphone input is used for connecting with line audio or wireless microphone output. There are two different connection methods: Unbalanced connection: “+”...

  • Page 15: System Operations

    Compact Scaler Switcher 4. System Operations 4.1. Front Panel Buttons Front panel buttons can be used for switching operations and volume adjusting. Manual-Switching 4.1.1.    Press ​ 1 -HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP, 5-VGA ​ o n front panel to select the corresponding input source.

  • Page 16: Volume Adjusting

    Compact Scaler Switcher Volume Adjusting 4.1.3. Press Volume Knob to choose MIC/Source audio needed to be adjusted, the corresponding LED will turn green and keep on. ▪ Adjusting the Volume Knob in clockwise direction to increase sound volume. ▪ Adjusting the Volume Knob in anti-clockwise direction to decrease sound volume. 4.2.

  • Page 17: Control Local Device From Remote

    Compact Scaler Switcher from local. 4.2.3 Control local device from remote Connect an IR emitter to IR OUT port on the Compact Scaler Switcher and connect IR receiver to the IR IN port on the HDBaseT Receiver, the source devices can be control by their IR remote from remote.

  • Page 18: Cec Function

    Compact Scaler Switcher CEC Function 4.2.3. The Scaler Switcher​ supports CEC, it can be turned on/ off by sending RS232 commands or OSD menu operations. The default setting is ON. Commands pertaining to CEC: “50686%” (enable CEC) and “50687%” (disable CEC) HDMI INPUT ports 1~3 support CEC, if the connected source devices also support CEC and their CEC are on, users can control the source device and display via the IR remote of the Scaler Switcher​...

  • Page 19: Rs232 Control

    Compact Scaler Switcher 4.3. RS232 Control As RS232 can be transmitted bi-directionally between ​ t he Scaler Switcher​ and the HDBaseT Receiver, so it is able to control a third party RS232 device from local or control the Scaler Switcher​ from remote. The baud rate support 2400, 4800, 9600(default), 19200, 38400, 57600 or 115200.
  • Page 20 Compact Scaler Switcher The interface of the control software is showed as below: Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area. Comm-tec S.r.l.

  • Page 21: Rs232 Communication Commands

    Compact Scaler Switcher RS232 Communication Commands 4.3.3. Communication protocol:​ RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none    Command Function Feedback Example Switch Commands 50701% Switch to 1-HDMI/MHL input Switch to HDMI 1 50702% Switch to 2-HDMI input Switch to HDMI 2...
  • Page 22 Compact Scaler Switcher Select embedded audio as audio 50706% DP Audio from Embedded input for DP video signal Select external audio as audio input 50707% DP Audio from External for DP video signal Resolution Commands    Set the output resolution to 50619% Resolution: 1360x768 1360X768 HD...
  • Page 23 Compact Scaler Switcher 50646% Enable MIC Volume Icon display Volume Icon: enable 50647% Disable MIC Volume Icon display Volume Icon: disable Disable the mute icon of Source 50761% Source Mute Icon: disable audio display Enable the mute icon of Source 50762% Source Mute Icon: enable audio display...
  • Page 24 Compact Scaler Switcher EDID: user EDID management, copy the best EDID manage 50782% resolution data of one output to HDMI Resolution:1920x1080 input Enable serial control mode 1: control RS232 Mode 1: RS232 Control 50787% Scaler & far-end from local RS232 Scaler &...
  • Page 25 Compact Scaler Switcher Manual Switch Mode: Set no Manual Switch Mode: Set the power 50744% input to power off time: 10 off time to 10 minute minutes 50697% Exit standby mode Wake up! 50797% Enter standby mode Go to standby! 50698% Software update Software update...
  • Page 26 Compact Scaler Switcher 50651% Check Volume Icon display status Volume Icon: xxxx 50712% Check the audio input sources for DP DP Audio from Embedded Check whether the Source audio is 50751% Source Mute/Unmute mute or not Check whether the MIC audio is 50752% MIC Mute/Unmute mute or not...
  • Page 27 Compact Scaler Switcher Stretch upwards from bottom side 50676% Output Height Adjust xx (decrease image height) Stretch downwards from bottom side 50677% Output Height Adjust xx (increase image height) 50730% Turn off HDMI output HDMI power off 50731% Turn on HDMI output HDMI power on 50732% Turn off HDBT output...

  • Page 28: Control Compact Scaler Switcher Or 3Rd Party Device From Local

    Compact Scaler Switcher Control Compact Scaler Switcher or 3rd Party Device from Local 4.3.4. Firstly, according the following connection diagram to connect all devices as needed. Secondly, send command ​ 5 0787% ​ ( serial control mode 1, factory default) via RS232 communication software.

  • Page 29: Osd Menu Control

    Compact Scaler Switcher    Control Compact Scaler Switcher or 3rd party device from Remote 4.4. OSD Menu Control The Scaler Switcher​ provides a powerful OSD operation menu, contains 3 parts: optional settings, image settings, and system setting etc.    There are three ways to enter OSD menu: ▪...

  • Page 30: Options

    Compact Scaler Switcher 4.4.1. OPTIONS Includes Output Adjust, Input 5 Select, Baud rate, User EDID Load (USB), Resolution, and Software Update (USB). ▪ Output Adjust​ : Adjust output image position (X: horizontal direction and Y: vertical direction), ratio aspect (width and height), polarity adjustment (H Polarity and V Polarity) and output setting (HDMI on/off and HDBT on/off).

  • Page 31: Picture

    Compact Scaler Switcher 4.4.2. PICTURE Including Picture Mode, Color Temperature, Aspect Ratio, Noise Reduction, Screen and Color Range. Please check the picture below: ▪ Picture mode​ : Include Dynamic, Standard, Mild, and User. Only in User mode, will it be able to set the image contrast, brightness, color and sharpness.   ...

  • Page 32: Setup

    Compact Scaler Switcher 4.4.3. SETUP    Including OSD Language, Restore Factory Default, Blending, HDMI CEC, OSD Duration and version inquiry ▪ OSD Language​ : Supports 7 languages, including English (default), Chinese etc. ▪ Restore Factory Default​ : Restores to original system state ▪...

  • Page 33: Web-Based Gui Control

    Compact Scaler Switcher 4.5. Web-based GUI Control In addition to control ​ t he Scaler Switcher​ via front panel button, IR remote and RS232 communication software. ​ T he Scaler Switcher​ can be controlled via web-based GUI. It allows users to interact with ​ t he Scaler Switcher​ through graphical icons and visual indicators.

  • Page 34: Control Menu

    Compact Scaler Switcher 4.5.1. Control Menu Type user name: user and password: user (default setting) on the log-in interface, and then     click ​ L ogin ​ t o enter Control menu shown as below:    ▪ Sources: ​ C lick the corresponding button (1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP, and 5-VGA) to select video input source.

  • Page 35: Configuration Menu

    Compact Scaler Switcher 4.5.2. Configuration Menu    Click on control menu to enter setting menu shown as below: ▪ Output Resolution: ​ S elect the output resolution that you need and then click ​ C onfirm​ . ▪ Update:​ Insert the USB flash disk with EDID file/software updating file to FIRMWARE port, and then click EDID/Firmware to start update procedure.

  • Page 36: Rs232 Control Menu

    Compact Scaler Switcher Click ​ N etwork​ to enter network setting menu shown as below: In this interface, dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are different to avoid IP conflict.
  • Page 37 Compact Scaler Switcher ▪ Port: ​ L ocal port refers to the RS232 port of ​ t he Scaler Switcher​ , and the HDBT port refers to the RS232 port of HDBaseT Receiver. ▪ Baud Rate:​ The baud rate of local port is 9600 which can’t be modified, but for HDBT   ...

  • Page 38: Password Menu

    Compact Scaler Switcher 4.5.4. Password Menu Click ​ P assword​ on the top of interface to enter password menu shown as below: In this interface, the user name and password can be modified as you need. 4.5.5. Web-based GUI Update Web-based GUI for ​...

  • Page 39: Specification

    Compact Scaler Switcher 5. Specification    Video 1 HDMI/MHL; 2 HDMI; Video input 1 DP; 1 VGA 3 female HDMI; Video Input Connector 1 DisplayPort; 1 female VGA (15-pin) Input Video Signal HDMI, DP, YPbPr, C-video, VGA 1 HDMI; Video Output 1 HDBaseT 1 female HDMI;...

  • Page 40: Panel Drawing

    Compact Scaler Switcher Humidity 10% ~ 90% Power Supply DC24V 2.71A Power Consumption Dimension (W*H*D) 220mm x 44mm x 172.5mm Weight 800g 6. Panel Drawing Comm-tec S.r.l. www.comm-tec.it...

  • Page 41: Troubleshooting & Maintenance

    Compact Scaler Switcher 7. Troubleshooting & Maintenance Problems Causes Solutions Bad quality of the Try another high quality connecting cable cable. Output image with snowflake Fail or loose Make sure the connection is connection good Check with oscilloscope or No signal at the input / multimeter if there is any output end signal at the input/ output...

  • Page 42: After-Sales Service

    Compact Scaler Switcher 8. After-sales Service If there appear some problems when running the Scaler Switcher, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1 Product Limited Warranty: ​ W e warrants that its products will be free from defects in materials and workmanship for ​...
  • Page 43 Compact Scaler Switcher Comm-tec S.r.l. www.comm-tec.it...
