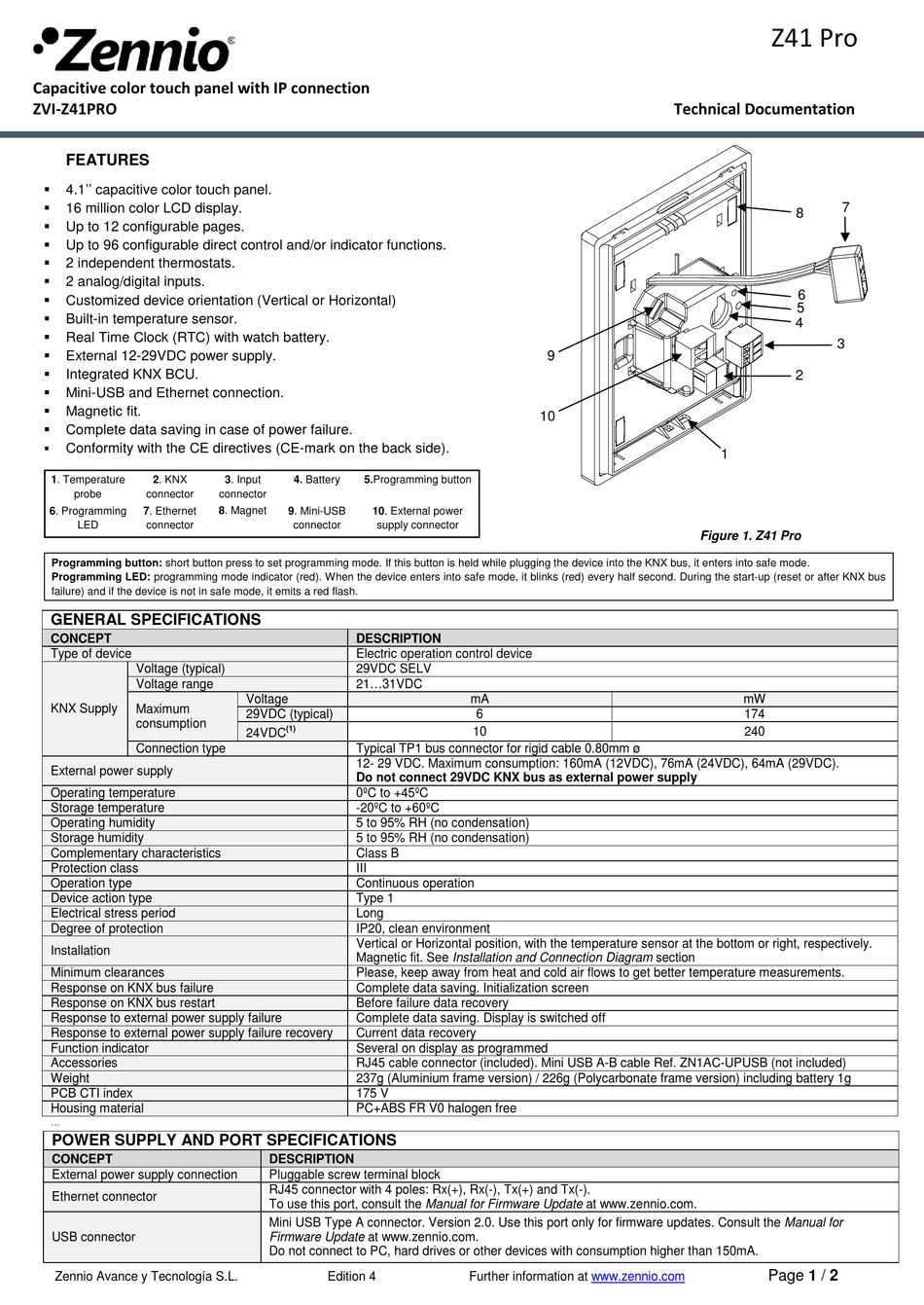

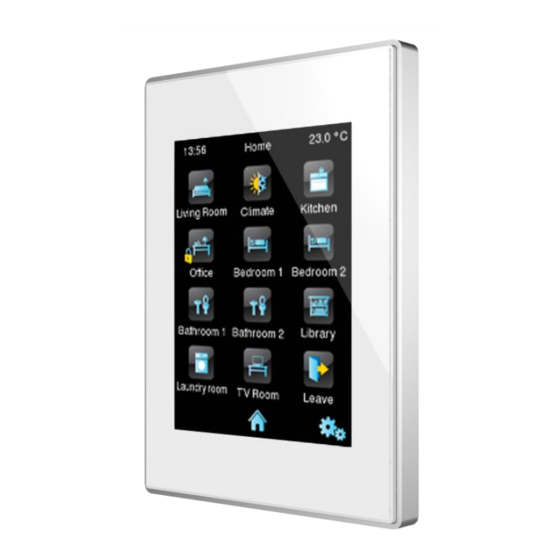

Zennio Z41 Pro Technical Documentation

Capacitive color touch panel with IP connection
ZVI-Z41PRO

FEATURES


4.1'' capacitive color touch panel.

16 million color LCD display.

Up to 12 configurable pages.

Up to 96 configurable direct control and/or indicator functions.

2 independent thermostats.

2 analog/digital inputs.

Customized device orientation (Vertical or Horizontal)

Built-in temperature sensor.

Real Time Clock (RTC) with watch battery.

External 12-29VDC power supply.

Integrated KNX BCU.

Mini-USB and Ethernet connection.

Magnetic fit.

Complete data saving in case of power failure.

Conformity with the CE directives (CE-mark on the back side).
1. Temperature 2. KNX
probe connector
6. Programming 7. Ethernet
LED connector
Programming button: short button press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters into safe mode.
Programming LED: programming mode indicator (red). When the device enters into safe mode, it blinks (red) every half second. During the start-up (reset or after KNX bus
failure) and if the device is not in safe mode, it emits a red flash.

GENERAL SPECIFICATIONS

CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX Supply
Maximum
consumption
Connection type
External power supply
Operating temperature
Storage temperature
Operating humidity
Storage humidity
Complementary characteristics
Protection class
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Response to external power supply failure
Response to external power supply failure recovery
Function indicator
Accessories
Weight
PCB CTI index
Housing material
(1)

POWER SUPPLY AND PORT SPECIFICATIONS

CONCEPT
External power supply connection
Ethernet connector
USB connector
Zennio Avance y Tecnología S.L.
3. Input 4. Battery 5.Programming button
connector
8. Magnet
9. Mini-USB 10. External power
connector supply connector
DESCRIPTION
Electric operation control device
29VDC SELV
21...31VDC
Voltage
29VDC (typical)
(1)
24VDC
Typical TP1 bus connector for rigid cable 0.80mm ø
12- 29 VDC. Maximum consumption: 160mA (12VDC), 76mA (24VDC), 64mA (29VDC).
Do not connect 29VDC KNX bus as external power supply
0ºC to +45ºC
-20ºC to +60ºC
5 to 95% RH (no condensation)
5 to 95% RH (no condensation)
Class B
III
Continuous operation
Type 1
Long
IP20, clean environment
Vertical or Horizontal position, with the temperature sensor at the bottom or right, respectively.
Magnetic fit. See Installation and Connection Diagram section
Please, keep away from heat and cold air flows to get better temperature measurements.
Complete data saving. Initialization screen
Before failure data recovery
Complete data saving. Display is switched off
Current data recovery
Several on display as programmed
RJ45 cable connector (included). Mini USB A-B cable Ref. ZN1AC-UPUSB (not included)
237g (Aluminium frame version) / 226g (Polycarbonate frame version) including battery 1g
175 V
PC+ABS FR V0 halogen free
DESCRIPTION
Pluggable screw terminal block
RJ45 connector with 4 poles: Rx(+), Rx(-), Tx(+) and Tx(-).
To use this port, consult the Manual for Firmware Update at www.zennio.com.
Mini USB Type A connector. Version 2.0. Use this port only for firmware updates. Consult the Manual for
Firmware Update at www.zennio.com.
Do not connect to PC, hard drives or other devices with consumption higher than 150mA.
Edition 4
9
10
mA
6
10
Further information at www.zennio.com
Z41 Pro
Technical Documentation
7
8
6
5
4
3
2
1
Figure 1. Z41 Pro
mW
174
240
Page 1 / 2
