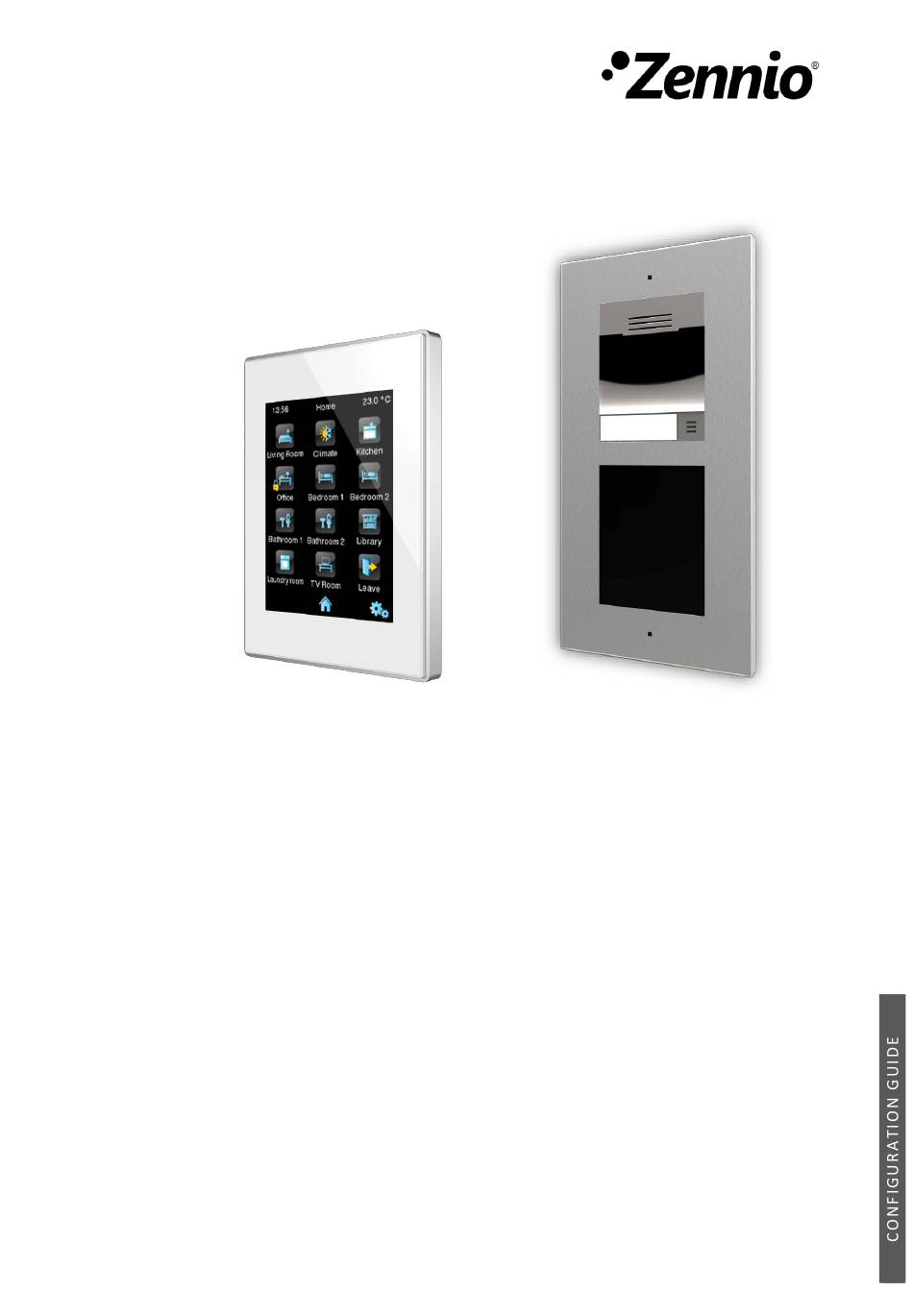

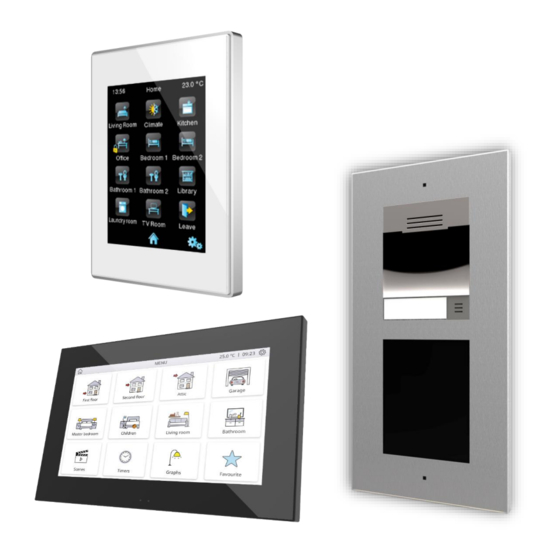

Z41 COM + GetFace IP
Configuration Guide
Application Program Version Z41 COM: [1.2]
GetFace IP Firmware Version: [2.26]
User manual version: c
www.zennio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z41 COM and is the answer not in the manual?

Questions and answers

Related Manuals for Zennio Z41 COM

Summary of Contents for Zennio Z41 COM

  • Page 1 Z41 COM + GetFace IP Configuration Guide Application Program Version Z41 COM: [1.2] GetFace IP Firmware Version: [2.26] User manual version: c www.zennio.com...

  • Page 2: Table Of Contents

    Z41 COM + Zennio GetFace IP Configuration Guide CONTENTS Contents ........................... 2 Document Update ........................3 Introduction ........................4 Basic Configuration ......................6 2.1 Z41 COM Configuration ....................6 2.2 GetFace IP Configuration ....................9 Advanced Configuration ....................13 3.1 System with multiple Z41 COM ................... 13 3.1.1...

  • Page 3: Document Update

    Z41 COM + Zennio GetFace IP Configuration Guide DOCUMENT UPDATE Version Modifications Page(s) Changes in Z41 COM: do not affect this document. Changes in GetFace IP: change in the indicated configuration of the system API. Changes in Z41 COM: tabs and parameters reorganization.

  • Page 4: Introduction

    This document presents an example of basic configuration of the GetFace IP video intercom together with the indoor unit Z41 COM in a simple installation of a private home when both devices are in the same network. A compiter conected to the same network is also required to access to the GetFace IP web interface configuration.
  • Page 5 Z41 COM + Zennio GetFace IP Configuration Guide Important: these IP addresses of Z41 COM are managed independently, so it is not required that both belong to the same IP network. It is recommended to configure both devices in parallel since it is important that certain parameters have the same values in both devices (this is indicated with warning notes throughout the document).

  • Page 6: Basic Configuration

    This section shows the basic configuration required in an installation with a single Z41 COM unit and a single GetFace IP unit. Note: For further information about the parameters please refer to the Z41 COM or GetFace IP user manuals available at the Zennio website (www.zennio.com).
  • Page 7 Z41 COM + Zennio GetFace IP Configuration Guide IMPORTANT: If the IP for the remote control of Z41 COM is set statically in “MAIN CONFIGURATION”, tab “Ethernet” make sure not to set the same IP for the VoIP Calls. 2. In “Video Intercom”: 2.1.
  • Page 8 4. In “MENU” enable a page and within it box whit Visualization “Other” and function “Video Intercom”. Figure 4 Z41 COM - Video Intercom box configuration. 4.1. Video Intercom: 1. IMPORTANT: the number of the video intercom must be the same as the one selected in 1.4.

  • Page 9: Getface Ip Configuration

    Z41 COM + Zennio GetFace IP Configuration Guide 2.2 GETFACE IP CONFIGURATION By default GetFace IP acquires its IP address by DHCP, but it can be set a static IP address as well. To change between one mode and another follow the steps below: 1.
  • Page 10 Z41 COM + Zennio GetFace IP Configuration Guide  Username: admin  Password: zennio Changing the password is recommended after the first access to the device. The main window will look similar to Figure 6. The default language of the interface is English. It can be changed in the upper right.
  • Page 11 Z41 COM + Zennio GetFace IP Configuration Guide Figure 7 GetFace IP - Configuration menu For a basic installation, only the following parameters must be configured: Directorio  Usuarios: add user. Figure 8 GetFace IP - Add user 2.1. Phone number: it will be used the Number 1 by default. The format should be sip:id@[IPaddress].
  • Page 12 Z41 COM + Zennio GetFace IP Configuration Guide Services  HTTP API  Services 1.1. System API: Secure (TLS) / Basic. 1.2. Switch API: Secure (TLS) / Digest. 1.3. Camera API: Unsecure (TCP) / None. Figure 9 GetFace IP - API HTTP Configuration http://www.zennio.com...

  • Page 13: Advanced Configuration

    In the next section, steps will be taken to configure these aspects. 3.1 SYSTEM WITH MULTIPLE Z41 COM It is usual to have in a installation multiple Z41 COM that require receive calls from the same GetFace IP outdoor unit. Next is described the configuration for this case.

  • Page 14: Getface Ip Configuration

    1.1. Phone number: the format should be sip:id@[IPaddress]. The “id” will only be used to identify calls in the event log in the state section. In IP address, the IP address of a Z41 COM must be indicated. Example: sip:1@192.168.1.101. IMPORTANT: The IP address must be the same configured by parameter in Z41 COM (item 1.1 in section 2.1).
  • Page 15 1.4. Parallel call to following number: check to add the IP address of the next Z41 COM to call in parallel. If more than three Z41 COM are required, they must be configured in another user, for example number 2. Moreover, in the user 1, in Number 3, the checkbox Parallel call to following number must be checked and in User Deputy enter the user configured, for example number 2.

  • Page 16: System With Multiple Getface Ip: Phone Number (Id)

    Z41 COM box and each one has its call log separately. If multiple GetFace IP are configured with the same ID, calls from all of them will be received in the Z41 COM box with a video intercom configured with that ID as shown in the figure below.

  • Page 17: Getface Ip Configuration

    The configuration of GetFace IP is the same as indicated in section 2.2, but also, it is necessary to configure: Services  Phone  SIP 1 1.1. Phone Number (ID): enter the same ID as in Z41 COM, for example ID_1. IMPORTANT: it must be the same as the ID entered in item 1.2 of section 3.2.1.

  • Page 18: Doors

    HTTP command or both of them. 3.3.1 Z41 COM CONFIGURATION The configuration of Z41 COM is the same as indicated in section 2.1, but also, it is necessary to configure: 1. In “Outdoor Unit 1”, in the tab “Configuration”: 1.1.

  • Page 19: Getface Ip Configuration

    1.1. Account Enabled: Enabled. 1.1.1. User Name: the same as the user name configured in Z41 COM. 1.1.2. Password: the same as the password configured in Z41 COM. IMPORTANT: it must be the same User Name and Password as the ones entered in 1.2.1 in the previous section 3.3.1.
  • Page 20 Z41 COM + Zennio GetFace IP Configuration Guide Figure 16 Zennio GetFace – Switches Configuration. http://www.zennio.com Tecnical Support:http://support.zennio.com...
  • Page 21 Join and send us your inquiries about Zennio devices: http://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain). Tel. +34 925 232 002. www.zennio.com info@zennio.com...
