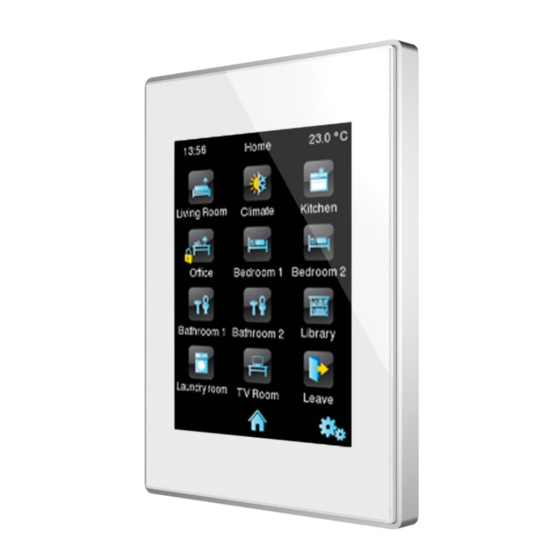

Zennio Z41 Pro Quick Start Manual

Capacitive color touch panel with IP connection
ZVI-Z41PRO

FEATURES

•
4.1'' capacitive color touch panel
•
16 million color LCD display
•
Up to 12 configurable pages
•
Up to 96 configurable direct control and/or indicator functions
•
2 independent thermostats
•
2 analog/digital inputs
•
Customized device orientation (Vertical or Horizontal)
•
Built-in temperature sensor
•
Real Time Clock (RTC) with watch battery and NTP support
•
External 12-29VDC power supply
•
Integrated KNX BCU
•
Mini-USB and Ethernet connection
•
Magnetic fit
•
Complete data saving in case of power failure
•
Conformity with the CE directives (CE-mark on the back side)
1. Temperature probe
6. Programming LED
Programming button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe mode.
Programming LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. During the start-up
(reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.

GENERAL SPECIFICATIONS

CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX supply Maximum
consumption
Connection type
External power supply
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Response on power supply failure
Response on power supply recovery
Operation indicator
Accessories
Weight
PCB CTI index
Housing material
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
© Zennio Avance y Tecnología S.L.
2. KNX connector 3. Input connector
7. Ethernet connector
Voltage
29VDC (typical)
24VDC¹
Edition 8
4. Battery
8. Magnet 9. Mini-USB connector
DESCRIPTION
Electric operation control device
29VDC SELV
21..31VDC
mA
6
10
Typical TP1 bus connector for 0.80mm Ø rigid cable
12- 29 VDC. Maximum consumption: 250mA (12VDC), 112mA (24VDC),
86mA (29VDC). Do not connect 29VDC KNX bus as external power supply
5°C .. +45°C
-20°C .. +55°C
5 .. 95%
5 .. 95%
Class B
III
Continuous operation
Type 1
Long
IP20, clean environment
Portrait or landscape position, with the temperature sensor at the bottom or
right, respectively. Magnetic fit. See Installation instructions section.
Please, keep away from heat and cold air flows to get better temperature
measurements.
Data saving according to parameterization. Initialization screen.
Data recovery according to parameterization
Complete data saving. Display is switched off
Current data recovery
Several on display as programmed
RJ45 cable connector (included). Mini USB A-B cable Ref. ZN1AC-UPUSB
(not included)
237g (Al) / 226g (PC)
175V
PC+ABS FR V0 halogen free
Futher information
TECHNICAL DOCUMENTATION
9
10
Figure 1: Z41 Pro
5.Programming button
10. External power supply connector
mW
174
240
www.zennio.com
Z41 Pro
7
8
6
5
4
3
2
1
Page 1/2
