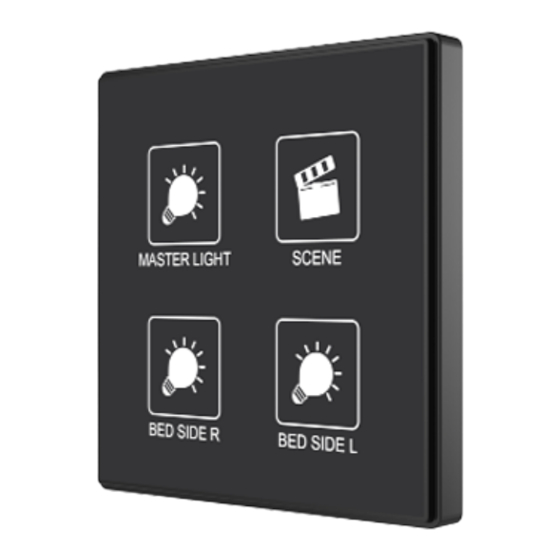

1/2/4/6-button capacitive touch panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

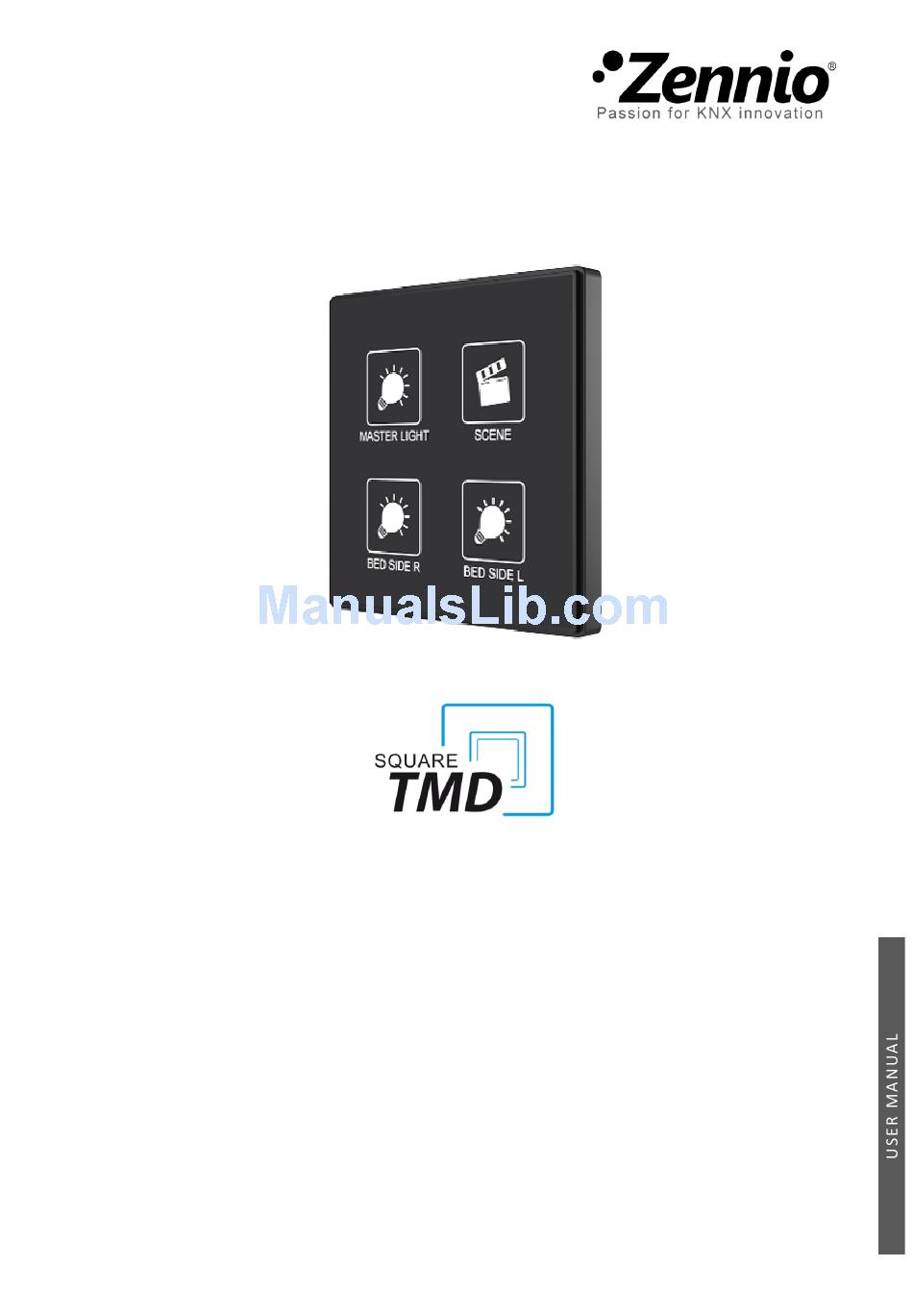

1/2/4/6-Button Capacitive Touch Panel
ZVI-SQTMD1
ZVI-SQTMD2
ZVI-SQTMD4
ZVI-SQTMD6
Application Program Version: [1.0]
User Manual Version: [1.0]_a
www.zennio.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZVI-SQTMD1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zennio ZVI-SQTMD1

Summary of Contents for Zennio ZVI-SQTMD1

  • Page 1 1/2/4/6-Button Capacitive Touch Panel ZVI-SQTMD1 ZVI-SQTMD2 ZVI-SQTMD4 ZVI-SQTMD6 Application Program Version: [1.0] User Manual Version: [1.0]_a www.zennio.com...

  • Page 2: Table Of Contents

    2.4 Inputs ..........................40 2.4.1 Binary Input ......................40 2.4.2 Temperature Probe ....................40 2.4.3 Motion Detector ..................... 40 2.5 Thermostat ........................42 ANNEX I: LED Illumination Modes ....................43 ANNEX II: Communication Objects ..................... 46 http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 3: Introduction

    1.1 SQUARE TMD Square TMD is an evolution of Touch-Mydesign Plus, the KNX multifunction capacitive touch switch from Zennio. While it aims at covering similar functional requirements, Square TMD is offered at a smaller size, with either one, two, four or six capacitive touch buttons (according to the user’s needs) together with LED indicators to...
  • Page 4 Welcome Back object (binary or scene) which is sent to the KNX bus when a pulsation is detected after a certain period (configurable) of intactivity. Two analogue/digital inputs (for motion detectors, temperature probes, additional switches, etc.). Thermostat function. Built-in temperature sensor. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 5: Installation

    8. Touch buttons. Figure 3 Element diagram. The programming button (4) can be pressed with the help of a thin screw to set the device into the Programming Mode. After a short press, the programming LED (5) will http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 6 For detailed information about the technical features of the device and for safety instructions and on the installation process, please refer to the Datasheet bundled with the original packaging of the device and also available at www.zennio.com. http://www.zennio.com Technical Support:...

  • Page 7: Configuration

    In the particular case of an external temperature probe (such as model ZN1AC- NTC68 from Zennio), it will be possible to use it with independence of the built-in temperature sensor of the device, which implements its own communication objects and can be enabled and disabled in parameters.

  • Page 8: General

    Vertical (normal): Horizontal (rotated): Temperature probe hole Temperature probe hole on the left of the bottom on the bottom of the right side. side. Note: this parameter is only available in some models (see section 2.3). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 9: Temperature Sensor

    2.3.4). 2.2.2 TEMPERATURE SENSOR Square TMD is equipped with one internal temperature probe which can monitor the ambient temperature of the room, thus making the device capable of reporting it to the http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 10: Led Lighting

    KNX bus and of triggering certain actions when the temperature reaches specific values. Please refer to the specific manual “Temperature Sensor in Square TMD” (available at the Zennio homepage, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters. 2.2.3 LED LIGHTING As anticipated in section 2.2, the integrator can configure the LEDs of the buttons to...
  • Page 11 (1 through 64) will trigger each mode. Brightness Mode after ETS download: sets which of the two modes (“Normal” or “Night”) will be active after an ETS Download. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 12: Sounds

    On the other hand, customising the button, doorbell and alarm sounds involves a set of parameters, as explained next. ETS PARAMETERISATION http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 13 The value that will trigger the sound (1 or 0) must be set in “Value”. Object for alarm bell: enables or disables the alarm function. If enabled, a specific object (“[General] Sounds: Alarm”) will be included into the project http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 14: Advanced

    These textboxes have no functionality – they are offered for the convenience of the integrator, as they allow assigning a description to each control, which may be useful in case of later re-parameterisation of the project. Figure 10 “Info” Textboxes. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 15: Touch Locking

    Upon the reception of a scene value (“Scene object”). When marked, two specific textboxes will show up to enter the scene numbers (1 - 64) that should trigger each action. These values are to be received through the general “[General] Scene: Receive” object. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 16: Welcome Back Object

    Timeout (since last touch): sets the minimum time (1 to 255 seconds, 1 to 255 minutes, or 1 to 255 hours) that should elapse after the last button touch before the next one triggers the execution of the welcome back function. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 17 Welcome Back Object (Scene): checkbox to enable the sending of a scene run request (through “[General] Scene: send”) when the welcome back function is triggered and the condition (if any) evaluates to true. The desired scene number (1 through 64) should to be entered in “Value”. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 18 Square TMD Figure 14 General - Welcome Back Object - Custom Configuration. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 19: Buttons

    Square TMD 4 up to four one-button controls can be configured, or up to two two-button controls (by combining any two buttons for each pair). The figure shows which number identifies each button during the configuration process. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 20: Configuration

     Two objects (short press / long press).  Light dimmer.  Shutter. Individual (one-button control):  LED indicator.  Switch (Binary).  Hold & release.  Two objects (short press / long press).  Scene.  Scaling constant.  Counter constant. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 21 One drop-down list with the following options is shown per button: Disabled. See section 2.3.2. Pair X. Sets that this touch button will belong to a two-button control (where X is A, B or C, depending on the model). Once one pair has been assigned to http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 22 (“Action of the pair buttons (all pairs)”) will be available to determine an operation criterion. The options are:  Left = Off/Down/Decrement; Right = On/Up Increment,  Right = Off/Down/Decrement; Left = On/Up Increment,  Every button pair is configured separately. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 23: Disabled

    “state-dependent (where available)” only the short press object will be considered Dimmer: short-pressing one of the two buttons will make Square TMD send a switch-on order to the bus, while doing so on the other button will make it http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 24 “dedicated object” LED illumination are available). See ANNEX I: LED Illumination Modes for details. ETS PARAMETERISATION Once two buttons have been assigned to a particular pair, a specific tab (“Pair X”) becomes available under “Buttons” in the tab tree. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 25 Action of the pair buttons (see section 2.3.1). LED illumination control: sets the behaviour of the LEDs on the buttons. The options are “Regular”, “State-dependent”, “State-dependent (both LEDs)” and “Dedicated Object”. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 26 Two switches - Short press” after the user short-presses one of the two buttons.  “Left=0; Right=1”.  “Left=1; Right=0”. Note: this parameter will remain hidden unless having selected “Every button pair is configured separately” in Action of the pair buttons (see section 2.3.1). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 27 On the other hand, the “[Btn] [PX] Light Dimming (Status)” one-byte object may be linked to the light level status object of the dimmer (in fact, this object is only intended to receive values from the bus, not to send them). As explained in 2.3.3, the state- http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 28 The move orders will be sent through “[Btn] [PX] Shutter - Move”, while the stop orders will be sent through “[Btn] [X] Shutter Stop/Step” (for Standard type) or “[Btn] [PX] Shutter - Stop” (for Hold & Release type). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 29: Individual

    The “state-dependent” LED mode is not available for this function. Two Objects (Short Press / Long Press): specific binary values will be sent both after a short or a long press (a different object will be used in each http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 30 Scaling Constant and Counter Constant functions. Dimmer: implements a one-button light control that sends orders to the KNX bus, which can then be executed by light dimmers. These orders consist in:  Switch-on / Switch-off orders (on short presses). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 31  Standard: the device will react to both long and short presses, being possible to send the bus the following commands: • Move (raise / lower) orders (on long presses). • Stop / Step orders (on short presses). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 32 If the position of the shutter is found to be 0%, the next order will lower the shutter. • If the position of the shutter is found to be 100%, the next order will raise the shutter. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 33 Depending on the function, some more parameters are involved (as described next). Please note that in the next pages “[In]” is used as a general notation for the communication objects, where “n” depends on the particular button pair. LED Indicator http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 34 Switch“) when the user touches the button. The options are “Send 0”, “Send 1” and “Toggle 0/1”. LED illumination control: analogous to the homonymous parameter for the “Disabled” function (see above). The options in this case are “Regular”, “State dependent” and “Dedicated object”. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 35 Action on Short press: sets the value to be sent to the bus (through “[Btn] [In] Two switches - Short press”) when the user short-presses the button. The options are “Send 0”, “Send 1”, “Toggle 0/1” and “Send 1-byte value”. In http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 36 LED illumination control: analogous to the homonymous parameter for all the above functions (see previous pages). The options in this case are “Regular”, and “Dedicated object”. Scaling Constant / Counter Constant / Float Constant http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 37 Figure 35 Individual Button - Dimmer. The (alternating) switch orders will be sent through the “[Btn] [In] Light - On/Off” one- bit object, while the (alternating) increase/decrease/stop orders will be through the “[Btn] [In] Light - Dimming” four-bit object. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 38 Additionally, a one-byte object (“[Btn] [In] Shutter Position”) is provided to link it to the position status object of the shutter actuator (in fact, this object is only intended to receive values from the bus, not to send them). As explained in 2.3.3, the alternation of http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 39 Type: sets the desired control type: “Standard” or “Hold & Release”, which have been described in section 2.3.3. LED illumination control: analogous to the homonymous parameter for all the previous functions (see previous pages). The options in this case are “Regular” and “Dedicated object”. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 40: Inputs

    It is possible to connect motion detectors (models ZN1IO-DETEC-P and ZN1IO- DETEC-X from Zennio) to the input ports of Square TMD. This brings the device with the possibility of monitoring motion and presence in the room, as well as the light level.
  • Page 41 Square TMD Notes: The ZN1IO-DETEC-P motion detector is compatible with a variety of Zennio devices. However, depending on the device it is actually being connected to, the functionality may differ slightly. Therefore, please refer specifically to the aforementioned user manual “Zennio Motion Detector in Square TMD”.

  • Page 42: Thermostat

    Square TMD implements one Zennio thermostat which can be enabled and fully customised. Please refer to the specific manual “Zennio Thermostat in Square TMD” (available at the Zennio homepage, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters.

  • Page 43: Annex I: Led Illumination Modes

    In the case of the pair controls, the value “0” will make one of the LEDs light (leaving the other one off), while the value “1” will make them switch their states. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 44 (see section 2.3.1) thus not being then necessary to configure the same option multiple times. In case of opting for a general configuration, the options are: http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 45 In case of desiring a similar behaviour for all of the LEDs, please find the parameter “LED Illumination Control (all buttons)” in the options of the General configuration screen. This parameter is explained in section 2.3.1. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...

  • Page 46: Annex Ii: Communication Objects

    [Btn] [Ix] Light - On/Off (Short press) Switch between On and Off 1 Bit C T - - - DPT_Step [Btn] [Ix] Shutter - Stop/Step (Short press) 0 = Stop shutter / Step up; 1 = http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 47 C T - W - DPT_Switch Left = 1; Right = 0 50, 56, 62 press [Btn] [PX] Two objects - Short 1 Bit C T - W - DPT_Switch Left = 0; Right = 1 press http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 48 0x1 (Dec. by 100%) … 4 Bit C T - W - DPT_Control_Dimming [Btn] [PX] Light - Dimming (Long press) Left = Brighter; Right = Darker 0x7 (Dec. by 1%) 0x8 (Stop) 0x9 (Inc. by 100%) http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 49 0 - 100 % (Status) C - - W - 1 Byte DPT_SceneControl 0-63; 128-191 [Thermostat] Scene Input Scene Value -273.00 - 2 Bytes C - - W - DPT_Value_Temp [T1] Temperature Source 1 External Sensor Temperature 670760.00 http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 50 [T1] Setpoint Reset Reset Setpoint to Default C - - W - 1 Bit DPT_Reset [T1] Offset Reset Reset offset C - - W - 1 Bit DPT_Heat_Cool [T1] Mode 0 = Cool; 1 = Heat http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 51 [Ix] Presence: Slave Input 0 = Nothing; 1 = Detection from slave device 120, 144 1 Bit C - - W - DPT_Trigger [Ix] External Motion Detection 0 = Nothing; 1 = Motion detected by an external http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 52 Switching of 0/1 (Stop/Step up/down) Shutter (switched) 0x0 (Stop) 0x1 (Dec. by 100%) … 4 Bit C T - - - DPT_Control_Dimming 0x7 (Dec. by 1%) [Ix] [Short Press] Brighter Increase Brightness 0x8 (Stop) 0x9 (Inc. by 100%) … http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 53 Sending of 1 163, 169 [Ix] [Long Press] 1 Bit C T - W - DPT_Switch Switching 0/1 Switching 1 Bit C T - - - DPT_UpDown [Ix] [Long Press] Move Up Sending of 0 (Up) http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 54 C T - - - DPT_SceneControl 0-63; 128-191 [Ix] [Long Press] Save Scene Sending of 128 - 191 1 Bit C T - - - DPT_Alarm [Ix] [Switch/Sensor] Alarm: 1 = Alarm; 0 = No Alarm http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 55 C - - W - DPT_Scaling 0% - 100% 0% - 100% Status (input) 165, 171 [Ix] [Long Press] Shutter 1 Byte C - - W - DPT_Scaling 0% - 100% 0% = Top; 100% = Bottom Position (Status input) http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
  • Page 56 Join and send us your inquiries about Zennio devices: http://zennioenglish.zendesk.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain). Tel. +34 925 232 002. Fax. +34 925 337 310. www.zennio.com info@zennio.com...
