Installing the FieldServer
Hardware Connections
3

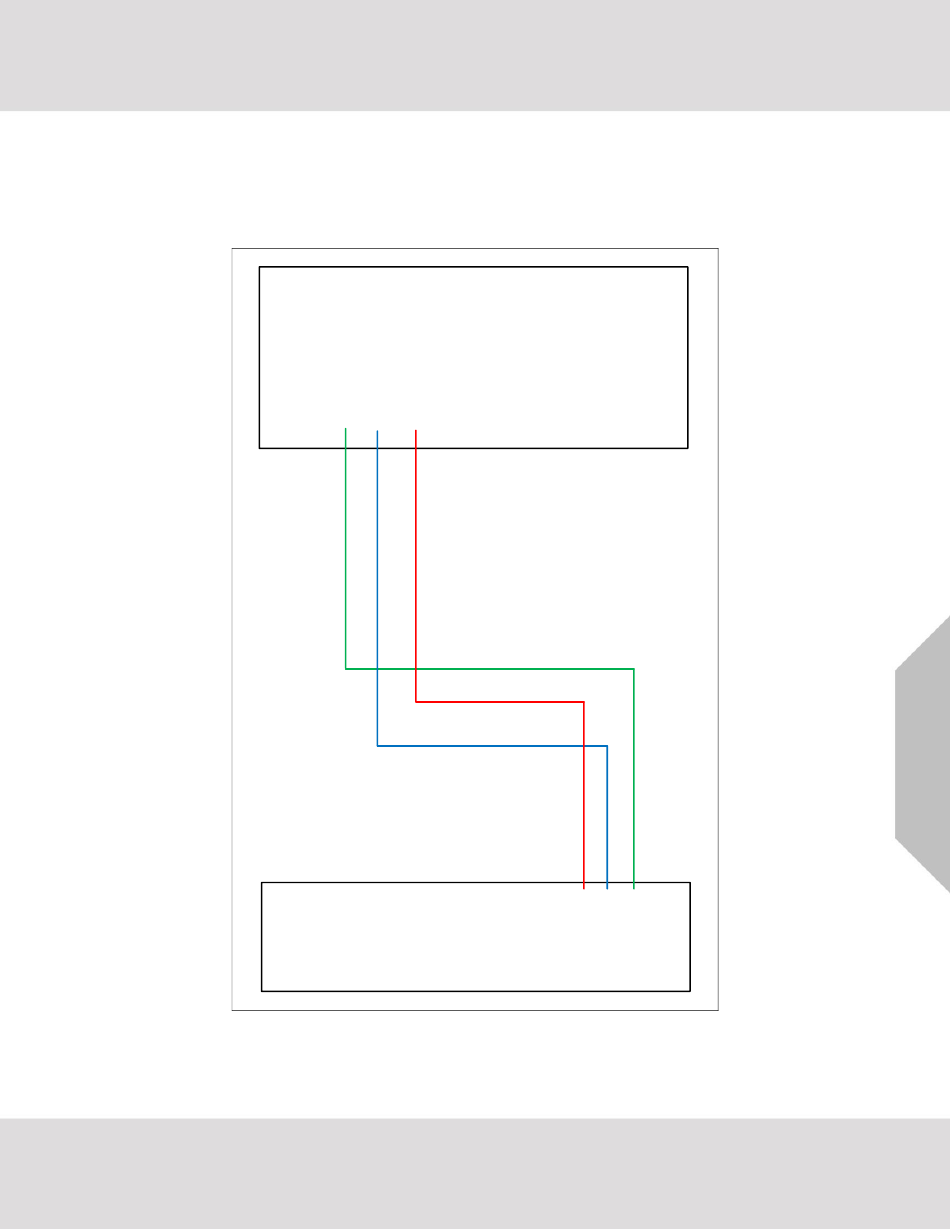

The FieldServer is connected to the ES/RS2000 Controller as shown in the connection drawing below:
Configure the ES/RS2000 Controller according to manufacturer's instructions.
RS-485 Connection:
Gardner Denver ES
G
-
+
Connect to the RS-485 port
on the FieldServer
+ - GND
FieldServer
Gardner Denver Driver Manual
5
