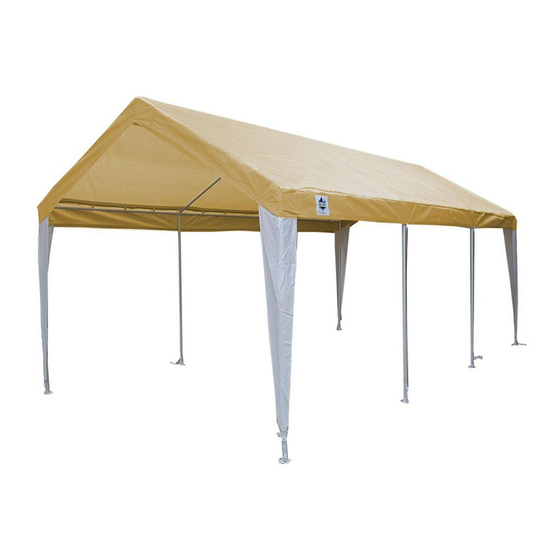

10'X20' HERCULES EXPRESS 8 LEG
ITEM #: C281020PTCLT
Dimensions:
10ft. 8in. Wide x 20ft. Deep x 6ft. 8in. Side Height / 9ft. 9in. Center Height
WARNING:
Keep all flame and heat sources
away from this tent fabric. Meets
the flammability requirements of
CPAI-84 Sec. 6 & NFPA 701 It is
Distributed by: PIC America, LTD.
not fire proof The fabric will burn
8009 Purfoy Road • Fuquay-Varina, NC 27526
if left in continuous contact with
1-800-800-6296 • www.kingcanopy.com
any flame source.
www.northlineexpress.com
1-877-734-2458
Advertisement
Table of Contents
Related Manuals for KING CANOPY HERCULES EXPRESS
Summary of Contents for KING CANOPY HERCULES EXPRESS
- Page 1 10’X20’ HERCULES EXPRESS 8 LEG ITEM #: C281020PTCLT Dimensions: 10ft. 8in. Wide x 20ft. Deep x 6ft. 8in. Side Height / 9ft. 9in. Center Height WARNING: Keep all flame and heat sources away from this tent fabric. Meets the flammability requirements of CPAI-84 Sec.
- Page 2 PARTS PTCL1020TW 4WPC PTCL1020VS BALLW 5X8PC Packed inside the 6X6-2PC Pipe 6X6PC PSLEEVE 6X6-2PC 3WPC PFOOT2 6X6PC 9 pc 78” Powder Coated Pipe 6X6-2PC 8 pc 78” - 2” Powder Coated Pipe 5X8PC 8 pc 68” Powder Coated Pipe Packed inside the 6X6-2PC Pipe 3WPC 6 pc...
-
Page 3: Frame Assembly
3WPC 3WPC 1) Start by laying out all of the parts and pieces to your King Canopy. Please refer to the parts list to ensure that your kit is complete. When all the parts have been accounted for, begin to layout the perimeter of your frame according to the photo above (6X6PC &... - Page 4 FRAME & ATTACHING COVER Width 5) Now that the roof frame work is 4) Once one side is complete, move to complete, you can begin to attach the the opposite side of the unassembled fitted cover. Start by laying out the cover frame lifting the frame and connecting to determine which way it is folded, the the remaining 5X8PC pipe.
-
Page 5: Attaching Cover
ATTACHING COVER 8) Wrap the cord around the pole and 9) Be sure all four corners are attached secure around the ball. before attaching the remaining ball straps. 11) Next continue attaching the straps 10) Continue attaching straps from left down each side and end. -
Page 6: Leg Assembly
LEG ASSEMBLY Insert First Insert Second Insert First 12) Now that all the ball straps are 13) Begin to attach the legs to the frame. attached. Insert the 6X6-2PC leg pipe Place each leg next to the three and four into each plastic foot pad and then insert way fittings. -
Page 7: Cover Adjustment
COVER ADJUSTMENT attach hook & loop at all 4 corners 16) Secure the hook and loop straps 17) Lastly, secure the hook and loop on the cover at all 4 corners around the straps on the corner leg skirts around the corner 3-way fittings. - Page 8 IMPORTANT NOTICE: PLEASE READ CAREFULLY We are confident that you will be completely satisfied with your King Canopy unit. Please take a moment to read the very important information below, and call us with any questions you may have. King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and we are in no way responsible for any damage caused by the canopy or to the canopy.
-
Page 9: Warranty Information
Improper Anchoring, Strong Winds, Rain Snow, or Ice King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These canopies are designed to protect against damages caused by sun, rain, tree sap, birds, etc. They are not designed to hold roof loads that accompany snow, ice or heavy rains.
