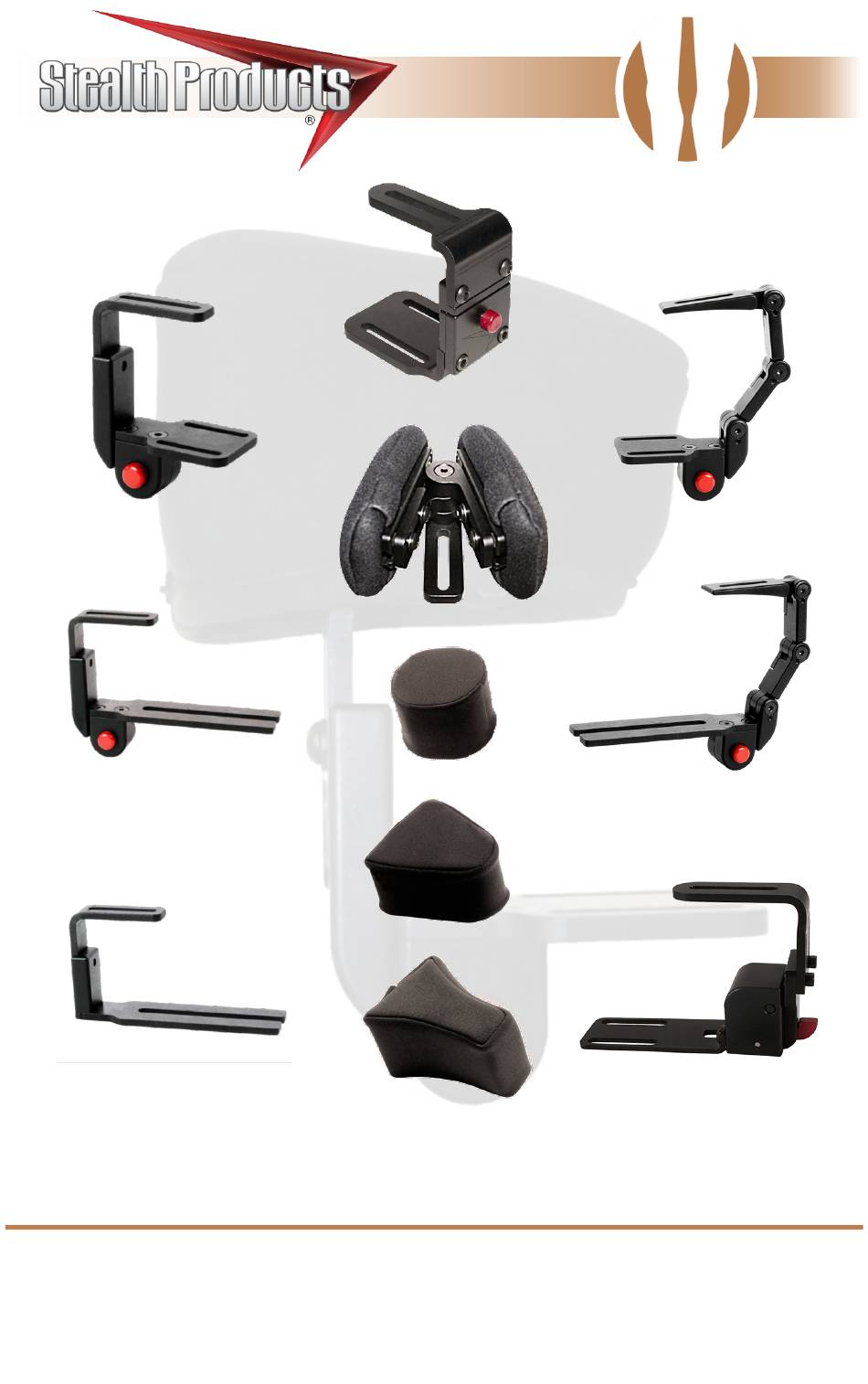

- Page 1 Medial Support Medial Thigh Support User Manual & Maintenance Guide...
-
Page 2: General Information
For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 3: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 4: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. -
Page 5: Table Of Contents
Table of Contents General Information ..............1-2 Customer Satisfaction ................1 Important ....................1 Warranty ...................... 2 Supplier Reference................... 2 Warning Labels................. 3 Warning Labels..................3 Limited Liability..................3 Table of Contents ................4 Installation ..................5-6 Abductor Pad (Pommel) Installation..........5 Fixed Mount Assembly................ -
Page 6: Installation
Installation Abductor Pad (Pommel) Installation Applies to the following abductors: MTMD-21 (XS) MTMD-32 (S) MTMD-12 (S) MTMD-22 (S) MTMD-33 (M) MTMD-13 (M) MTMD-42 MTMD-23 (M) MTMD-34 (L) MTMD-14 (L) MTMD-24 (L) MTMD-39 (CUSTOM) MTMD-19 (CUSTOM) MTMD-29 (CUSTOM) Your Medial Thigh Support may have been pre- assembled from the factory. -
Page 7: Removable Mount Installation
Installation Removable Mount Installation Applies to the following hardware: MTHW600 MTHW610 MTHW630 Mounting the removable hardware: 1. Locate the center row of t-nuts in the bottom of the seat. Insert the two 1/4-20 Socket Head Screws into the front and rear holes (Fig. A) and tighten with a 3/16 hex key (these screws are only to prevent Figure A: The two screws are guides for the support. -
Page 8: Adjustment
Installation Making Adjustments Height Adjustable Hardware To raise or lower the pommel using height-adjustable hardware, loosen the button head cap screw securing the bracket, adjust its height, and tighten the tooltip screw to secure the pommel in position. Link-type Hardware To raise or lower the pommel using link-type hardware, loosen the screw at the fulcrum of the angle you wish to change. -
Page 9: Swing-Away Hardware
Design & Function Operation Swing Away Hardware tooltip Press the red button (A) and push the pad away from you. It will swing forward and down out of tooltip the way for transfers or other needs. Lift it back into the upright position and it will lock in place. tooltip Modular Hardware Press the red button (A) and... -
Page 10: Mtmd-42 Adjustable Abductor Hardware
Design & Function Operation MTMD-42 Adjustable Abductor Stealth’s adjustable medial allows Compatible with MTHW-600, adjustment in multiple angles and planes. It MTHW-610, & MTHW-620 comes standard with dual 3x5” pads and slip This adjustment screw allows you cover. to change the angle of the pads. The MTMD-42 mounts onto a height adjustable mounting bracket. -
Page 11: First-Time Use
First Time Use Care & Cleaning Periodically check the hardware for loose screws or worn parts. Check the pommel pad for any foam breakdown and/or metal coming through the foam. This could be potentially dangerous for the client. To wash the cover, remove the foam from the medial hardware. - Page 12 © 2020, Stealth Products, LLC Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P91D639 Medial Thigh Hardware User Manual 7_13_20.pdf Jul 24, 2020...
