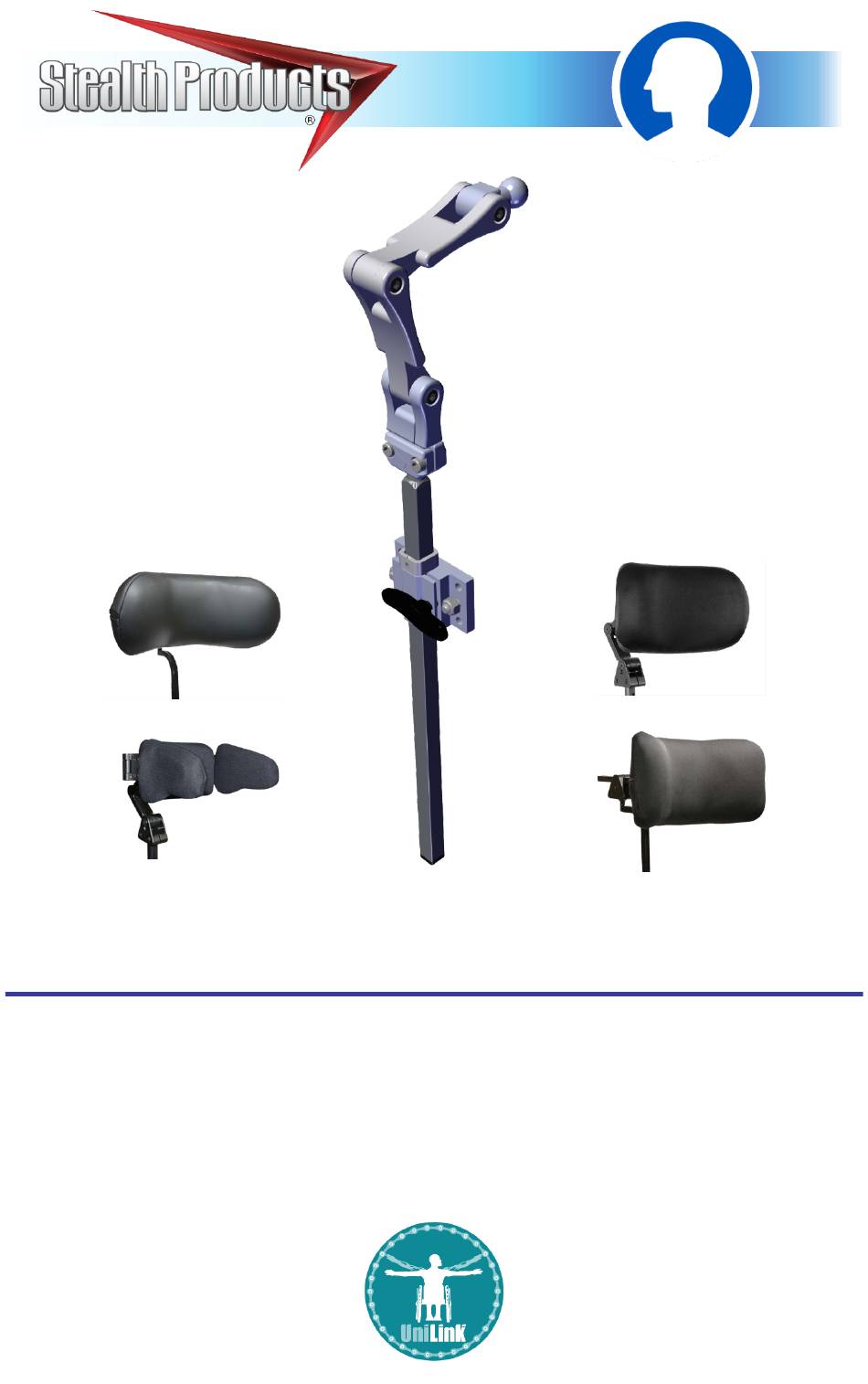

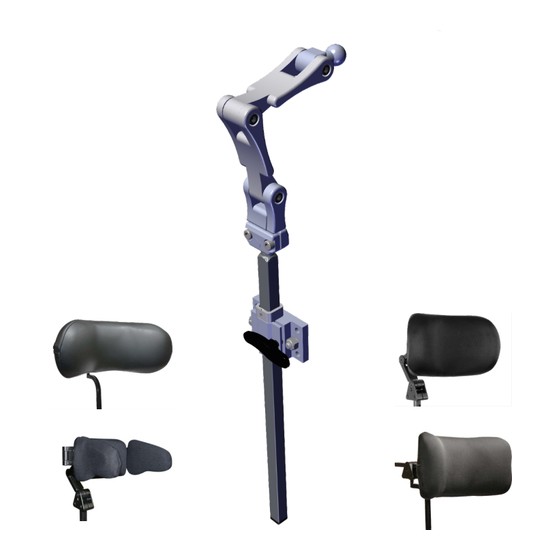

- Page 1 Head Support UniLink™ Headrest Hardware Owner’s Manual and Maintenance Guide...
-
Page 2: Customer Satisfaction
General Information Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important to us. Please contact us with feedback or suggestions to help us improve the quality and usability of our products. You may reach us at:... -
Page 3: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 4: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the... -
Page 5: Table Of Contents
Table of Contents TABLE OF CONTENTS Customer Satisfaction ..................1 General Information ..................1-3 Warranty ...................... 2 Supplier Reference Table............... 2 Warning Labels..................3 Limited Liability..................3 Testing ......................3 Table of Contents....................4 Design & Function ..................5-6 Intended Use....................5 Preparations .................... -
Page 6: Design & Function
Design & Function Intended Use UniLink A critical component of a properly fitted head support system, the UniLink Headrest Hardware is intended to connect to the wheelchair’s back, providing the user the necessary support and stability for their neck and head. Designed to be compatible with all Stealth Products’... -
Page 7: Installation Plan
Design & Function Set up a plan before beginning the installation. This plan should take into account: • Where the UniLink Headrest Hardware will be placed, as well as applicable attachments and accessories; and, • The amount of clearance necessary for other hardware and accessories. Required Tools Use the proper tools to install and adjust the UniLink Headrest Hardware to the desired position for the user. -
Page 8: Installation
Installation For seat backs with two holes: Place the seat back mount on the back of the seat and line up the center hole on either side of the seat back mount with the holes in the seat. From the front, insert the two M6 x 1 x 18 button head screws through the holes in the seat back and through the mount. -
Page 9: Installing Unilink Headrest Hardware
Installation Loosen the handle (A) of the seat back mount by turning it counterclockwise and insert the headrest hardware shaft into the square receptacle. If the shaft is too high or too low, the stop collar (B) requires re- positioning. Loosen it with the M2 Hex Key and adjust the stop collar to the desired position. -
Page 10: Headrest Installation
Installation Headrest Installation This section covers installation of the following headrests on UniLink headrest hardware: Adjustable Tri-Comfort Plus Comfort Plus Series Combo Series Comfort Plus Series Series To install a headrest to the Place the 1” ball into the UniLink Headrest Hardware: designated socket in the rear of the headrest. -
Page 11: Headrests
Headrests Comfort Plus Series The Comfort Plus Series is a series of single pad headrests made for comfort and ease of use. This series is designed to: • Supply a resting position or support against gravity in tilt or recline. •... -
Page 12: Adjustable Comfort Plus Series
Headrests Adjustable Comfort Plus Series The Adjustable Comfort Plus Series combines all the features of the Comfort Plus Series with an adjustable triple pad head support. This series is designed to: • Supply a resting position, or support against gravity in tilt and recline. -
Page 13: Combo Series
Headrests Combo Series The Combo Series merges many features of the Adjustable Comfort Plus Series in a lower profile system with individually adjustable bilateral wings. Its intuitive function allows you to set the angle of the wings and reliably holds them in place. This series is designed to: •... -
Page 14: First Time Use
First Time Use Dealer Assistance During first-time use by the user, it is advised that the dealer or service technician not only assembles the product, but also explains the configuration of user positioning to the user (i.e., the user and or the attendant). -
Page 15: Cleaning & Maintenance
Cleaning Cleaning To wash the covers of the headrests: • Remove the pad/cover from the headrest; • Machine wash in cold water on delicate cycle and drip dry. Maintenance Periodically check the hardware for loose screws or worn areas. Check the pad/cover for any breakdown. If metal is protruding through the cover or foam, discontinue use immediately and replace the headrest. - Page 16 Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P143D636 Unilink Headrest Manual.pdf Revision Date - Jun 4, 2020...
