- Page 1 Wheelchair Accessories Owner’s MANUAL Handrim, Wheel, and Tire Owner’s Manual for Handrim, Wheel, and Tire...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC... - Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...
-
Page 4: Introduction
For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at 1-800-965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
Table of Contents 1.0 Customer Satisfaction...…………………………………………………………….. i 2.0 Important Information……..………………………………………………………. ii 3.0 Introduction……………………………..……………………………………………. iii 4.0 Warranty…..……………………………..……………………………………………. iv 5.0 Table of Contents….…..…………………………………………………………….. v 6.0 Warning Labels….…..……………………………………………...……………….. vi 6.1 Warning Labels….…..…………………………………………………...……………...……….. vi 6.2 Limited Liability….…..…………………………………………………...……………...…...….. vi 6.3 Testing…………..….…..…………………………………………………...……………...……….. vi 7.0 Design and Function..……………………………………………….….…………... 1 7.1 Intended Use..….…..…………………………………………………...…….………...…….….. -
Page 7: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Stealth Products does not hold responsibility for the final product assembly to end user. - Page 8 Design and Function Intended Use Stealth Products wheelchair accessories include handrims, wheels and tires. These provide the user with the ability to maneuver the wheelchair. Wheel Wheelchair rear wheels are made up of the tire, rim (and handrim on manual chairs) spokes (or mags), and a hub.
-
Page 9: Design And Function

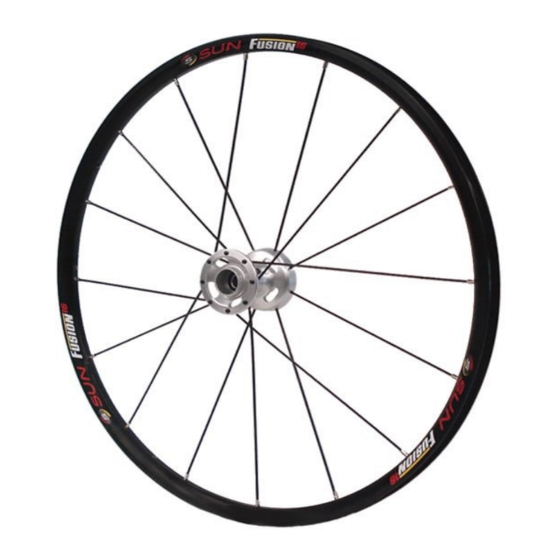

Design and Function Product Feature Overview Wheels We offer Fusion 16 wheels that are a perfect combination of performance, durability and style for everyday chairs. NOTICE All Fusion16 wheels are sold without tires and handrims. Available in (black or silver hub): Size: 24"... - Page 10 Design and Function Product Feature Overview Handrims NOTICE Before use, it is important that you check the Handrims for any damages. Always keep both hands on the handrim as you go over an obstacle. Standard six tab anodized aluminum Handrims are used for propelling the manual wheelchair using an the hand.
-
Page 11: Installation Instructions
Installation Instructions Wheels Direct Mount Wheels 1. To remove the direct mount wheel(s) unscrew the locknut (3/4-16 LLN or 1/2” LN) with an adjustable wrench. 2. To install a new wheel, screw on the locknut (3/4-16 LLN or 1/2” LN) Quick Release Axle Pin for Wheels (A quick release wheelchair wheel axle allows for fast and easy removal of 1/2"... - Page 12 Installation Instructions Handrim 1. Tools and Hardware Needed: Phillips #2 screwdriver 3/8 Combination wrench (6) - 10-32 thread, 7/16" long (6) - 10-32 thin nylon-insert locknut 2. Remove the Old Handrim Remove the screws that mount the handrim to the wheel using the Phillips screwdriver.
-
Page 13: Maintenance
Maintenance WARNING After making ANY adjustments or repairs to your wheelchair and after any servicing of your wheelchair, ALWAYS make sure all attachment hardware is tightened securely BEFORE using the chair. If you ignore this Warning, you may fall, tip over or lose control of your wheelchair and seriously injure yourself or others or damage the wheelchair. - Page 14 NOTES 10.0...
- Page 15 NOTES 10.0...
- Page 16 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P116D629 Revision Date 2020-02-28...
