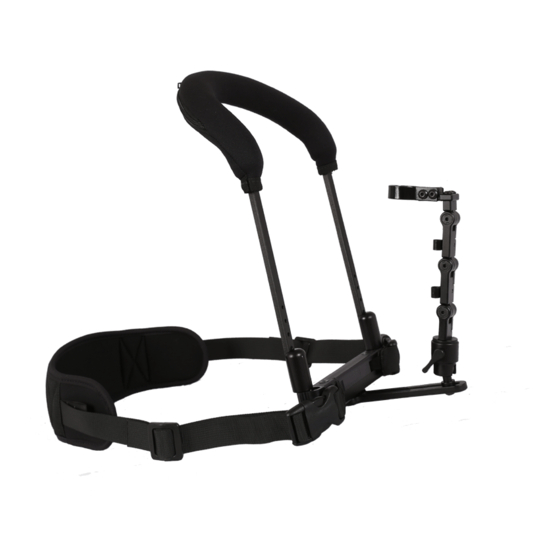

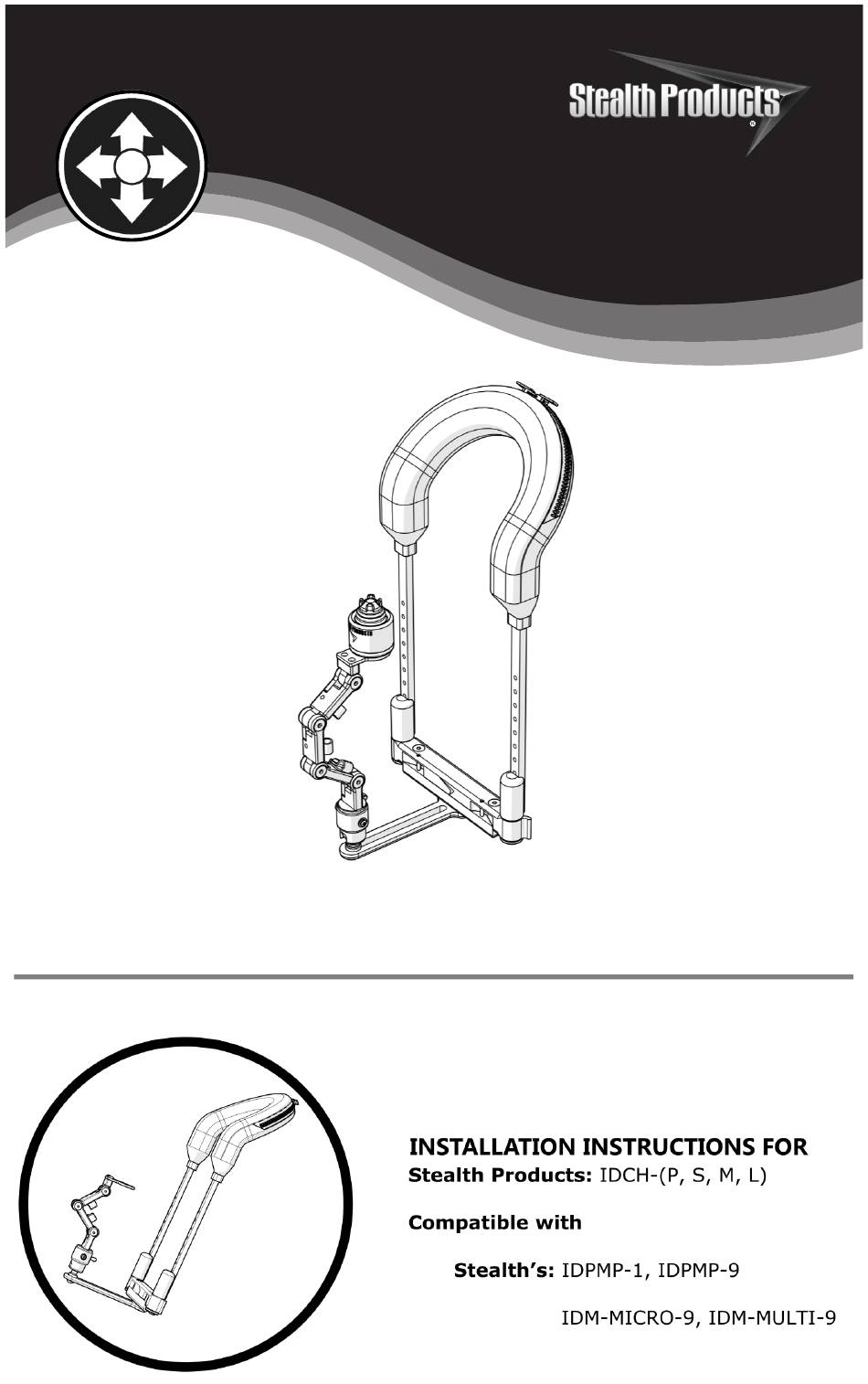

- Page 1 Alternative Drive Mounting Hardware Quick Install IDCH I-Drive Control Harness mo-Vis’:...
-
Page 2: Customer Satisfaction
Customer Satisfaction Stealth Commitment Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our hardware. You may reach us at:... -
Page 3: Warning Labels
SAFETY be necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. -
Page 4: Table Of Contents
Table Of Contents 1.0 Customer Satisfaction ................i 1.1 Stealth Commitment .................... i 2.0 Warnings ....................ii 2.1 Warning Labels ..................... ii 2.2 Limited Liability ..................... ii 2.3 Testing ........................ii 3.0 Table of Contents……………………………………………………………………………….iii 4.0 Parts and Accessories ................1 4.1 Mounting Hardware Parts ................ -
Page 5: Parts And Accessories
Parts And Accessories Mounting Hardware Parts Description Collar IDCH ARM Latch for the IDCH Height Adjustment Latch Depth Adjustable Track Lateral Adjustment Track Swivel Link for IDCH Swivel Adjustment Handle D2 M6 Screw Niño Link for IDCH M5X.8X20 MM FHS (3) Joystick Mount M5X.8X6 MM BHS (2) Niño Link For Mount... -
Page 6: Mounting Hardware Tools
Parts And Accessories Mounting Hardware Tools Tools Description T-Handle 2mm T-Handle 3mm T-Handle 4mm T-Handle Phillips Screwdriver Small 1. T-Handles not included... -
Page 7: Installation Instructions
Installation Instructions Installing The Multi/IDPMP Joystick IDPMP-1 / IDPMP-9 IDM-MULTI-9 * USB ports to client’s right side for forward direction. Orient dimple on top of housing, furthest from client for Standard Configuration. forward direction Multi– Mounting 2A IDPMP–1 / IDPMP–9 10-32 x 1/4 BHS M4 x .7x10mm PHS Mounting... -
Page 8: Installing The Micro Joystick
Installation Instructions Installing The Micro Joystick Step 1: Loosen and remove screws (F1) from joystick mount. Step 2: Remove joystick mount from niño link. Step 3: Slightly loosen M5 x .8 x 6mm BHS and slide Micro joystick through the strap. Tighten screws with 3mm T-Handle. - Page 9 Installation Instructions Step 4: Attach joystick strap mount to niño link with screws (F1) and tighten with 3mm T-Handle.
-
Page 10: Functioning
Functioning Addition/Removal Of Link If additional height is required: Step 1: Locate the link screw (E1) on the top link. Remove the M5x.8x20mm FHS from the link, detaching the joystick mount and link nut. Step 2: Line up holes on link and add the IDCH-Link (E) to open end. Step 3: Insert link screw (E1) and tighten with a 3mm T-Handle. -
Page 11: Height Adjustment
Functioning Height Adjustment Add links to adjust height before determining if the arms should be cut. If there are no other options follow the steps below. Step 1: Loosen and remove the M3 x .5 x 12mm FHS with the 2mm T-Handle to remove the collar. Determine the correct height of the mount that is needed for the user. -
Page 12: Swivel Link Adjustment
Functioning Swivel Link Adjustment 30° + OF ADJUSTMENT Lock Step 1: Turn the handle (D1) in a downward direction to unlock and adjust. Step 2: Orient to desired angle of client’s needs. Step 3: Turn handle (D1) in an upward direction to lock into place. -
Page 13: Joystick Mount Adjustment
Functioning Joystick Mount Adjustment To adjust the angle of the Multi or IDPMP joystick mount: + OF ADJUSTMENT Step 1: Loosen screw (E1) on niño link nut (E). Step 2: Adjust Joystick mount (F) to desired angle and tighten screw (E1) with 3mm T-Handle. Do not over tighten. -
Page 14: Lateral Adjustment
Functioning Lateral Adjustment Step 1: Loosen M5x.8x12mm FHS on track and position lateral track to desired location on horizontal track (C3). Range of adjustment depends on size of control harness. Step 2: Tighten screws when track is in the correct location using the 3mm T-Handle. -
Page 15: Replacing The Idch Belt
Functioning Replacing The IDCH Belt Step Unscrew and remove M3 x .5 x 12mm FHS with the 2mm T-Handle. Separate arms (B) from latch (C1). Step 2: Loosen and remove the M5 x .8 x 20mm FHS (2) from the i-Drive latch (top). - Page 16 Functioning Step 4: Remove buckles off of pins. Replace new buckles by sliding 3/8” webbing onto pins. Match holes of the track to the holes of the latch, and snap back together. Step 5: Give a slight tug to female buckle to ensure webbing is hooked onto slotted spring pin.
-
Page 17: Removing The Collar
Functioning Removing The Collar The track can be released from the collar (Client’s perspective). Three (3) different options are available to remove the arms from the latch; left, right, or a full release. (Swing to client’s right side) (Swing to client’s left side) Step 1: For your safety, unbuckle the belt from collar. -
Page 18: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 19: Notes
Notes... - Page 20 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P132D400 Revision Date 2019-12-17...
