Summary of Contents for Stealth Products Tri Comfort TCP505

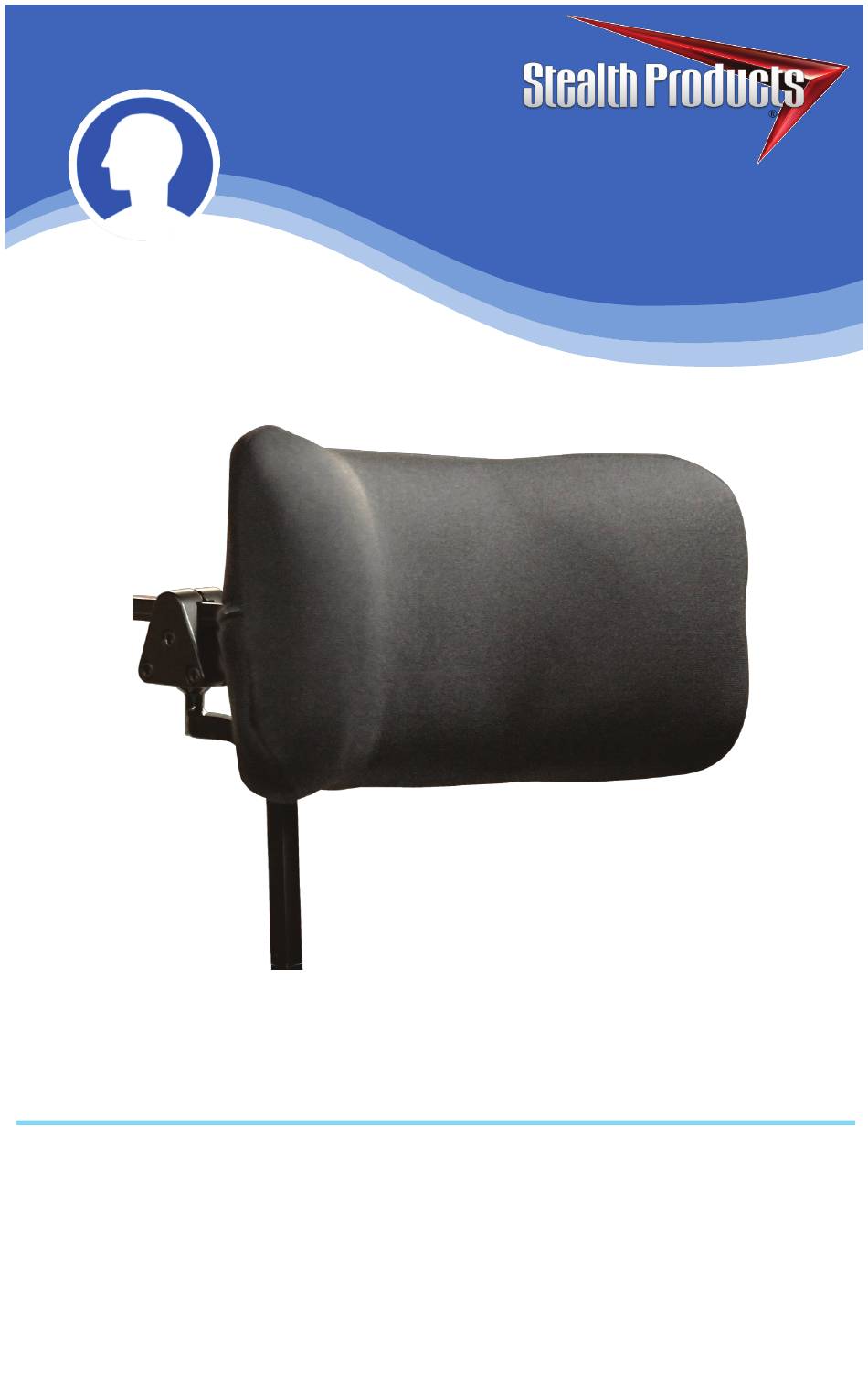

- Page 1 Positioning & Support USER MANUAL Tri Comfort Headrest Stealth’s User Manual and Maintenance Guide for the Tri Comfort Headrest...
- Page 2 Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC...
- Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: �...
-
Page 4: Introduction
They also contain important safety and maintenance information. For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at 1-800-965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
Table of Content 1.0 Customer Satisfaction .................. i 2.0 Important Information ................ii 3.0 Introduction ....................iii 4.0 Warranty ...................... iv 5.0 Table of Contents ..................v 6.0 Warning Labels ................... vi 6.1 Warning Labels ......................vi 6.2 Limited Liability ......................vi 6.3 Testing .......................... -
Page 7: Warning Labels
SAFETY necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and instructions in this manual. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 8: Parts And Accessories
Parts and Accessories Parts Included Each seat back mount will come with the following: � Two m6x1x18mm Bu�on Head Screws � Four m5x0.8x12mm Bu�on Head Screws for moun�ng to the seat back Available Sizes Part Number TCP505 TCP405 TCP305 TCP205 TCP105 TCP905 Size... -
Page 9: Mounting Headrest To Hardware
Mounting Headrest to Hardware Multi Axis or Link Hardware To install Multi Axis or Link Hardware to the headrest: Place the 1” ball into the designated socket in the rear of the headrest. Place the split ring around the 1” ball. Insert the three socket head screws (B) through the ring and into the threaded holes in the rear of the headrest. -
Page 10: Link Hardware
Mounting Headrest to Hardware Link Hardware There are three points of angle adjustment on the link hardware. To adjust angles (D): Lightly loosen the flat head screws. Set desired angles and re�ghten screws. Flip Down Hardware To use the flip down function (with link hardware/offset link hardware): Pull down on the red sleeve or press on the bu�on (metric) (E), the hardware will flip down. -
Page 11: Standard Straight Hardware
Mounting Headrest to Hardware Standard Straight Hardware The standard straight hardware* offers fore/aft adjustment. To adjust: Lightly loosen the socket head screws (F). Set to desired posi�on and re�ghten screws. NOTICE All headrests, aside from their standard adjustability, also offers height adjustment via the seat back mount. -
Page 12: First Time Use
First Time Use Dealer Assistance During first time use by the client, it is advised that the dealer or service technician assists and explains the configuration to the customer (the user and/or the attendant). If needed, the dealer can make final adjustments. WARNING The Tri Comfort Headrest should only be prescribed and fitted by qualified health care professionals. -
Page 13: Maintenance
Maintenance 10.0 Care and Maintenance 10.1 � Periodically check the hardware for loose screws or worn parts. � Check the headrest for any foam breakdown and/or metal coming through the foam. This could be poten�ally dangerous for the client. � To wash the headrest cover, remove the cover from the headrest. - Page 14 NOTES 11.0...
- Page 15 NOTES 11.0...
- Page 16 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P91D381 Revision Date 2019-12-17...
