CyberData 011123 Installation Quick Reference page 2

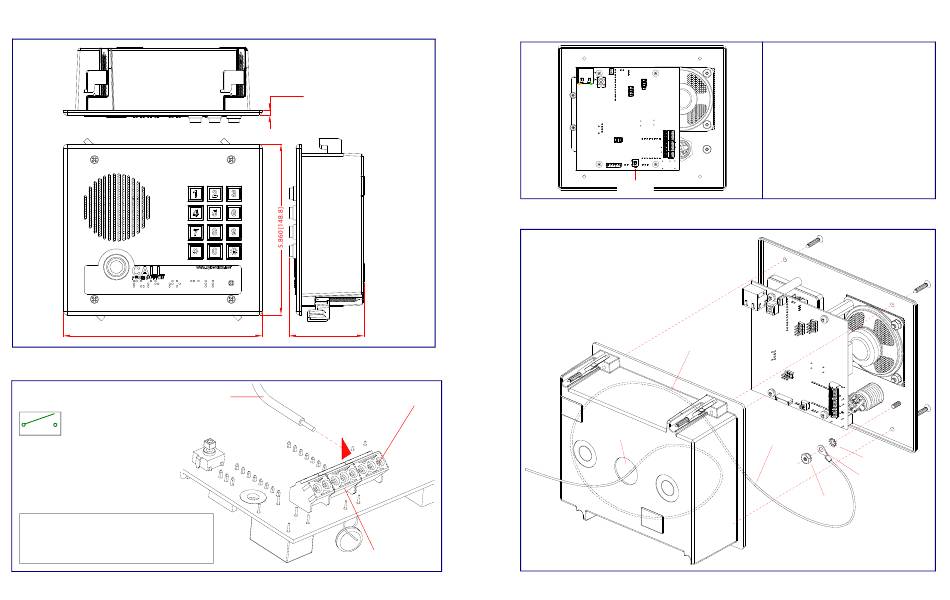

Dimensions
6.840 [173.7]
Dimensions are in Inches [Millimeter]
Terminal Block Connections
Alternate Power Input:
1 = 8 to 12 VDC at 1000 mA*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Reserved for Future Use
8 = Reserved for Future Use
*Contacts 1 and 2 on the J3 terminal block are only for
powering the Intercom from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
Intercom and void the product warranty.
© 2014, CyberData Corporation, ALL RIGHTS RESERVED
0.170 [4.3]
2.579 [65.5]
Use a 3.17 mm (1/8-inch) flat blade
Wire (IN)
screwdriver for the terminal block screws
8
J3 Terminal Block
can accept 16 AWG wire
930818D
RTFM Button
Ground Connection
1
Quick Reference Quick Reference
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
default settings.
To announce the device's current IP address:
•
Note
To restore the device to factory default settings:
•
RTFM
Create Service Loop
inside Gang Box
Ground Wire
Knock Out
(Not Provided)
930818D © 2014, CyberData Corporation, ALL RIGHTS RESERVED
Press and release the RTFM button within a five
second window.
The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
Star Washer
#6 Ring Terminal
Nut
