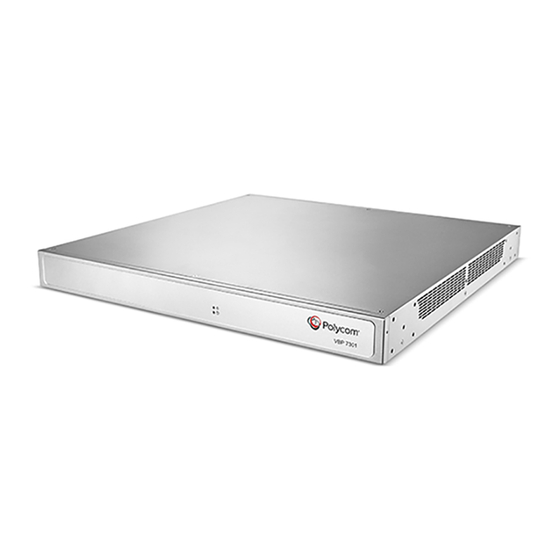

- Page 1 HARDWARE INSTALLATION GUIDE 14.1.1 | March 2015 | 3725-78313-001A ® Polycom Video Border Proxy (VBP™) 7301...
- Page 2 Polycom up to three (3) years after the distribution date of the applicable product or software at a charge not greater than the cost to Polycom of shipping or distributing the software to you. To receive software information, as well as the open source software code used in this product, contact Polycom by email at OpenSourceVideo@polycom.com.
-
Page 3: Table Of Contents
Components Polycom VBP 7301 Front Panel ..... 3 Polycom VBP 7301 Back Panel ..... 4 Polycom VBP 7301 Ethernet LEDs . -
Page 4: Components
Components This guide provides an overview of the Polycom ® VBP™ 7301 hardware components, instructions for installing the device, and compliance and certification notices. It also includes the hardware warranty. Polycom VBP 7301 Front Panel Indicator Description Power Status Green Off –... -
Page 5: Polycom Vbp 7301 Back Panel
Serial Craft Console Port 1 x RJ-45 serial craft console port for management. 9600-N-8-1 NONE for flow control. An RJ-45 to DB9 console cable is included in the box with the Polycom VBP 7301. Input Power Socket Accepts 3-pin shroud female plug for input power. -
Page 6: Polycom Vbp 7301 Ethernet Leds
Polycom VBP 7301 Hardware Installation Guide Components Polycom VBP 7301 Ethernet LEDs Label Color Indication Status ACT/Link Green Ethernet port is receiving power. Good link between the Ethernet port and the connected switch. The adapter and switch are not receiving power. -
Page 7: Serial Craft Console Port Cable Pinout
Polycom VBP 7301 Hardware Installation Guide Serial Craft Console Port Cable Pinout The Polycom VBP 7301 is shipped with an RJ-45 to DB-9 cable (see example below) for connecting the RJ-45 serial craft console port to a computer to perform advanced configuration and debugging. - Page 8 Polycom VBP 7301 Hardware Installation Guide Components Power 100/240v VAC - auto-selecting, 50 to 60 Hz - 200W MAX AC Input - BTU/h = 682 Warranty 3 Years Environmental Operating Temperature: 0° to 40°C Requirement Relative Humidity 10% to 90%, non-condensing...
-
Page 9: Physical Installation
Desktop, Shelf, or Tray Installation Remove the Polycom VBP 7301 and accessories from the shipping container. Place the Polycom VBP 7301 on a flat, dry surface such as a desktop, shelf, or tray. © 2015 Polycom, Inc. All Rights Reserved. -
Page 10: Rack-Mount Installation
Polycom VBP 7301 Hardware Installation Guide Rack-Mount Installation You can install the Polycom VBP 7301 in a 19” rack using the rack mount kit supplied with the product. Note Important Before installing the device in a rack, take note of the following conditions: Elevated Operating Ambient—If installed in a closed or multi-unit rack... -
Page 11: Connecting The Power And Cables
Physical Installation Polycom VBP 7301 Hardware Installation Guide Connecting the Power and Cables The Polycom VBP 7301 comes with an AC power cord for connecting the unit to the AC outlet. Warning Warning Always connect the AC power cord to an AC outlet suitable for the power supply per the Power specifications listed in this document in order to reduce the risk of damage to the 7301 power supply. - Page 12 Polycom VBP 7301 Hardware Installation Guide Enter the following credentials: Username: admin Password: default Click Login. The password change window opens. Enter credentials that meet the guidelines listed in red and click Change Password. When prompted, click the link to log on with your new password.
- Page 13 Physical Installation Polycom VBP 7301 Hardware Installation Guide Enter your new password and click Login. The Polycom VBP 7301 Admin page opens. Configure Network parameters and other settings for your Polycom VBP 7301 using the instructions in the Polycom ®...
-
Page 14: Compliance And Certifications
In accordance with Part 15 of the FCC rules, the user is cautioned that any changes or modifications not expressly approved by Polycom, Inc. could void the user's authority to operate this equipment. The socket outlet to which this apparatus is connected must be installed near the equipment and must always be readily accessible. - Page 15 Polycom VBP 7301 Hardware Installation Guide Part 15 FCC Rules This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
-
Page 16: Class A Statements
Polycom VBP 7301 Hardware Installation Guide Compliance and Certifications The FCC number is formatted as US:AAAEQ#TXXX. # is the Ringer Equivalence Number without a decimal point (e.g. REN of 1.0 will be shown as 10, REN of 0.3 will be shown as 03). In the case of a Z ringer, ZZ shall appear. -
Page 17: Eea Regulatory Notices
[Estonian]: 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Español Por medio de la presente Polycom declara que el Polycom VBP 7301 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la [Spanish]: Directiva 1999/5/CE. -
Page 18: Restriction Of Hazardous Substances Directive (Rohs)
övriga relevanta bestämmelser som framgår av [Swedish]: direktiv 1999/5/EG. Íslenska Hér með lýsir Polycom yfir því að Polycom VBP 7301 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC (Icelandic): Norsk Polycom erklærer herved at utstyret Polycom VBP 7301 er i samsvar med de... -
Page 19: Licensing And Warranty Information
Licensing and Warranty Information Hardware Warranty For a period of three (3) years after shipment of the Product, Polycom warrants that such Hardware will substantially conform to Polycom’s published specifications for such Hardware on the date of order if properly used in accordance with procedures described in the documentation supplied by Polycom.
