AIR INLET RUN TIMER

The air inlet run timer establishes the period of
time that the actuator motor operates when
opening or closing the air inlet baffle board.
The air inlet run timer is adjusted in 1 second
increments from a minimum setting of 1 second
Run Time
to a maximum setting of 60 seconds.
Adjusting the air inlet run timer:
•
rotate the Selector dial to position (12);
•
rapidly rotate the Adjustor dial back and
forth to enter secondary function mode;
•

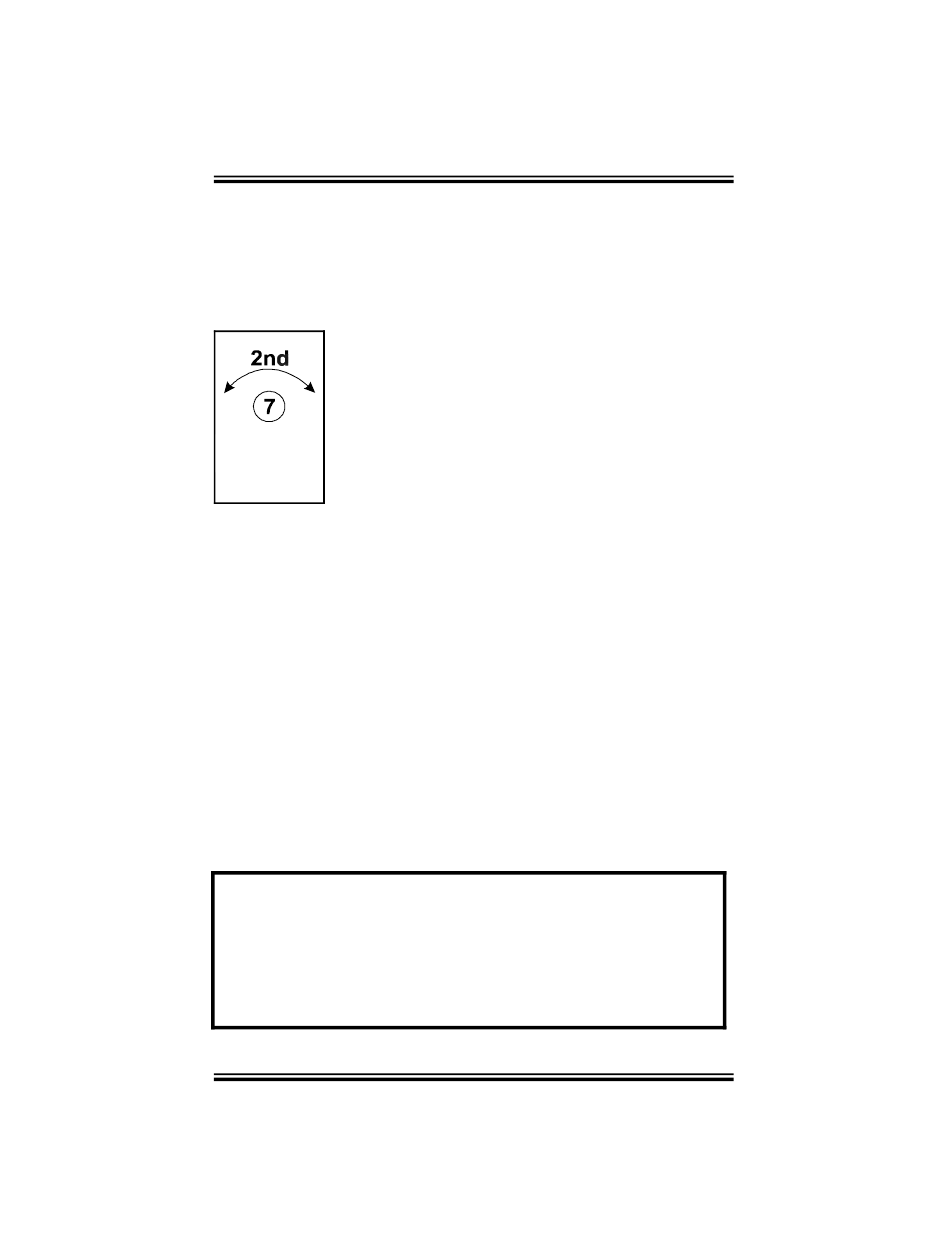

rotate the Selector dial to position (7);
rotate the Adjustor dial counterclockwise to
decrease the air inlet run timer, clockwise to
increase it.
The run timer setting is displayed on the front
panel.
Example:
The air inlet run timer is set to 30 seconds. When the
actuator motor is called upon to either open or close
the air inlet baffle board, the delay timer as set by the
secondary function (8) must have expired. At this point,
the actuator motor will operate for 30 seconds before
stopping.
