Fan 1 Motor - Varifan ECS-4+ User Manual

ECS-4+
The Fan 1 motor compatibility setting adjusts
the control panel outputs to the electrical
characteristics of the fan motor. Six choices are
available.
Using the compatibility table in the Appendix,
find the model number of your fan motor and
Motor
take note of the fan motor compatibility number.
Contact your local distributor if your model of
fan is not listed.

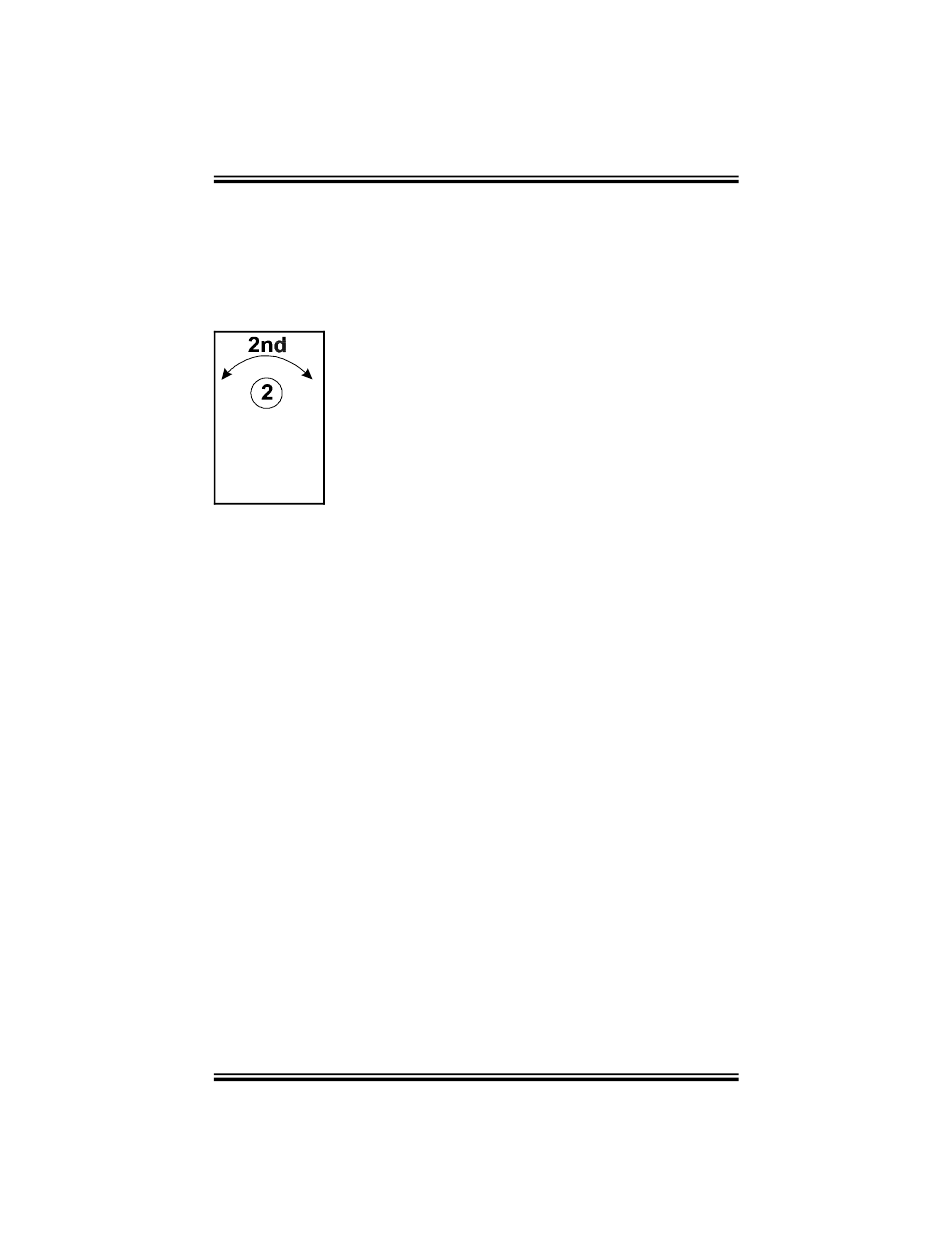

Setting the Fan 1 motor compatibility:
•
rotate the Selector dial to position (12);
•
rapidly rotate the Adjustor dial back and
forth to enter secondary function mode;
•
rotate the Selector dial to position (2);
•
rotate the Adjustor dial to select a motor
setting.
The Fan 1 motor compatibility setting is
displayed on the front panel.
Page 34
www.monitrol.com

FAN 1 MOTOR
