SHOWER/HAND SHOWER TRIM
MODEL: 0142-05-L/HDHSB-TRM
INSTALLATION GUIDE

FEATURE HIGHLIGHTS

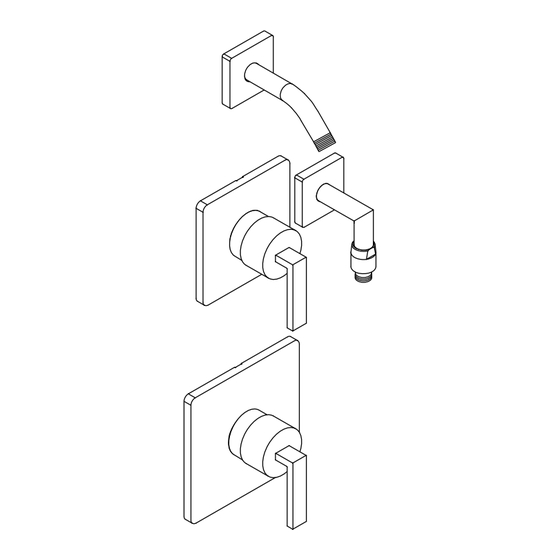

Shower/Hand Shower Trim shall include metal lever handles, shower arm with decorative flange, hand shower coupling
with flange and in-line vacuum breaker.
Shower/Hand Shower Trim shall be metal construction plated in standard polished chrome finish.

COMPLIANCE

ASME A112.18.1/CSA B125.1
ASSE 1014 (in-line vacuum breaker for back flow protection)

WARRANTY

5 Years - for industrial/commercial installations.
Refer to symmons.com/warranty for complete warranty information.

DIMENSIONS

PIPING AND
FITTINGS ARE
NOT SUPPLIED
REF.
10"
(254mm)
3-1/2"
(89mm)
REF.
77"
(1956mm)
REF.
42"
(1067mm)
Note: Dimensions subject to change without notice.
4-15/16"
(125mm)
WALL SHOWN FOR
REFERENCE ONLY
3-11/16"
(94mm)
3-1/8"
(79mm)
ROUGH-IN
2-3/8" ± 1/2"
(60mm ± 13mm)
FLOOR
Sq. 2-1/2"
(64mm)
Sq. 2-1/2"
(64mm)
Sq. 5"
(127mm)
3-3/8"
(86mm)
REF.
2"
(51mm)
Sq. 6-1/4"
(159mm)
