TUB/SHOWER TRIM
MODEL: 0142-02-L/HD-SS-TRM
INSTALLATION GUIDE
FEATURE HIGHLIGHTS
Tub/Shower Trim shall include metal lever handle, shower arm with decorative flange and diverter tub spout.
Tub/Shower Trim shall be metal construction plated in standard polished chrome finish.
COMPLIANCE
•
ASME A112.18.1/CSA B125.1
WARRANTY
5 Years - for industrial/commercial installations.
Refer to symmons.com/warranty for complete warranty information.

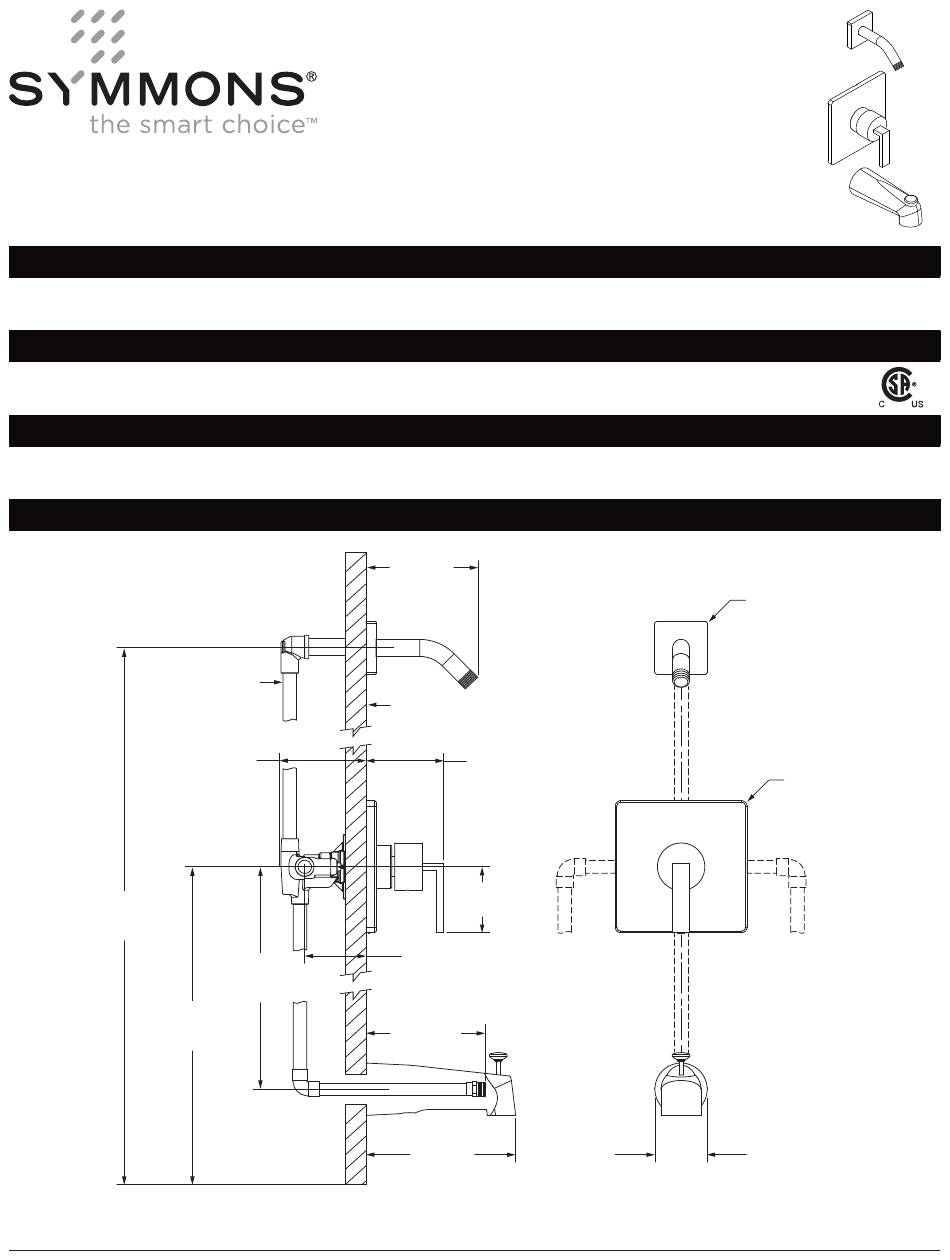

DIMENSIONS
PIPING AND
FITTINGS ARE
NOT SUPPLIED
REF.
77"
(1956mm)
REF.
32"
(813mm)
Note: Dimensions subject to change without notice.
3-1/2"
(89mm)
REF.
12"
(305mm)
FLOOR
4-15/16"
(125mm)
WALL SHOWN FOR
REFERENCE ONLY
3-11/16"
(94mm)
3-1/8"
(79mm)
ROUGH-IN
2-3/8" ± 1/2"
(60mm ± 13mm)
1/2-14 NPT
5-5/8"
(143mm)
7"
Ø 2-1/2"
(178mm)
(64mm)
Sq. 2-1/2"
(64mm)
Sq. 6-1/4"
(159mm)
