SHOWER TRIM
MODEL: 0142-01-L/HD-TRM
INSTALLATION GUIDE
FEATURE HIGHLIGHTS

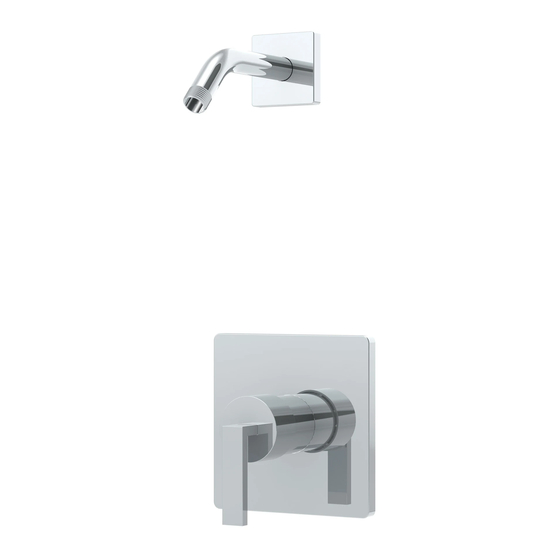

Shower Trim shall include metal lever handle and shower arm with decorative flange.
Shower Trim shall be metal construction plated in standard polished chrome finish.
COMPLIANCE
•
ASME A112.18.1/CSA B125.1
WARRANTY
5 Years - for industrial/commercial installations.
Refer to symmons.com/warranty for complete warranty information.
DIMENSIONS
SHOWER SUPPLY
(PIPE AND FITTINGS
NOT SUPPLIED)
REF.
77"
(1956mm)
REF.
42"
(1067mm)
Note: Dimensions subject to change without notice.
3-1/2"
(89mm)
FLOOR
4-15/16"
(125mm)
3-11/16"
(94mm)
3-1/8"
(79mm)
ROUGH-IN
2-3/8" ± 1/2"
(60mm ± 13mm)
WALL SHOWN FOR
REFERENCE ONLY
Sq. 2-1/2"
(64mm)
Sq. 6-1/4"
(159mm)
